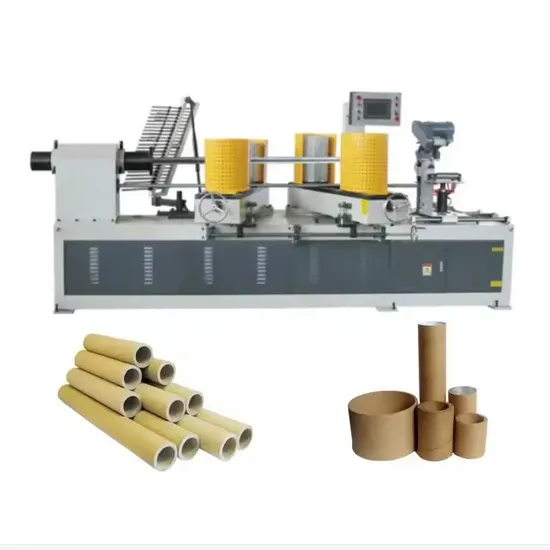

Toilet Paper Tube Making Machine for Sale in South Africa Manufacturing Machine Toilet Paper Core Making Machine
Basic Info.
Model NO.
200
Paper Core Usage
Paintings Packaging
Tube Machine Type
Bending Machine
Gumming Type
Double Side
Layers of Roll Paper
3-25
Reelpipe Speed
0-25m/Min
Wall Thickness of Paper Tube
1-15mm
Certification
CE
Condition
New
After-sales Service
Service Machinery Overseas
Name
Paper Tube Making Machine
Key
Paper Tube
Voltage
220V/380V/440V
Speed
0-25m/Min
Transport Package
Film Packaging
Specification
200
Trademark
QH pack
Origin
Cangzhou City, Hebei Province
HS Code
84393000
Product Description
Packaging & ShippingProduct Description
Main specifications and equipment | |||
| Paper tube machine model | QHJG-200type four noses CNC paper tube machine | ||
| Technical parameter | Control system | ||
| Roll tube paper layer | 3-25 layers | PLC controller | Professional products |
| Paper tube diameter | 30-200 (mm) | HMI | Professional products |
| Paper tube thickness | 1-15 (mm) | Program Version | CX-P 9.04 |
| Tube speed | 0-25 (m / min) | Inverter | An Rui Ji products |
| Fixed-length mode | CNC (light control) | Intermediate relay / contactor | Chint |
| Winding machine head | No resistance four machine head | Signal element (proximity switch, etc.) | Times Funing brand / Shanghai workers |
| Cutting method | Single round knife automatic tracking cutting | Cylinder components | suopai/tian ao brand |
| Core mold fixed way | Flange plus tight | Synchronous control | X-axis servo ball screw |
| Glue way | Double-sided adhesive | Synchronous tracking tube cutting system | Orion servo motor |
| control method | Frequency | Cutter lift | suopai/tian ao aerodynamic |
| Input voltage | 380V / 220V | Emergency stop button | Jiangyin Yangtze River brand |
| Number of operators | 1-3 people | Configuration device | |
| Size (mm) | Drop tube rack | automatic | |
| Host Size: L * W * H | 2900mm*1700mm*1900mm | Belt adjustment | Manual |
| Land area: length * width | 20000mm*9000mm | For glue | Automatic stainless steel heating plastic tank |
| Hub diameter | 294mm | Tape for lubrication oil | Automatic lubrication of stainless steel basin |
| Hub height | 360mm430mm | Tension adjustment | Mechanical adjustment |
| Minimum track | 1000mm | Paper holder type | Right-angle fixed lifting on the paper holder |
| The maximum track | 1250mm | Roll mandrel | 1 |
| total weight | 4500kg | Roll tube belt | 1 article |
| Drive system | Applications | Have | |
| monitor rate | 15kw Shanghai strong speed | Bottom, surface paper device | Stainless steel paper holder, paper cone |
| Host speed | 1400r / min | Under the rack | Stainless steel plate |
| The maximum wheel speed | 62r / min | Host | Stainless steel countertops |
| Hub output torque | 8500NM | Paper guide | stainless steel pipe |
| Reducer models | WPO155 Hangzhou Xiaoshan | ||
| Transmission | Automotive gearbox | ||
| Linear Guides | Taiwan silver products | ||
| Ball screw | Taiwan TBI | ||
| Drive chain model | 12A × 2 | ||
| Wheel drive | four-wheel drive | ||
| Cutter motor | 0.4kw gear motor, Shanghai Ott | ||
| Bearing | Universal bearings | ||
| Note: due to the continuous update of the product technology, all data to the product sample! | |||
