2.5ton Konecranes European Low-Headroom Type Electric Chain Hoist for Lifting Materials

Product Description

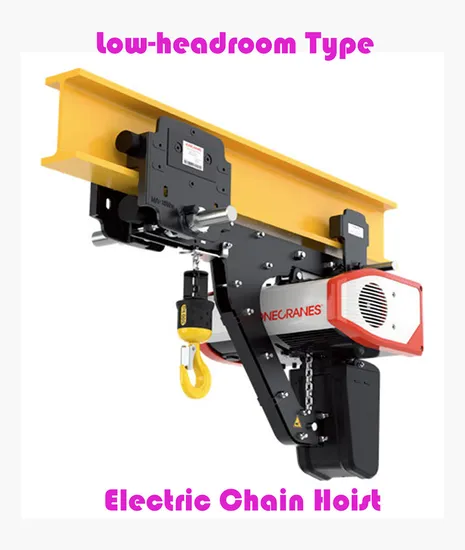

Konecranes Low-headroom Type Electric Chain Hoist
The low-headroom hoist is a special type of lifting equipment, mainly used for hoisting heavy objects in environments where the space height is limited.


Compact Layout
Adjustment of Component Positions: The positions of components such as the electric trolley and the motor are specially designed. For example, they are shifted to the sides to free up sufficient space directly below, reducing the overall vertical space occupied by the hoist. Integrated Design: The main components of the hoisting mechanism, such as the sprocket and the chain guide frame, are directly installed between the side plates of the running trolley, integrating the running trolley and the hoisting mechanism into a whole, resulting in a more compact structure.
Performance Wide Lifting Capacity Range: Ranging from 63 kg to 2500 kg, it can meet the lifting requirements of different scales. There are various lifting speeds, with double-speed or frequency conversion control. The duty cycle can reach 60%, enabling continuous operation. It can work within the temperature range of -20°C to +40°C, and can reach even higher temperatures under special configurations.

Safety Assurance Reliable Braking System: It is equipped with a self-adjusting brake that can quickly stop in emergency situations. There are also a friction clutch for overload protection and limit switches to ensure safety.
Operation and Control Convenient Operation: The operation is simple and it can be controlled by a pendant control or a remote control. The hook is ergonomically designed with an anti-slip coating.
Rich Certifications Konecranes hoist has passed certifications such as CE and RoHS. It won the Fennia IPR Excellent Design Award in Finland in 2020.

Main Models

Lifting Weight	Model	working level Fem/Iso	Lifting speed m/min	number of chains
125kg	C02 P 08 1 012 6	M6	8/2	1
250kg	C02 P 08 1 025 5	M5	8/2	1
500kg	C05 P 08 1 050 5	M5	8/2	1
1 ton	C10 P 08 1 100 5	M5	8/2	1
2 ton	C10 P 04 2 200 5	M5	4/1	2
2.5 ton	C10 P 04 2 250 4	M4	4/1	2
