Automatic Feeding CNC Traveling Head Die Cutting Machine for Shoes, Football

Product Description

Die cutting machine

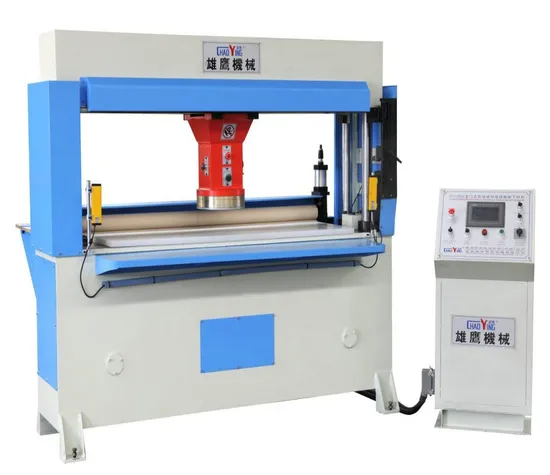

CNC traveling head die cutting machine
Use and character
The machine is suitable for continuously cutting large batch of regular (or of the same specification) nonmetal rolled materials by forming cutter. It is especially suitable for such industries as sports articles (balls), sand paper, medicine and etc. It is desighed by ourself. We own its patent right, its no is ZL200720043818.7
1. The mechanism of double oil cylinder, gantry type guiding and precise four-column automatic balancing connection rod can guarantee the same cutting depth of each cutting position.
2. The precise lead screw driving unit is adopted for accurate movement and positioning and stable operation.
3. The rubber roller pneumatic material pressing or manual material pressing is adopted. The computer can automatically control the transverse movement distance of cutting head and the feeding distance of pressing roller.
4. The machine has special cutting modes such as automatic stagger and stagger blade reducing, which can reduce consumption and save raw materials.
5. The machine has two working ways such as semi-automatic and full-automatic operations. The workers need only to pick up the finished materials, with labor intensity reduced and work efficiency enhanced.
Machine working video : http://ycxyjx.en.made-in-china.com
Technical specification

Maximum momentum	250kN
Seissor speed	0.12m/s
Stroke adjustment	0- 120mm
Range between the working tables	30- 150mm
Transverse movement speed of punching head	50- 250mm/s
Feeding speed	20- 90mm/s
Size of the upper pressing board	D300mm
Size of the pressing board	1600× 500mm
Motor power	3kW
Package dimension	2240× 1180×2080mm
Net weight	2300kgs
Gross weight :	2500kgs
The guarantee period	one year
The MOQ	ONE SET
Machine logo	CHAOYING
OEM	Welcomed

Processing workshop
company
client
why choose us?
1.Our company is specialized in all kinds of hydraulic cutting machine for more than 20 years.
2.We are manufacture,not trading company,competitve price.
3.Strict quality control,each machine must test 10-12 hours before leaving factory.
4.One years guarantee,support online ,video,email,within 8 hours to reply to after-sales question.
