Horizontal Steel Wire Braiding Machine for Hydraulic Hose

Product Description

Horizontal Steel Wire Braiding Machine for Hydraulic Hose
Product description
Stainless steel sleeve braiding machine
Flexible Hose Braiding Machine
The wire braiding machines we can make as follows:
braiding machine Wire diameter: 0.3mm to 0.8mm
No.of spindles:16 to 156 spindle braiding machine
ID of the braids:4mm to 600mm
Material of wires:stainless steel,galvanized carbon steel, copper wire.
Our braiding machines are horizontal types that enable heavy tensile strength.

single decker Wire Braiding Machine Type No. Braid ID (mm) rotation speed of spindle r/min braiding angle Pitch(mm) pulling speed (m/h) no.of carriers Motor power(KW) BG-16 4-10 24.8 54°44' 9-22 13-33 16 Y132M1-6 4.0KW BG-20 6--13 19.8 54°44' 13-29 15-34.5 20 Y132M1-6 4.0KW BG-24 10--31 14.25 54°44' 22--69 21--66 24 Y132M1-6 4.0KW BG-36 15--45 10 54°44' 33--100 22--66 36 Y132M1-6 5.5KW BG-48 30--75 7.25 54°44' 66--166 29--72 48 Y132M1-6 7.5KW BG-64 51--110 4.56 54°44' 67--240 18.6--102 64 Y160L-6 11KW BG-72 80--150 4.25 54°44' 170--330 44--83 72 Y160L-6 11KW BG-96 150--400 2.75 54°44' 240--750 50--120 96 Y160L-6 11KW

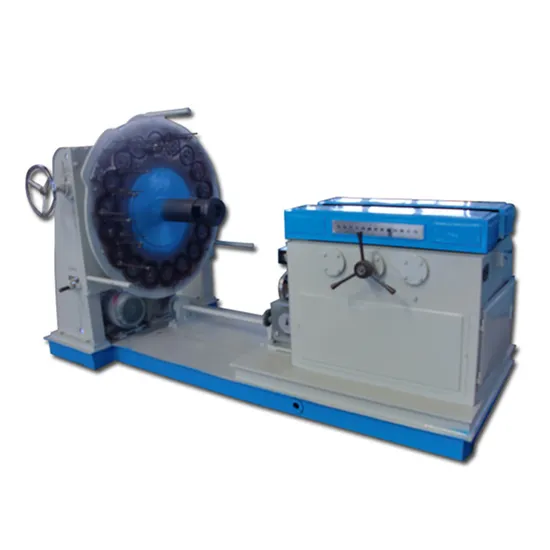

Single decker wire braiding machine
48 Single decker wire braiding machine
Braiding diameter (mm): 30-75
Carrier rotation speed (r/min): 7.25
Braiding angle: 54°44"
Braiding pitch (mm): 66-166
Pulling speed (M/H): 29-72
Carrier NO.: 48
Dimension (L*W*H): 3850*1900*2150
Weight (KG): 4000kg
96 Double decker wire braiding machine
Braiding diameter (mm): 150-400
Carrier rotation speed (r/min): 2.75
Braiding angle: 54°44"
Braiding pitch (mm): 240-750
Pulling speed (M/H): 50-120
Carrier NO.: 96
Dimension (L*W*H): 5770*3360*3600
Weight (KG): 17500kg
Double decker wire braiding machine

Type No.	Braid ID (mm)	rotation speed of spindle r/min	braiding angle	Pitch(mm)	pulling speed (m/h)	no.of carriers	Motor power(KW)
BG-2S16	4-10	24.8	54°44'	9-22	13-33	32	Y132M1-6 5.5KW
BG-2S20	6--13	19.8	54°44'	13-29	15-34.5	40	Y132M1-6 5.5KW
BG-2S24	10--31	14.25	54°44'	22--69	21--66	48	Y132M1-6 5.5KW
BG-2S36	15--45	10	54°44'	33--100	22--66	72	Y132M1-6 6.0KW
BG-2S48	30--75	7.25	54°44'	66--166	29--72	96	Y132M1-6 9.5KW

Double decker wire braiding machine
48 Double decker wire braiding machine
Braiding diameter (mm): 30-75
Carrier rotation speed (r/min): 7.25
Braiding angle: 54°44"
Braiding pitch (mm): 66-166
Pulling speed (M/H): 29-72
Carrier NO.: 48
Dimension (L*W*H): 3850*1900*2150
Weight (KG): 4000kg
Wire braiding machine with sound proof
Soundproof cover can reduce the noise of the machine, this machine should be customized.
Detailed Images
Finished products of wire braiding machine
Our braiding machine can be widely used for braiding hoses and metal hoses
wire braids for rubber hose wire braids only wire braids for metal hose
Related machine-Rewinding machine
18-ly Rewinding machine
Winding diameter(mm): 2-18
Rotation speed (r/min): 180-570
Wire diameter(mm): 0.25-0.5
Winding speed(m/min): 50
Dimension (pay-off rack): 2700*1350*2000mm
Dimension (winder): 1510*1240*1500mm
Weight (KG): 1300
Rewinding machine with sound proof
Soundproof cover can reduce the noise of the machine, this machine should be customized.
Our customer
Customers ' trainning in our factory After-sale service
Parts of machine
We also supply related parts of braiding machine,such as Spindle,Carrier,Caterpillar and bobbiins. The details are as follows:
Spindle&Carrier of wire braiding machine
service life :1-3 year, can replace some spare parts.
Caterpillar of braiding machine
Name: Caterpillar
Brand: HLT
Original: China
Domestic famous engines, strong driving force, low electrica consumption, high economic benefits
Bobbin of wire braiding machine
Length of bobbin:170mm If you want to use bobbin on 156 carriers wire braiding machine, the length of bobbin should be 210mm
Certification
Package & Delivery
We have professional domestic inland transportation team for Stainless steel sleeve braiding machine
Company information
We are professional manufacturer of steel wire braiding machines with more than 35 years of history. Our machines are widely used in many industries: rubber hose, cable, and stainless steel metal hose manufacturing. The sizes cover 16 carriers from 128 carrier braiding machine, the wire diameter starts from 0.2 till 1.0mm. Our braiding machines are horizontal types that enable heavy tensile strength.
Our service
The warranty period of one year
Standard seaworthy package
Engineers available to service machinery overseas
FAQ for Steel Wire Braiding Machine
1. Why choose us as your supplier?
We are most professional in steel wire braiding machine with more than 30
years of experience
2. What wires can you machine braid?
A. Stainless steel wire
B. Copper lad steel wire
C. Copper wire
3. What application of your braiding machine?
Popular for both rubber hose and metal hose manufacturing
We need to know the following information to quote your correct machinery:
1. What outer diameter of the hose you want to braid?
2. Structure of the braid?
How many carriers/bobbins you need for braiding your hose? For instance, 24, 36,64,72,96,128 carrier, etc.
