Hot Sale Rigid Tapping Vertical Machining Center Milling Machine Vmc650

Product Description

Product Description

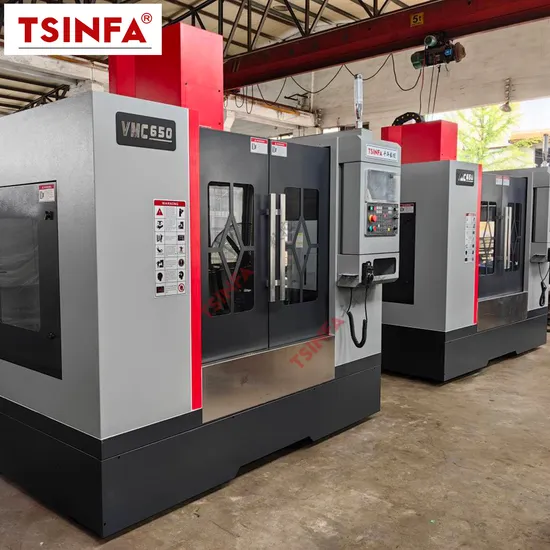

VMC650 CNC VERTICAL MACHINING CENTER
CNC machine tool structure and shape optimization design, compact, reasonable, rigid strengthening.
Can be achieved for a variety of plate, plate and shell, complex parts, such as CAM, mold processing,
Can complete drilling, milling, tapping and other processes, is suitable for batch production of products,
Can meet the drilling, tapping, milling process of small and medium-sized workpiece processing.

1. High-precision castings, quenched to eliminate internal stress and ensure accuracy
2. CE standard electrical, neat lines, easy to troubleshoot and repair, high safety factor
3. The three-axis adopts high-precision ball screw, combined with precision nut preloading and tail pre-tensioning device to ensure that the backlash and thermal deformation of the machine are kept low for a long time.
4 . The spindle tool change mode adopts pneumatic mechanism. When the tool is used, the spindle is evenly stressed to prolong the bearing life.
5. High-precision Taiwan spindle, good stability and long life
6. Select the wiring linear guide, the brand of Taiwan silver, with high rigidity, low noise characteristics, can do rapid displacement and obtain the best cycle accuracy.
7. Fully automatic electronic lubrication system for uniform oil supply and good stability.
Product Parameters

Specification	Unit	VMC 640	VMC 650
Table size	mm	800*320	800*400
Max. table load	kg	350	400
X/Y/Z table travel	mm	600*400*450	650*400*500
Numbers,width	mm	3*14	3*16
Spindle nose to table surface	mm	130-570	130-600
Spindle center to Column surface	mm	400	470
Spindle taper		BT40	BT40
Spindle speed	r.p.m	6000 (optional:8000)	8000
Main motor	kw	3.7	5.5
Table rapid feed speed	m/min	18/18/18	24/24/20
Cutting feed speed	mm	10000	10000
Three axis servo motor torque	NM	6/6/10	6/6/10
Positioning accuracy	mm	±0.006	±0.006
Repeat position accuracy	mm	±0.005	±0.005
Net weight	kg	2500	3000
Overall dimension(L×W×H)	mm	2200*1900*2500	2200*1900*2500

Detailed Photos
Company Profile
Shandong TSINFA CNC Equipment Co., Ltd. was founded in 2005, The registered capital is 20 million yuan. The company has independent import and export rights, and obtained the European quality management council CE certification. The company is located in the south of Shandong province Mozi hometown, Beijing-Shanghai high-speed railway, Beijing-Fuzhou expressway, 104 national highway through the north and south, to the south is Weishan lake, to the north lies mount tai, convenient transportation, industrial development. As a member of China machine tool industry association (CMTBA), passed the ISO 9001:2015 quality management system certification, the company is constantly innovating in the development, relying on the strong economic strength, advanced and sophisticated professional production equipment, strong technical force, to standardize the entire operation of the enterprise management system mode. Products cover metal cutting machine and metal forming machine two categories. Metal cutting machine tools are: CNC machining center, CNC lathe, inclined bed CNC lathe, general lathe, vertical milling machine, horizontal milling machine, universal milling machine, turret milling machine, drilling and milling machine, slotting machine, gouging machine, turning milling complex machining center, etc. The equipment is exported to USA, Poland, Russia, Sri Lanka, Peru, Chile, Saudi Arabia, southeast Asia and Africa and other countries and regions. It is widely used in automobile, motorcycle, textile machinery, hardware products, 3C, construction machinery, home appliances, railway, ship, other industries. We adheres to the quality of integrity, ensures that every equipment is qualified to leave the factory, to ensure that they can do their best for employees and customers.
FAQ
Q1:How can l choose the most suitable machines ?Please tell me your specications,we can choose the best model for you,or you can choose the exact model,you can also send us the products drawing,we will choose the most suitable machines for you .Q2: What's your main products of your company?Products cover metal cutting machine and metal forming machine two categories. Metal cuttinging machine tools are: CNC machining center, CNC lathe, manual lathe, manual milling, sawing machine, etc. Metal forming machine: hydraulic press machine.Q3: Where is our factory located? How can l visit there?Our factory is located in Tengzhou City , Shandong Province, 277500 China. You are warmly welcomed to visit us.You are warmly welcomed to visit us.Q4. How do you transport it?Provide Transportation Solution DDP/CIF/FOB/FCAQ5: What's the Payment Terms ?T/T ,30% initial payment when order,70% balance payment before shipment .Q6: What's the MoQ?1 set .(Only some low cost machines will be more than 1 set )We want to know:
1. We strongly suggest you to tell us size, material of your workpiece for our evaluation if possible,
better to send us workpiece drawing, so that we can recommend you most suitable model!
2. lf need ClF Price, please kindly tell us the port of destination.
