High Quality Good Price Automatic Layer Chicken Farm

Product Description

Product Description
Weifang U-BEST ------------ One Stop Poultry Project Supplier
We supply the following systerms for Chicken Farm.

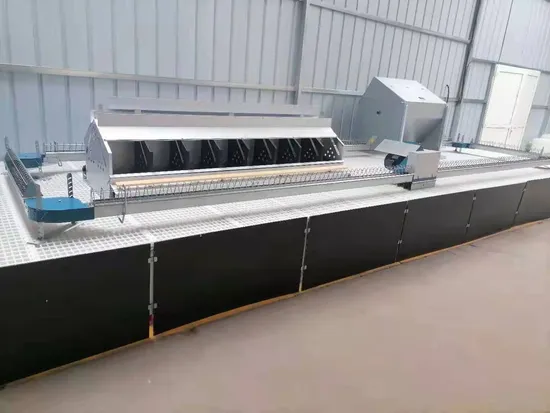

1. Feeding System The system is used to convey feed from each vice hopper into each feed pan automatically in your broiler building.
1). Vice hopper: 70Kg, 90Kg
2). Drving motor: Power: 0.75Kw/1.1Kw/1.5Kw; Voltage: 380V/220V/customized, 3-phase/1-phase;Frequency: 50Hz, AC current3). Galvanized feed pipe:
Diameter of feed pipe:Φ45mm; Material: hot-dip galvanized sheet pipe with the zinc coating amount-more than 275g/m2.
4). Helical spring auger: imported from South Africa, feeding ability:400Kg/h
5). Feed pan:Material: PP--PolypropyleneGrilles: 14/16 gridsDiameter of pan bottom-330mmNet weight: 560g~700g/pc6). Sensor:
imported from Germany, time delay range: 0-2 hours7). Lifting&suspension system:
It's very convenient to adjust the feeding line height by winch.
Nipple drinking systemThe system supplys clean water to each drinking line steadily, the water will be out easily when birds touch nipples.

1). Waterline front system: including water meter, filter, pressure regulating valve, doser. 2). Pressure regulator
3). Water pipes: Round water pipes, diameter: 25mm, material: PVC 4). Aluminum profile suspension: 5). Nipple:
a. Made of high quality plastic (outside shell) and stainless steel (inner rod), anti-corrosion, service life over 10 years.
b. Avoiding water leakage and its bad influence to chicken house.
c. Nipples is 360 degree triggering, easy to drink.
d. Meeting drinking demand of different-period chickens.
Drip cup:
Single-arm design is more suitable for modern chicken raising idea.
6). Water display level tube: Use high transparency and impact resistant material, sturdy and durable, easy to watch water level.
7). Lifting&suspension system: It's easy to adjust their height by winchs.
Ventilation systemThe system controls climate condition, provides fresh air, proper temperature and humidity for different stage chickens, ensuring your chickens provide maximum production.

Ventilation System of Fan and Air Inlet
This system controls climate conditions, fresh air, humidity and temperature in poultry shed. It is vital for growing birds, including air inlets and ventilation fan.

36" Box Fan: 20800m3/Hr, 1000×1000×450mm, 0.5kw

50" Box Fan: 43070m3/H, 1380×1380×450mm, 1.1kw

50" Butterfly Cone Fan: 1.1KW 6 fan blades, Air capacity: 49452m3/h.
Cooling pad system
When the air goes through cooling pads, the heat will be taken down by the evaporation of water, so the air will be cooled before going into your poultry farms.

Color: Brown/Black/Green/Red
Specs: Without frame: 150mm x 600mm x 1500mm/1800mm/2000mm
With frame: 150mm x 600mm x 1660mm/1960mm/2160mm
Two options for frame: aluminum alloy frame or galvanized sheet frame

Environment control systemThe system can control the temperature in your broiler building automatically by controlling ventilation fans, cooling pads, air inlets and heaters.

1). Agrologic brand (T607/T616/ImageII) or Rotem brand (AC2000) controller panel;
2). Temperature sensors, humidity sensor;
3). Power control box/electric cabinet with Chnt/Schneidar/Siemens/Fuji/ABB brands AC contactors or circuit breakers for each motor or pump;
4). Feed weighting and chicken weighting for your option.
Main feeding systemThe system is used to convey feed from silo or manpower hopper into each vice hopper of pan feedling line automatically.

1). Feed silo: 3T-20T 2). Manpower hopper: Economical substitute of feed silo, 600Kg/800Kg 3). Driving motor: Power: 0.75Kw; Voltage: 380V/220V/customized, Three-phase/Single-phase; Frequency: 50Hz 4). Main feed line: Diamater of conveying pipe: Φ75mm; Material: PVC 5). Helical spring auger: imported from South Africa; feed ability:1400Kg/h; Conveying length:60m 6). Sensor: imported from Germany


Company Profile
Weifang U-Best Husbandry Equipment Co.,Ltd:
We are professional leading manufacturer and supplier of poultry equipment in China!

Our equipment has passed ISO9001:2008 Quality Management System Certification ,CE and PC Certification By SGS/Soncap/SASO!

We have our own production line so we can control the quality very well! Our poultry equipment has been exported to more than 40 countries and have good market reputation!

We have many different project of chicken farm in Sudan, Saudi Arabia, Algeria, Nigeria, Zimbabwe, Mozambique, South Africa, Tanzania, Zambia, Philippines, Indonesia, India, Uzbekistan, Bahrain, Bangladesh, UAE, Lenanon, Palestain, Qatar, Kosovo, Pery, Columbia, Honduras, Dominica Republic, Paraguay, Ecuador, Costa Rica, Argentina, Greece, Spain, Australia and Fiji etc. .
FAQ

1. Q: I need a complete set poultry equipment, and also need a best price, what should I do?

A: pls let us know:
(1). Chicken House Size (length x width x height).
(2). If for Broiler Chicken, Quantity and Final Weight to Sell in Market.
(3). If for Breeder or Layer, Rearing Density or Target Breeder/Layer Quantity(Quantity of Female and Male).
(4). Maximum and Minimum Temperature of Farm Location.
(5). House Type: close type of two side bricks building wall with 36" fans and air inlets, or open type of using curtain in two sides.

2. Q: what's the material of feeding pan and feeding pipe?

A: the material of feeding pan is 100% PP.
the material of feeding pipe is galvanized pipe.

3. Q: how long is the life of your products?
A: more than 15 Years.

4. Q: Do you have any certificate?
A: ISO9001: 2008/CE/PC Certification By SGS/Soncap/SASO.

5. Q: Sample available?
A: yes. but the client pay for the freight fee.
