US$2,000.00-2,500.00
|
2 Pieces
(MOQ)
|
Basic Info.
Model NO.
CDD1000R, CDD1015R,CDD1500R, CDD1515R
capacity
1500kgs, 1000kgs
lifting height
865mm, 1500mm
Transport Package
1PCS/Pallet
Origin
Jiangsu, China (Mainland)
Production Capacity
1000 Pieces / Month
Packaging & Delivery
Package Size
180.00cm * 85.00cm * 21.00cm
Package Gross Weight
400.000kg

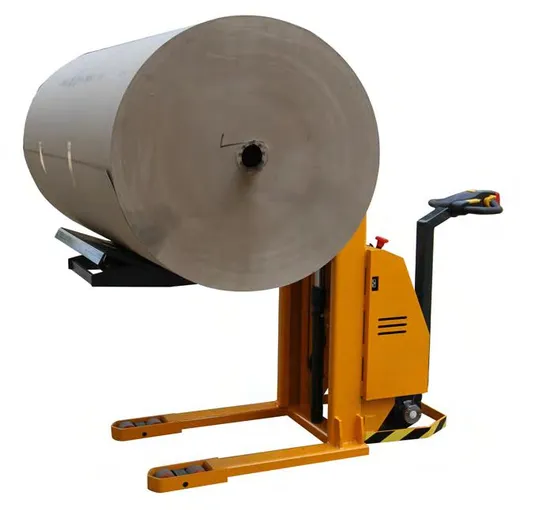

Product Description
•Capacity:1000Kg, 1500Kg.•Lifting Height:865mm, 1500mm.•This series lifters are fully automatic type ,which means electric lift and electric move .•This Roll Lifters are designed for handling Large and heavy material rolls .•Unique tray design with Electric Front Lip effectively protect rolls from rolling , especially on uneven ground , this device is essential for safety .•Structure made of high resistance steel rolled sections to ensure the highest degree of strength and durability.•Using this lifters, material damage is reduced or eliminated when moving rolls.•Customiztion for various of rolls' sizes and lifting height are acceptable.
| Model | | CDD1000R | CDD1015R | CDD1500R | CDD1515R |
| Type | | Electric Lifting & Electric Moving |
| Capacity | (kg) | 1000 | 1500 |
| Lift Height | (mm) | 865 | 1500 | 865 | 1500 |
| Roll Tray Width | (mm) | 800 | 1100 |
| Max.Roll Width | (mm) | 1550 | 1700 |
| Max.Roll Diameter | (mm) | 1000 | 1200 |
| Lifting Motor | kw | 2.2 |
| Travelling Motor | kw | 0.75 |
| Travelling Speed | km/h | 0~5 |
| Battery | Ah/V | 120/24 |
| Charger | A/V | 10/24 |
| Front Roller | mm | 78X70 |
| Drive Wheel | mm | 210X70 |
| Net Weight | (kg) | 393 | 415 | 453 | 475 |
