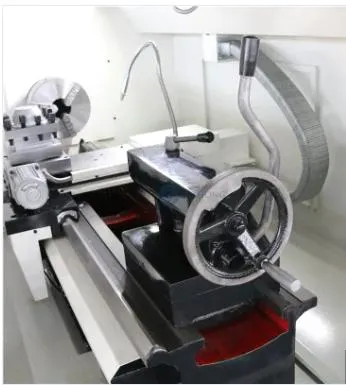

High Precision Ck61145-1000 Horizontal CNC Metal Lathe Machine
| US$22,000.00-30,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CK61145-1000
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools, Metal-Forming CNC Machine Tools
Movement Method
Point to Point Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
Economical CNC Machine Tools
Condition
New
CNC System
GSK
Four Station Tool Holder
300 Knife Holder
Precision
High Precision
Inverter
22W
Transport Package
Seaworthy Packing
Specification
2350*2350*3500mm
Trademark
JT
Origin
China
HS Code
8458110000
Production Capacity
1500 Sets/Year
Product Description
Product Parameters
| ITEM | UNIT | CK61145-1000 |
| Swing over bed | mm | 1450 |
| Servo molor | nm | 10,15 |
| Maximum rotation diameter on the tool holder | mm | 1080 |
| X middle drag board width | mm | 420 |
| Width of the upper guide ral of the bed | mm | 720 |
| Spindle end | ISO(GB)A2-11 | |
| Main spindle through-hole diameter | mm | 130 |
| Main spindle through-hole diameter | rpm | 30-84/53-150/125-350/300-835 |
| spindle | Manual Shift to Fourth Gear | |
| The mininum movement unit of the drag plate in the Z drecion | m/min | 0.001 |
| The minimum movement unit in the X-direclion of the drag board | m/min | 0.0005 |
| Z-direciion iravel of the drag plate | mm | 1000 |
| Trailer Xecirection tranvel | mm | 650 |
| X-phase positioning accuracy | mm | 0.015 |
| Z-phase posioning accuracy | mm | 0.02 |
| X-phase repeated positioning aocuracy | mm | 0.01 |
| Repetive posiioning accuracy | mm | 0.01 |
| Maximum processing length | mm | 1000 |
| Rapid mavement speed of dreg board in X/Z direciion | m/min | 6000 |
| Tail socket diameler | mm | 130 |
| Taligiocx sieeve tapered hole | MT 6# | |
| Maximum stroke of tailstock sleeve | mm | 250 |
| Main motor power | kw | 22 |
| Electric tool holder repetitive positioning accuracy | mm | 0.002 |
| Whole machine weight | kg | 6000 |
| Extemal dimensions(mm) | mm | 2350*2350 * 3500 |
