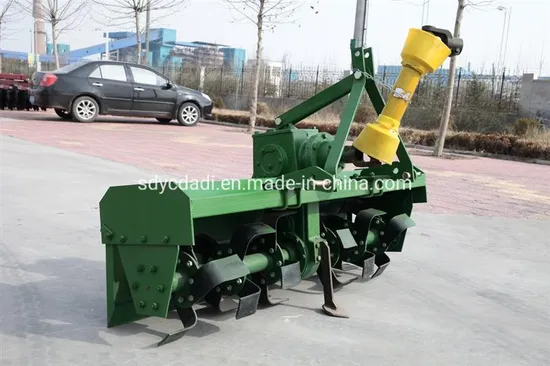

1.2m/1.6m/2m Rotary Tiller Rotovator
| US$300.00-1,200.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
1GN-120/140/160
Application Field
Agriculture, Livestock, Aquaculture, Fisheries, Forestry
Farming Policy
Dry Cultivating Machinery
Power Source
Tractor
Operation
Soil Preparation Machinery, Continuous Running Operation
Traction Type
Hanging
Drive Type
Gear Drive
Arbor Configuration
Vertical Shaft
Certification
CE
Color
Red
Warranty
One Year
Price
Best
Quality
Best
Transport Package
Iron Shellframe Box
Specification
/
Trademark
Dadi
Origin
China
HS Code
8432809000
Production Capacity
1000 Sets/Month
Product Description
1.2m/1.6m/2m Rotary tiller rotovatorMatched tractor power: 12-150 HP
Working width: 1.2-3 m
Working depth: Dry land 80~160 mm, Paddy field 100~180 mm
Rotary Tiller is driven by the tractor's out-put shaft. During operation, the soil is crumbled by the rotating and forwarding of the blades fixed on the shaft. It also can be used as shallow tilling and covering on the Stalinized soil to prevent the salt in the soil. The machine will fulfill the working of cleaning stubbles and weeds, turning and covering green fertilizer and preparing vegetable fields, etc.
After tillage, the land surface is leveling and smooth, the cover burden is closely, working efficiency is high and oil consumption is lower.
| Model | 1GN-120 | 1GN-125 | 1GN-140 | 1GN-150 | 1GN-160 |
| Working Width (cm) | 120 | 125 | 140 | 150 | 160 |
| Working Depth (cm) | Dry land 8~14, Paddy field 14~16 | ||||
| Type of Blade | IT225 | ||||
| Nos of Blade (per) | 24 | 24 | 30 | 34 | 38 |
| Overall Dimensions (L× W× H) (cm) | 90× 154× 109 | 90× 136× 109 | 90× 169× 109 | 90× 170× 109 | 90× 188× 109 |
| Total Weight (kg) | 170 | 182 | 214 | 240 | 260 |
| Rotary Speed of Tractors' PTO (rpm) | 540 | ||||
| Rotary Speed of Blade Axle (rpm) | 199 | 213 | |||
| Working Speed (km/h) | 1 ~ 3 | ||||
| Productivity (ha/h) | 0.3-0.47 | 0.3-0.47 | 0.33-0.0.5 | 0.36-0.56 | 0.38-0.62 |
| Hitch Type | three-point mounted | ||||
| Matched Power (kw) | 13.2-18.4 | 13.2~18.4 | 18.4~22 | 22~29.4 | 29.4~36.7 |
