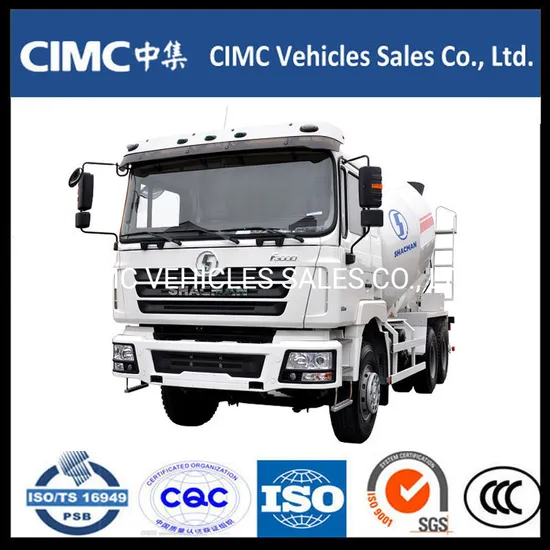

China Shacman F3000 6*4 340HP Concrete Mixer Truck

Product Description

China Shacman F3000 6*4 340HP Concrete Mixer Truck
1.Product Description:

SHACMAN F3000 6×4 CONCRETE MIXER TRUCK
Mixing drum parameter
Mixing drum material	High quality wear-resistance steel
	Model:Q345
	Drum body thickness: 5mm, End cover thickness:6mm
Agitating capacity	12M3
Drum overall dimension(with frame)	7600*2500*2850mm
Charging rate	≥3 m3/min
Top feed hopper dimension	≥650 mm
Discharging rate	≥2 m3/min
Residual rate	≤0.5%
Water supply	Baric water supply system
Water tank capacity	450L
Radiator	18L
Reduction gear	PMB7Ysp Reducer, Italy technology
Hydraulic pump	Eaton 54 America brand
Hydraulic motor	Eaton 54 America brand
Accessory	Tool box
Chassis parameter
Cab	MAN F3000 Cab Single bed Air conditioner
Dimension(Lx W xH)(mm)	10450×2500×4000mm
Total mass(kg)	25000kg
Kerb mass(kg)	14100kg
Rated mass(kg)	10770kg
Approach / departure angel	20/14
Front/rear suspension(mm)	1525/3150
Max. gradeability (%)	25
Engine brand	Weichai Engine
Engine model	WP10NG340E51, 340hp
Rated output power	250kw
Torque(N.m r. p. m)	1450N.m/1200-1500rpm
Rated speed(rpm)	1900rpm
Emission Standard	E-V
Displacement(L)	9.726L
Driving type	6×4
Axle number	3
Wheel base(mm)	4275+1400mm
Clutch	φ430 diaphragm spring
Gearbox	FAST 9JS135,9 Forward&1 Reverse,Manual
Front axle	7.5T MAN 7500kg
Rear axle	16T STR 2×16000kg
Ratio	4.8
Steering	ZF technology left-hand drive(LHD)
Tires	12.00R20,10+1pc
Tank capacity(L)	4x200+4x80
Max. speed (km/h)	77km/h

2.More Photos of Shacman Mixer Truck
3.Packing:
By Bulk
By Ro-Ro
By Frame
Container
4.Our Main Products:
Our products include full series Truck&Trailers,such as:
*Dump Truck
*Tractor Truck
*Container chassis semi-trailer series
*Cargo semi-trailer series
*Tipper semi-trailer series
*Low bed trailer series
*Liquid tanker series
*Power tank transport series
*Concrete mixer series
*LPG TANKS
.etc,and spare parts
5.Our Advantages:
(1)Products Quality Certification SGS CCC ISO
(2)Perfect after-sale service
(3)More than 20 years' experience as a manufacturer
(4)Customized products available with us
(5)Export to more than 90 countries and regions
6.FAQ
Q1: What about your products quality ?
A: Quality is our culture! "Our factory has advanced production technology and management team!
We always attach great importance to quality controlling from the very beginning!
Q 2: Can I have samples of this type of flatbed semi trailer to test the quality ?
A: Yes, you can buy any samples to test the quality,our MOQ is 1 unit.
Q 3: What others we can do ?
A: According to your order, we will provide the best price and quality trucks and trailers.
And we are well capable in offering overseas after-sales service. Besides, we also provide rational
packing and shipping program,let shipment save money and security.
Q 4: How to guarantee customers get the goods smoothly after they pay ?
A: Don't worry, dear. We have been in this field for more than 8 years, we will send you production photos once in a while, and we will help you to book the latest ship.
Q 5: What's the delivery time ?
A: The delivery time is within 30 working days after receiving your advance payment.
Q 6: Can you supply some quick-wear truck or semi trailer parts ?
A: Yes, we can supply truck and semi trailer parts as your request,such as oil filter, fuel filter, air filter, traction, traction pin, balance beam and semi-trailer plate spring, hanging accessories, turntable, all kinds of trailer brake pads, brake pan, bearings etc.
Q 7: Do you have any used truck and semi trailer for sale ?
A: We have some trucks and trailers in stock for choice, from 2010-2016 year, the price are favorable. We'll
show you our stock if you need.
Q 8: What logistics ways we can work for shipment?
A: We can ship construction machinery by various transportation tools.
(1) For 80% of our shipment, we will go by sea, to all main continents such as South America,
Middle East, Africa, Oceania etc. Either by container or RoRo/Bulk shipment.
(2) For neighborhood countries of China, such as Russia, Mongolia, Kazakhstan, Uzbekistan , Vietnam, Laos etc.,we can ship construction machinery by road or railway.
(3) For light spare parts in urgent demand, we can ship it by international courier service, such as
DHL, TNT, UPS, or Fedex.
