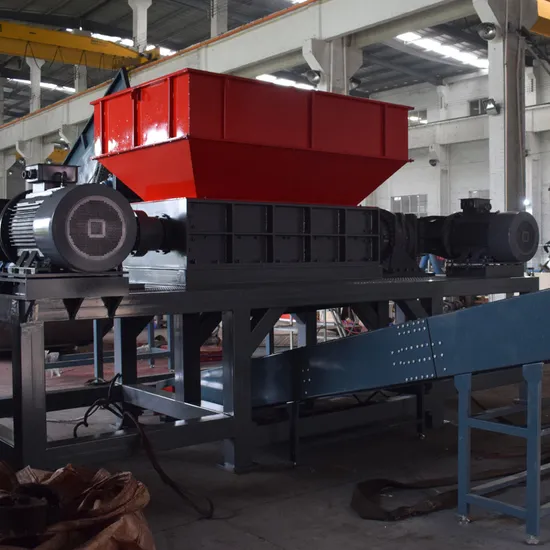

Heavy Duty Industrial Paper Cardboard Crates Mattress Wood Scrap Metal Shredder Machine

Product Description

Product Description
Product Introduction
The double-shaft shredder is a widely used and relatively extensive shredding machine, suitable for the preliminary processing of many materials. Based on the nature of the material and the required output, the power required can be initially estimated.Generally speaking,it is divided into single motor and dual motors.Single motor is suitable for fragile materials with low power requirements. Dual motors are equipped with dual reducers, and ZSY or planetary reducers can be selected according to needs.
It is characterized by fast discharging and high efficiency, which can meet general crushing needs.
HLV has designed different ranges of double-shaft shredders for common applications with different components (reducers, blade sets, etc.) to guarantee a wide range of material adaptability. At the same time, we have the ability to custom-built machines to suit specific material and input/output requirements.

This article introduces the Double shaft shredder- Dual motors.
Which Materials can be Processed?
Product Highlights
1. Shredder main body: the equipment main body uses high-quality steel plate welding, eliminate stress treatment and whole machine processing to ensure machine stability under long-time heavy load equipment stability.
2. Bearing/seal: bearing seat with detachable patent registration, can quickly remove the knife/cutter/bearings and other parts, easy to maintain and replace the knife with special sealing structure.
3. Knife: Knife material with special alloy steel forging blank, precision machining,heat treatment and cryogenic heat treatmeng times.
4. Knife shaft; Use high strength heavy duty special steel procssing refining,provide powerful power for cutting.
Technical Data Technical Parameters

Item	Name and Description	Specification
1	Model	2000-75X2
2	Application	Used cars, metal, thin steel plates,wood
3	Maximum Shredding Material	20mm thickness
4	Inlet Hopper Size( L W H)	3000mm*2200mm*1000mm(as per customer's request)
5	Shredding Chamber Size	2000mm*1600mm*820mm
6	Rotary Speed	6-12rpm/min
7	Fixed Blades Quantity	20pcs
8	Moveable Blades Quantity	20pcs
9	Diameter of Blades	700mm
10	Blade thickness	100mm
11	Blades Material	H13 / HARDOX 550 / HARD ALLOY SURFACING
12	Hardness of Blades	53-55HRC
13	Axis Material	40Cr
14	Shredding Chamber Steel Thickness	200mm
15	Shredding Chamber Material	Q235 & 45#
16	Supporting Frame Tube size	200mm*200mm*8mm
17	Main Motors	75kw*2
18	Shredding Capacity	~
19	Machine weight	37t-38t
20	Overall Dimension	6000mm*3500mm*3300mm(can design as customer request)
Others
1	Bearing Brand	China Famous
2	Electronic Components	Mitsubishi PLC and other CHNT
3	Power	As request

Product Details
Discharge Effect
Packaging & Delivery
FAQ
Q:How long is your delivery time?
A:Generally, it will be about 35-40 days after deposit, which also will affected by the actual situation of the project.
Q:What Will We Do If We Have Problems in Machine Working After We Buy the Machine?
A: HANLV has people special for after-sale service,if customers outside China have problems when machine working,just feel free to send us the picture or video to show us,we will give you solutions in 24hours.
Q:Could We Visit Your Factory and Test the Machine?
A: We warmly welcome you to visit our factory anytime,and we are very glad to test our machine with your raw material.
