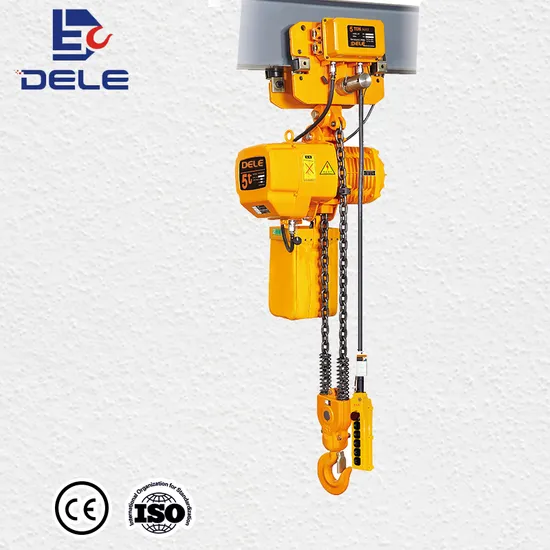

5t Trolley Type Chain Hoist Electrical Lifting Equipment
Basic Info.
Model NO.
DLXDM0502-2S
Application
Double Beam Crane, Gantry Crane, Bridge Crane, Tower Crane, Single Grinder Crane, Lifting Platform, Small Crane, Cantilever Crane
Type
Electric Hoist
Sling Type
Chain
Lift Speed
2.7m/Min
Maximum Lifting Height
3m
Chain Falls
2
Certification
CE
Condition
New
Color
Yellow
Deliverly Date
15-30days
Voltage
380V/50Hz
Capacity
5ton
Place of Oringin
Made in Zhong of China
Rotation Speed
1440r/Min
Transport Package
Wooden Case
Specification
0.5ton-35ton
Trademark
DELE
Origin
Made in Hangzhou of China
HS Code
84251900
Production Capacity
8000pieces/Per Month
Packaging & Delivery
Package Size
68.00cm * 43.00cm * 63.00cm
Package Gross Weight
330.000kg
Product Description
Clutch:As emergency overload protection, clutch will functions and motor will slip when abnormal load.Inverse phase sequence protecting device:It is the special electrical installation which control the circuit not to work in case of wiring error in the power supply.
Limit switch: The limit switch device is installed where the weight is lifted on and off to make the motor to stop automatically so as to prohibit the chains from exceeding for safety.
Side magnetic braking device: This device shall realize the instant brake in case of the power dump.
Chain: Japan FEC80 chain ultra heat-treatable steel alloy chain. Lifting height is against your requirement.
Emergency stop button: If any emergencies, press it, the motor circuit will be cut off.
Control voltage: 24V, 36V, 48V, 110V are optional, Low control voltage help to prohibit the emergencies occurring in case of hand switch leakage.
Wireless remote control, and overheat protector can be assembled.
Single speed
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Type | Trolley Motor | I-Beam(mm) | Diameter×Chain Fall | ||
| Power(Kw) | Rotation Speed(t/min) | Trolley Speed(m/min) | |||
| DLXDM00501-2S | 0.4 | 1440 | 11/21 | 58-153 | Φ6.3×1 |
| DLXDM0101-2S | 0.4 | 1440 | 11/21 | 58-153 | Φ7.1×1 |
| DLXDM0102-2S | 0.4 | 1440 | 11/21 | 58-153 | Φ6.3×2 |
| DLXDM01501-2S | 0.4 | 1440 | 11/21 | 58-153 | Φ10.0×1 |
| DLXDM0201-2S | 0.4 | 1440 | 11/21 | 82-178 | Φ10.0×1 |
| DLXDM0202-2S | 0.4 | 1440 | 11/21 | 82-178 | Φ7.1×2 |
| DLXDM02501-2S | 0.75 | 1440 | 11/21 | 82-178 | Φ11.2×1 |
| DLXDM0301-2S | 0.75 | 1440 | 11/21 | 100-178 | Φ11.2×1 |
| DLXDM0302-2S | 0.75 | 1440 | 11/21 | 100-178 | Φ10.0×2 |
| DLXDM0303-2S | 0.75 | 1440 | 11/21 | 100-178 | Φ7.1×3 |
| DLXDM0502-2S | 0.75 | 1440 | 11/21 | 100-178 | Φ11.2×2 |
| DLXDM07503-2S | 0.75 | 1440 | 11/21 | 100-178 | Φ11.2×3 |
| DLXDM07503-2SD-SD | 0.75&0.18 | 2880&720 | 5&20 | 100-178 | Φ11.2×3 |
| DLXDM1004-2S | 0.75 | 1440 | 11/21 | 150-220 | Φ11.2×4 |
| DLXDM1004-2SD-SD | 0.75&0.18 | 2880&720 | 11/21 | 150-220 | Φ11.2×4 |
| DLXDM1506-2S | 0.75×2 | 1440 | 11 | 150-220 | Φ11.2×6 |
| DLXDM1506-2SD-SD | (0.75&0.18)×2 | 2880&720 | 5&20 | 150-220 | Φ11.2×6 |
| DLXDM2008-2S | 0.75×2 | 1440 | 11 | 150-220 | Φ11.2×8 |
| DLXDM2008-2SD-SD | (0.75&0.18)×2 | 2880&720 | 5&20 | 150-220 | Φ11.2×8 |
| DLXDM2510-2S | 0.75×2 | 1440 | 11 | 150-220 | Φ11.2×10 |
| DLXDM2510-2SD-SD | (0.75&0.18)×2 | 2880&720 | 5&20 | 150-220 | Φ11.2×10 |
| DLXDM3012-2S | 0.75×2 | 1440 | 11 | 150-220 | Φ11.2×12 |
| DLXDM3012-2SD-SD | (0.75&0.18)×2 | 2880&720 | 5&20 | 150-220 | Φ11.2×12 |
| DLXDM3514-2S | 0.75×2 | 1440 | 11 | 150-220 | Φ11.2×14 |
| DLXDM3514-2SD-SD | (0.75&0.18)×2 | 2880&720 | 5&20 | 150-220 | Φ11.2×14 |
Dual speeds
| Type | Capacity(Ton) | Standard Lifting Height(m) | Lfting Speed (m/min) | Lifting Motor | ||||
| Power (Kw) | Rotation Speed(r/min) | Phases | Voltage(V) | Frequency(Hz/s) | ||||
| DLXDM00501SD-SD | 0.5 | 3 | 6.8&1.7 | 0.75 | 1440&360 | 3 | 200-600 | 50 |
| DLXDM0101SD-SD | 1 | 3 | 6.6&1.65 | 1.5 | 1440&360 | 3 | 200-600 | 50 |
| DLXDM0102SD-SD | 1 | 3 | 3.4&0.85 | 0.75 | 1440&360 | 3 | 200-600 | 50 |
| DLXDM0150SD-SD | 1.5 | 3 | 8.8&2.2 | 3.0 | 1440&360 | 3 | 200-600 | 50 |
| DLXDM0201SD-SD | 2 | 3 | 6.6&1.65 | 3.0 | 1440&360 | 3 | 200-600 | 50 |
| DLXDM0202SD-SD | 2 | 3 | 3.3&0.82 | 1.5 | 1440&360 | 3 | 200-600 | 50 |
| DLXDM0250SD-SD | 2.5 | 3 | 5.4&1.35 | 3.0 | 1440&360 | 3 | 200-600 | 50 |
| DLXDM0301SD-SD | 3 | 3 | 5.4&1.35 | 3.0 | 1440&360 | 3 | 200-600 | 50 |
| DLXDM0302SD-SD | 3 | 3 | 4.4&1.1 | 3.0 | 1440&360 | 3 | 200-600 | 50 |
| DLXDM0303SD-SD | 3 | 3 | 2.2&0.55 | 1.5 | 1440&360 | 3 | 200-600 | 50 |
| DLXDM0502SD-SD | 5 | 3 | 2.7&0.67 | 3.0 | 1440&360 | 3 | 200-600 | 50 |
| DLXDM07503-2S | 7.5 | 3 | 1.8 | 3.0 | 1440 | 3 | 200-600 | 50 |
| DLXDM07503-2SD-SD | 7.5 | 3 | 1.8&0.45 | 3.0 | 1440&360 | 3 | 200-600 | 50 |
| DLXDM1004-2S | 10 | 3 | 2.7 | 3.0×2 | 1440 | 3 | 200-600 | 50 |
| DLXDM1004-2SD-SD | 10 | 3 | 2.7&0.67 | 3.0×2 | 1440&360 | 3 | 200-600 | 50 |
| DLXDM1506-S | 15 | 3 | 1.8 | 3.0×2 | 1440 | 3 | 200-600 | 50 |
| DLXDM1506-2SD-SD | 15 | 3 | 1.8&0.45 | 3.0×2 | 1440&360 | 3 | 200-600 | 50 |
| DLXDM2008-2S | 20 | 3 | 1.4 | 3.0×2 | 1440 | 3 | 200-600 | 50 |
| DLXDM2008-2SD-SD | 20 | 3 | 1.4&0.35 | 3.0×2 | 1440&360 | 3 | 200-600 | 50 |
| DLXDM2510-2S | 25 | 3 | 1.1 | 3.0×2 | 1440 | 3 | 200-600 | 50 |
| DLXDM2510-2SD-SD | 25 | 3 | 1.1&0.28 | 3.0×2 | 1440&360 | 3 | 200-600 | 50 |
| DLXDM3012-2S | 30 | 3 | 0.9 | 3.0×2 | 1440 | 3 | 200-600 | 50 |
| DLXDM3012-2SD-SD | 30 | 3 | 0.9&0.23 | 3.0×2 | 1440&360 | 3 | 200-600 | 50 |
| DLXDM3514-2S | 35 | 3 | 0.8 | 3.0×2 | 1440 | 3 | 200-600 | 50 |
| DLXDM3514-2SD-SD | 35 | 3 | 0.8&0.2 | 3.0×2 | 1440&360 | 3 | 200-600 | 50 |
| Type | Trolley Motor | I-Beam(mm) | Diameter×Chain Fall | ||
| Power(Kw) | Rotation Speed(t/min) | Trolley Speed(m/min) | |||
| DLXDM00501SD-SD | 0.4&0.1 | 2880&720 | 5&20 | 58-153 | Φ6.3×1 |
| DLXDM0101SD-SD | 0.4&0.1 | 2880&720 | 5&20 | 58-153 | Φ7.1×1 |
| DLXDM0102SD-SD | 0.4&0.1 | 2880&720 | 5&20 | 58-153 | Φ6.3×2 |
| DLXDM01501SD-SD | 0.4&0.1 | 2880&720 | 5&20 | 58-153 | Φ10.0×1 |
| DLXDM0201SD-SD | 0.4&0.1 | 2880&720 | 5&20 | 82-178 | Φ10.0×1 |
| DLXDM0202SD-SD | 0.4&0.1 | 2880&720 | 5&20 | 82-178 | Φ7.1×2 |
| DLXDM02501SD-SD | 0.75&0.18 | 2880&720 | 5&20 | 82-178 | Φ11.2×1 |
| DLXDM0301SD-SD | 0.75&0.18 | 2880&720 | 5&20 | 100-178 | Φ11.2×1 |
| DLXDM0302SD-SD | 0.75&0.18 | 2880&720 | 5&20 | 100-178 | Φ10.0×2 |
| DLXDM0303SD-SD | 0.75&0.18 | 2880&720 | 5&20 | 100-178 | Φ7.1×3 |
| DLXDM0502SD-SD | 0.75&0.18 | 2880&720 | 5&20 | 100-178 | Φ11.2×2 |
| DLXDM07503-2S | 0.75 | 1440 | 11/21 | 100-178 | Φ11.2×3 |
| DLXDM07503-2SD-SD | 0.75&0.18 | 2880&720 | 5&20 | 100-178 | Φ11.2×3 |
| DLXDM1004-2S | 0.75 | 1440 | 11/21 | 150-220 | Φ11.2×4 |
| DLXDM1004-2SD-SD | 0.75&0.18 | 2880&720 | 11/21 | 150-220 | Φ11.2×4 |
| DLXDM1506-2S | 0.75×2 | 1440 | 11 | 150-220 | Φ11.2×6 |
| DLXDM1506-2SD-SD | (0.75&0.18)×2 | 2880&720 | 5&20 | 150-220 | Φ11.2×6 |
| DLXDM2008-2S | 0.75×2 | 1440 | 11 | 150-220 | Φ11.2×8 |
| DLXDM2008-2SD-SD | (0.75&0.18)×2 | 2880&720 | 5&20 | 150-220 | Φ11.2×8 |
| DLXDM2510-2S | 0.75×2 | 1440 | 11 | 150-220 | Φ11.2×10 |
| DLXDM2510-2SD-SD | (0.75&0.18)×2 | 2880&720 | 5&20 | 150-220 | Φ11.2×10 |
| DLXDM3012-2S | 0.75×2 | 1440 | 11 | 150-220 | Φ11.2×12 |
| DLXDM3012-2SD-SD | (0.75&0.18)×2 | 2880&720 | 5&20 | 150-220 | Φ11.2×12 |
| DLXDM3514-2S | 0.75×2 | 1440 | 11 | 150-220 | Φ11.2×14 |
| DLXDM3514-2SD-SD | (0.75&0.18)×2 | 2880&720 | 5&20 | 150-220 | Φ11.2×14 |
Certifications
Details Images
DLXDM series hoists Features
The Quality comparison of spare parts
Customized Service
Factory
Usage
Payment
Our Service
FAQ
Q1. What's information should I provide to get the price?
A:1. Chain quality? 2.the chain size? 3. the working voltage? 4. the machine frequency?
Q2. What's the lead time for regular order?
A: The normal delivery time is 60-120 days. If you have special needs or if the quantity is greater than 1 set, please explain
when making an inquiry. When we quote, we will provide you with accurate delivery time according to the actual situation.
Q3. The space of my workshop is limited, can the machine is ok for me?
A: We have been specializing in European machines for 20 years. Machines are one of the biggest features of our products.According to your needs, our designers will tailor-made products suitable for your use.
Q4.Can you provide lifting tools?
A: Yes, we can provide any type of lifting tools such as Manual chain hoists, manual lever chain hoist, electric chains
hoists,chains, slings, hooks, electromagnetics, grabs, beams, etc.non-standard fixtures, etc... Welcome to consult
Q5. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q6. Are there any professional technicians to assist our installation?
A: Yes. We have a professional installation team, who has already been to many countries to assist the installation. If you need our technicians to offer this service, please let us know in advance. So that we can arrange the suitable technicians to your country.
Q7. How do you ship the goods and how long does it take to arrive?
A: Small products can be transported by air, and large products can be transported by sea. According to different countries and regions, the specific time will be confirmed according to the actual situation.
Q8. What is your terms of payment?
A: Payment<=1000usd, 100="">=1000USD, 30% T/T in advance ,balance before shipment. We'll show you the photos or videos of the products and packages before you pay the balance.
Q9. What is your terms of packing?
A: Generally, we pack our goods in neutral wooden boxes. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters. There is no package of big machines,there are just protective covers.
Q10. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q11. How to proceed an order for hoist?
A: Firstly let us know your requirements or application:Hoists capacity, chains length and others? Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.
Q12. Do you offer guarantee for the products?
A: Yes, we offer 1-3 years warranty to our products.
