Small Low Price Waste Mobile Plastic Bottles/Metal/Rubber Products Shredder Crusher Machine Scrap Wood/Glass Paper Metal Grinder Machinery

Product Description

Application

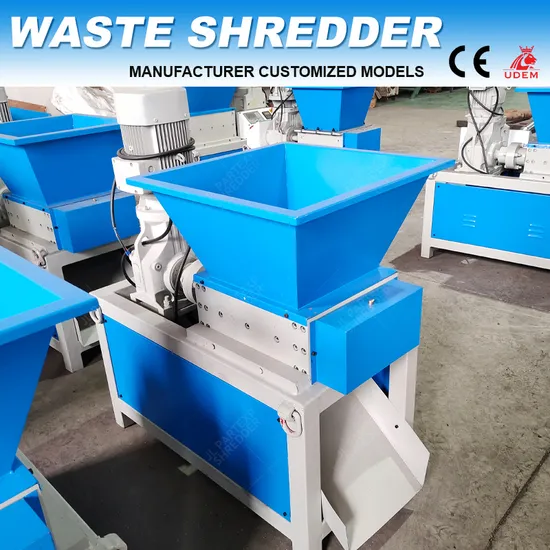

This is an ultra-small waste shredder, used for shredding small waste items such as plastic bottles, cans, food cans, etc.
It is suitable for being placed in a small warehouse or even on transportation such as ships and cars.
The size can be customized by contacting customer service
Product Configuration
1.The tool is produced by the company independently. The diameter, thickness, knife and tool material of the tool can be designed according to customer needs to meet the customer's use needs.
2.The hexagonal shaft and unique design make it easier to disassemble and replace the tool.
The heavy moving knife has high crushing power. The knife is made of special steel through forging and processing. It is strong and has a long service life.
The equipment has the characteristics of low speed, high torque, low noise and less dust.
3.It adopts microcomputer (PC) automatic control, with start, stop, reverse and overload automatic reverse control functions.
4.The fuselage is welded with high-strength steel plates, which can resist high torque and is strong and durable.
The bearing seat adopts a spliced and easy-to-disassemble type, which can quickly remove the moving knife, fixed knife, bearing and other components, easy to maintain and replace the tool, and the unique sealing structure effectively blocks the contact between the crushed object and grease, and can also protect the bearings and gears when handling liquid materials.

Tell us the material you want to shred, your production capacity, and the size of your site, and we will customize the shredder model for you!!
We can customize the conveyor belt according to the shredding material and production capacity to improve efficiency and save time and effort!!

model	Cutting chamber	Blade diameter(mm)	Blade thickness(mm)	Number of blades	motor	Blade material
JL-500	500*500mm	250mm	20mm	25pcs	7.5KW+7.5KW	9CrSi/SKD11/D2
JL-600	600*400mm	200mm	20mm	30pcs	11KW+11KW	9CrSi/SKD11/D2
JL-800	800*600mm	300mm	20mm	40pcs	18.5KW+18.5KW	9CrSi/SKD11/D2
JL-1000	1000*600mm	300mm	20mm	50pcs	22KW+22KW	9CrSi/SKD11/D2
JL-1200	1200*600mm	300mm	30mm	40pcs	30KW+30KW	9CrSi/SKD11/D2
JL-1200	1200*800mm	400mm	50mm	24pcs	30KW+30KW	9CrSi/SKD11/D2
JL-1600	1600*1000mm	500mm	50mm	32pcs	45KW+45KW	9CrSi/SKD11/D2
JL-1800	1800*1200mm	600mm	60mm	30pcs	55KW+55KW	9CrSi/SKD11/D2
In order to better give you professional answers, when sending the inquiry, please describe your parameters or technical requirements (such as: processing materials,output size,capacity,Capacity requirements,etc.) and attach your contact information(such as phone number,e-mail,facebook,whatsapp,wechat,etc.)

Factory Introduction
CE Certified
Professional Shredder Manufacturer
We are a collection of scientific and technological research and production company,specialize in shredder machine ,import and export business the professional manufacturer.
Our main products:Single shaft shredder machine,small shredder,Double shaft shredder,kitchen waste shredder,metal shredder,rubber and tire shredder,plastic shredder,wood shredder,cans shredder,cars shredder,woven bag shredder,film shredder,crusher etc.
Our company has a professional technical team of engineers for shredder machine research and design, machining, assembling, repairing.
We always insist the principle of "Quality First,Reputation first" to provide best service .We ask for "Pragmatic and honest", to be a responsible company. We hope to establish a long term relationship with you. We sincerely hope we can build good future,hand in hand.
