0.5t 1t 5t Lever Block Lever Chain Hoist Lifting Equipment with Competitive Price

Product Description

Product Description

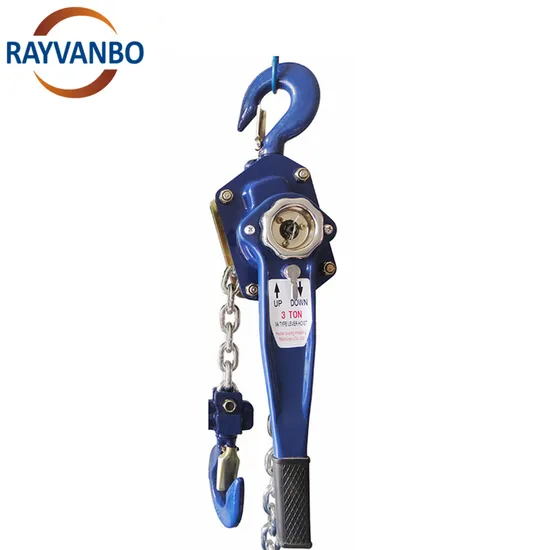

VA Type Lever Hoist is widely used in factories, farm, mines, construction site,docks, transport areas and other occasions.It is the ideal tool for equipment installation,goods lifting, goods fixing,banding and traction ,especially at any angle of traction and in the case of small space, open-air work and no power, it shows its superiority. The main rated lifting capacity is 750kg, 1500kg. 3000kg. 6000kg..
The maximum lifting height of this powerful chain hoist is 3 meters high and the standard lift height is 1.5 meters. This reliable chain hoist is great for lifting heavy loads in the workshop.· Precision-machined alloy steel gears for exceptional durability and long life· Drop forged Alloy hooks are designed to stretch when overloaded before chain failure and are equipped with heavy duty cast steel safety latch.· The top hook mounting articulates to aid in rigging and help insure straight line loading between hooks.· All unpainted parts with high-grade corrosion protection.
Lever Hoist Features:
1. Torque control mechanism.
2. Heat-treated hooks ensure safety even if they are super-dispersed.
3. Shockproof gear cover and brake cover for dust and rain protection.
4. Non-slip rubber handle for safe operation.
5. Extraordinary braking force, easy to adjust. Best anti-rust treatment.
6. Brake mechanism with special design to avoid wear.
7. Chain locating pin protects the machine head well.
8. Special surface treatment rust-proof chain for heavy lifting.
9. Stable device prevents chain entanglement during lifting.
Product Parameters

Capacity (ton)	Running Test Load (ton)	Chain Diameter (mm)	Contraction Distance (mm)	Stretch Distance (mm)	Handle Length (mm)	Net Weight (kg)	Increased weight per meter of 1m lift(kg)
0.75	1.13	5	300	1800	230	4	0.55
1.5	2.25	5	350	1850	230	5	1.1
3	4.5	6	350	1850	430	8.5	1.7
4	6	6	580	2080	630	14.5	2.1
6	9	6	650	2150	730	18	2.8
9	13.5	7.1	820	2320	750	24	3.2

Packaging & Shipping
About Us
FAQ
Q1: What are you? Trade Company or manufacturer?
We are both manufacturer & trading company

Q2: What's the advantage of your company?
We've experienced manufacturer and overseas dealer. Our products have been exported to over 110 countries.
An independent research team especially focusing on crane and hoist design upgrade. A professional service
team for customers will provide feedback within 24 hours.

Q3: What's the sample & MOQ to your company?
Sample order MOQ can be 1 set and the product you ordered will be sent in a week as long as inventory is available.

Q4: Can I customize the product according to my own willing?
Yes, OEM/ODM are available, we can customize as customer's request.

Q5: How is the package during transportation?
Composite wooden crate for the electrical parts, waterproof cloth for the steel structure, then packed in a metal crate.
