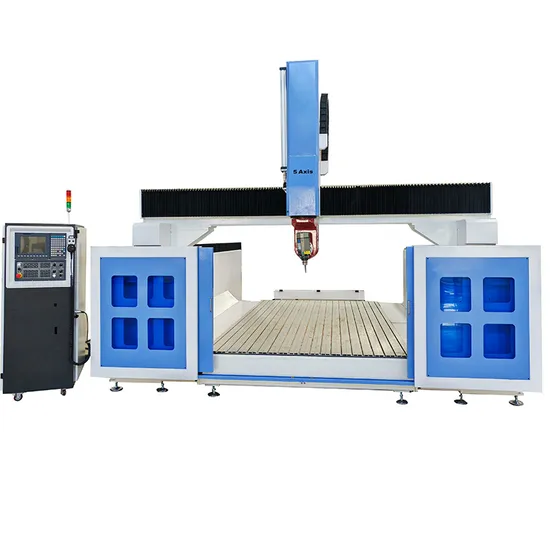

5 Axis Wood Mould CNC Milling Machine for Auto Car Parts

Product Description

Product Description
1.when delivery we will provide the videos for training.
2. More steady and strong equipped bed structure with T-shape thick steel
3. Equipped with 9kw air cooling spindle can move 0-360 degree, it can engrave the bending material by moving spindle.
4. The auto oiling system, just pushing the handle then can realize the whole machine oiling, very convenient.
5. Dust collector, helping to suck the dust, milling dust, keeping the machine clean.
6. Taiwan SYNTEC control system with industrial control panel.
7. Taiwan HIWIN square guide rail with 30mm diameter, high precision and long life time, rack and pinion transmission, high speed.
8. Vacuum adsorption table with 5.5KW vacuum pump, it can adsorb the materials on the table, more stable when engraving wood doors.
9. China Inovance servo motor and drivers. also can be optional China Leadshine servo motor and driver
10. Function of re-carving after break point and power off
5 axis wood mould cnc machining center 9KW air cooling spindle with 5 axis head T-slot table with 12 cutters linear ATC storage
Thick steel welded bed structure, with thick gantry bar, with longer life time
12 cutters linear ATC storage
9KW air cooling spindle,with 360 degree moving 5 axis head
Taiwan SYNTEC control system
Yaskawa servo motor and driver
Auto oil lubricating system
Higher Z axis
servo motor and driver, with Japanese SHIMPO reducer
Company Profile

Jinan Zhongke CNC Equipment Co., Ltd. is mainly engaged in engraving machines; Woodworking carving machine; Furniture carving machine; Advertising engraving machine; Laser engraving machine; Stone carving machine, glass carving machine, metal carving machine; A production-oriented company that specializes in the research and development, production, and sales of carving and cutting equipment. Our products draw on advanced foreign technologies and rely on years of market accumulation to establish a stable technical service team for computers, CNC machine tools, and industrial automation products. We are a technology service company that integrates the research and development, assembly, production, and sales of CNC machinery, optoelectronic products, and other electromechanical equipment.
Product Parameters

Description	Parameter
	ZK 1325	zk1530	Option
Working Area (X*Y*Zmm)	1300x2500x600mm	1500X3000X600	According to demands
Max Moving Speed	60000mm/min
Max Engraving Speed	25000mm/min
Frame	Welded Steel
Spindle Power Motor	9KW air cooling spindle	Optional other China brand
Spindle Speed	12000-24000rpm
The number of knife	12 pieces	According to demands
The manner to change knife	Circular disk	Option: In-line
XYZ traveling positioning accuracy	±0.04/300mm
XYZ repositioning accuracy	±0.04mm
Working Voltage	AC380V/50/60Hz,3Ph
Drive Motors	Servo Motors and Drivers
Command language	G code,HPGL
Operating system	SYNTEC control System
Interface	USB
Flash memory	128M(U Disk)
Software Compatability	Type3,Ucancam, Artcam Software
Diameter of tools	Φ3.175,Φ6, Φ12.7
Running Environemt	Temperature: 0°C~45°C
	Relative humidity: 30%~75%

After Sales Service
1. Warranty & Aftersales service:
A)warranty is 1 year
B)24 hour technical support by email or calling
C)User-friendly english manual for machine using and maintaining
2. Rationalization of pre-sales consulting

Packaging & Shipping
Can be shipped by LCL or FCL
Sample photos
Our Advantages
We are a professional manufacture , we produce machines by ourselves, also we have the professional engineer team that can help you to design a good machine for you

Certifications
4 axis swing moving head cnc router machine that spindle can chang 0-180 degree
carousel ATC cnc router machine with swing 0-180 degree, 9KW ATC spindle, 4 axis model machine
5 axis wood mold cnc router machine, spindle is the professional 5 axis head can rotate 0-360 degree
carousel ATC swing head cnc router machine
