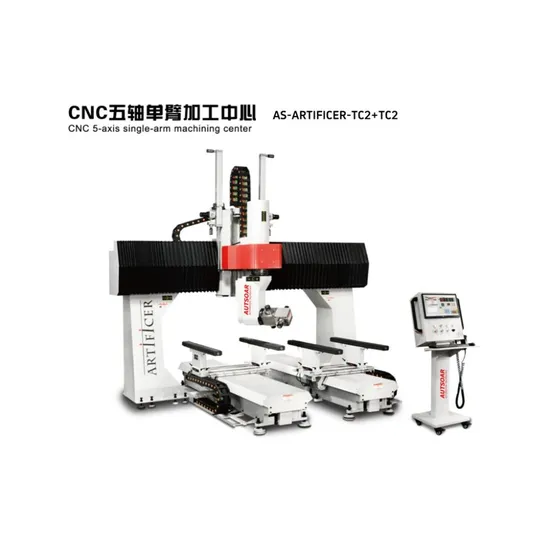

Five Axis Single Arm Machining Center Woodworking Desktop CNC Router CNC Machine Woodworking Machinery

Product Description

Product Parameters

Processing scope

1. Vacuum worktable size: 1130 * 900mm * 2 2. Number of vacuum workbenches: 2Pcs 3. Sports itinerary: -X-axis travel: 2650mm -Distance between the two pillars of the machine: 2540mm -Y-axis travel: 2200mm -Z-axis travel: 850mm

Working parameters

1. Maximum moving speed: -X-axis speed: 70m/min -Y-axis speed: 70m/min -Z-axis speed: 50m/min -C-axis (rotating head):+/-400 ° -A-axis (rotating head): continuous rotation 2. Install power input: 34.5 kW 3. General operating voltage: 380Vx3P 4. Power supply: AC380V/50Hz 5. Compressed air pressure: 6bar 6. Machine dimensions (excluding electrical box operation box): length x width x height: 3650x3350x3600mm 7. Total mechanical weight: approximately 6000kg

Applications: Wooden furniture industry, furniture decoration, musical instruments, wooden crafts, large panel carving, solid wood furniture, solid wood murals, composite doors, paint free doors, cabinet doors, advertising industry, mold industry, relief, toy production, bedside tables, screen sculptures, etc.
Product Description
Sample
Packaging & Shipping
Certifications
FAQ
1. Question: How to transport the machine?
Answer: We can send our machines by sea, land, and railway
2- Question: Is the quality guaranteed?
Answer: Each device is inspected to ensure quality before being shipped out, and after-sales service is provided in a timely manner
3-Can it be customized?
Answer: If you have special requirements, we can certainly customize the machine according to your requirements to meet your needs.
