Joston SS316L Jacket Steam Electrical Heating Cooling Storage Tank

Product Description

Product Description Multiple agitator mixing tank is used to to dissolve one or more materials (water-soluble solid phase, liquid phase or colloidal substance, etc.) in another liquid phase, and make them hydrate into relatively stable emulsions.

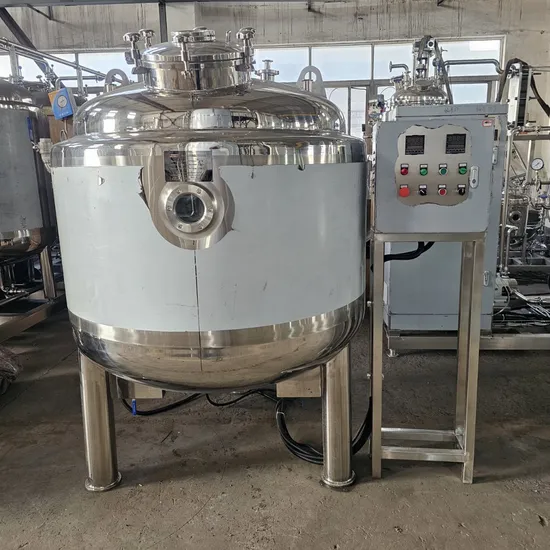

Detailed Photos
Product Parameters

Model Item	PTE-50	PTE-100	PTE-200	PTE-500	PTE-1000
Tank work volume:L	50	100	200	500	1000
Motor power for high shear emulsifying:Kw	1.1	1.5	2.2	5.5	7.5
Agitator speed for high shear emulsifying :RPM	0-1440 or 0-2900
Motor power propeller type agitator g:Kw	0.37	0.55	0.55	0.75	1.1
Agitator speed for propeller type agitator :RPM	0-150
Motor power anchor type agitator g:Kw	0.55	0.75	0.75	1.1	2.2
Agitator speed for anchor type agitator : RPM	0-45
Inside shell pressure MPa	-0.1/0.3 (can be done as client's URS)
Jacket pressure MPa	0.15 (can be done as client's URS)
If heating by electrical element in the jacket ,the electrical heater power KW	4	8	16	30	50
Jacket heating medium for electrical element	electrical heating water or thermal oil
Jacket type	Single full jacket

Certifications

Company Profile

FAQ 1.What about your factory?Our factory is located in Wenzhou city ,Zhejiang Province and have more than 15 years experience on machinery making.2.How will your company control the equipment quality ?We have a qualified expert team ,we will inspect every production proceed .also Machines will be tested in our plant before shipment .3.How long the warranty will be?We provide 1 years warranty for the machine running ,but we will afford whole -life service for the machine .4.Which kind payment do your company do now ?We accept Western Union, T/T ,D/P,D/C and irrevocable L/C payable etc.5.Can we become your distributor in our country?Yes, we very welcome you! More details will be discussed if you are interested in being our agent.6.Why we choose "JOSTON "?1. We enhance the reliability of product's quality and working life . 2. We decrease the consumption cost of the product in the ruuning. 3. We improve research personnel's ability to deliver a creative design; 4. We use leading technologies in our product development and innovation, and thereby increase the competitive advantage of products.
