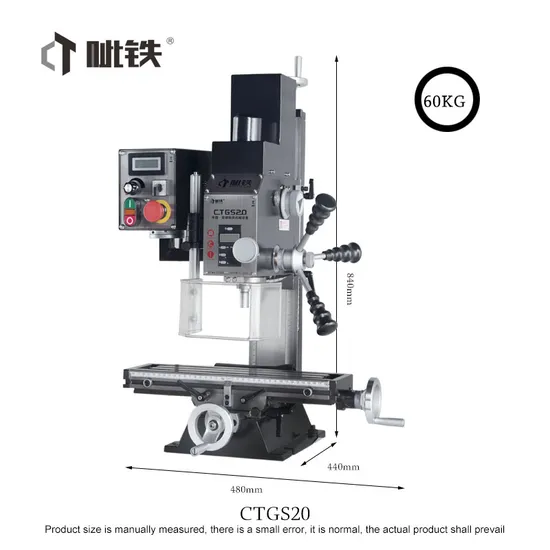

Mini Drilling Milling Machine Ctgs20 Drilling and Milling Machine
Basic Info.
Model NO.
CTGS20
Structure
Desktop
Milling Cutter Type
Three Blade Milling Cutter
Milling Cutter Structure
Inlaid Tooth
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Transport Package
Standard Wooden Packing
Specification
480*440*840mm
Trademark
CTMACH
Origin
China
HS Code
8458190000
Production Capacity
10000
Product Description
| Max.Drilling capacity | 20mm |
| Max.milling capacity | 52mm |
| Max.vertical milling capacity | 16mm |
| Table size | 400*120mm |
| T-slots size | 10mm |
| X spindle travel | 230mm |
| Y spindle travel | 145mm |
| Z spindle travel | 200mm |
| Spindle taper | MT2/M10 |
| Spindle travel | 50mm |
| Spindle box left&right rotation angle | ±90° |
| Spindle speeds | 100~3000 rpm |
| Motor Power | 600W |
| Net weight/gross weight | 60/80kg |
| Overall dimensions | 480x440x840mm |
| Package Size | 520*520*840mm |
