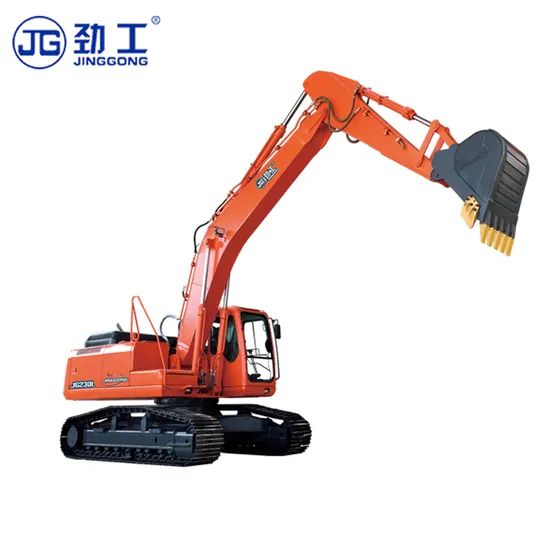

Special Hydraulic Transmission Jinggong China Track Mounted Excavator Digger 230L
| US$70,000.00-75,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
230L
Type
Crawler Excavator
Usage
Special Excavator, GM Excavator
Bucket
Backhoe
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.1~0.5m³
Size
Medium-Sized
Certification
CE, ISO9001: 2000
Condition
New
Boom Length
5700mm
Arm Length
2900mm
Transport Package
Nude Packing
Specification
9600*2990*3000mm
Trademark
JingGong
Origin
China
HS Code
8429521200
Production Capacity
3000units/ Year
Product Description
| SPECIFICATIONS | ||||||||||
| RANGE OF OPERATION | Boom length | 5700mm | ||||||||
| Arm length | 2900mm | |||||||||
| Maximum digging radius | 9873mm | |||||||||
| Minimum turning radius | 3560mm | |||||||||
| Maximum digging depth | 6592mm | |||||||||
| Maximum vertical mining depth | 3929mm | |||||||||
| Maximum digging height | 9616mm | |||||||||
| Maximum unloding height | 6830mm | |||||||||
| The radius of the end of gyration platform | 2794mm | |||||||||
| DIMENSION | (Length*width*height) travel position | 9600*2990*3000mm | ||||||||
| Wheel base | 3635mm | |||||||||
| Track Gauge | 2400mm | |||||||||
| Width Of Crawler | 600mm | |||||||||
| Total width of the car | 2990mm | |||||||||
| Total length of walking mechanism | 4440mm | |||||||||
| The total width of belt off | 2980mm | |||||||||
| Ground clearance of counterweight | 1096mm | |||||||||
| Min ground clearance | 475mm | |||||||||
| TECHNICAL PARAMETERS | Angle of rotation | 360° | ||||||||
| Machine weight | 22300kg | |||||||||
| Engine model | Is | |||||||||
| Rated Power | 128.5KW | |||||||||
| Rotary speed | 10.7min | |||||||||
| Walking speed(high/low) | 5.9-3.2km/h | |||||||||
| Ground specific pressure | 43.5kpa | |||||||||
| Climbing ability(%) | 70% | |||||||||
| Digging force | 77.4KN(standard)/81.3KN(turbocharged) | |||||||||
| Volume Of Bucket | 1.2m3 | |||||||||
| Main pump | Kawasaki(Japan) | |||||||||
| Control valve | Parker | |||||||||
| Travel motor and swing motor | Doosan(korea) | |||||||||
Company
We are a leading manufacturer and exporter of wheel excavators, crawler excavators, sugarcane harvesters, sugarcane grab loaders, multi-function excavators. We have nearly 20 years of professional experience, and our products have been exported to many countries.
