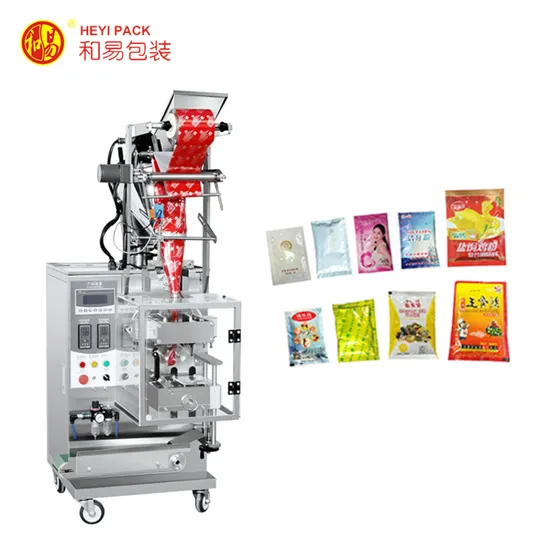

High Precision Pharmaceutical Powder Packaging Machine 4 / 3 Side Sealing Sachet Packing Machine for Powder

Product Description

High Precision Pharmaceutical Powder Packaging Machine 4 / 3 Side Sealing Sachet Packing Machine For Powder
Established in 1999, GUANGZHOU HEYI PACK CO. LTD. is specialized in designing, manufacturing and sales of automatic form-fill-seal sachet packaging machines for liquid, powder and granule products, widely used in chemical, pharmaceutical, food, health products, cosmetics and other processing and production industries. With experienced hardware and software engineers, we are capable of both ODM & OEM production.
Product Parameters

Model number	HY-F50
Filling range	1-50g
Filling method	Auger screw
Sachet type	3 sides / 4 sides seal
Sachet size	W:30-100mm L:30-150mm
Max. film width	220mm
Capacity	30-50bags/min
Control	EASY PACK
Power	220V 50-60Hz / 1.5KW
Air pressure and consumption	0.3m3/min, 0.6-0.8Mpa
Dimension	670x850x1655mm
Weight	200KG
Material	Machine case SUS202; material contacting parts SUS304
Packaging film material option	PE laminated film, such as PET/AL/PE, PET/PE, Nylon/PE, etc. Thickness: 0.08~0.12mm(3 or 4 layers) Inner core diameter: 75mm Outer roll diameter: 300mm-500mm

Applications It is suitable for automatic packaging of powder products with poor fluidity in food, health care and pharmaceutical industries, such as: freeze-dried powder, protein powder, gastrodia powder, pueraria powder, stone meal powder, notoginseng powder, whole grain powder, meal replacement powder , milkshake powder, ganoderma powder, bear bile powder, milk powder, coffee powder, solid beverage, etc.


Features
1. Using a rotary cutter to cut, by replacing the blade, the flat mouth and the serrated mouth effect can be realized, and the bag length cutting position is convenient to adjust;
2. Full pneumatic control including metering and bag making, simple operation, less wear parts in the later period, reducing parts replacement;
3. Material: The material contacting part is made of SUS304 stainless steel, which meets the requirements of GMP production;
4. The heat-generating parts and moving parts are hidden in the protective cover and are safe to operate;
5. The equipment is equipped with casters for easy handling and movement.
