Commercial Wholesale Plastics Clay Playdough Dough Kneading Machine Space Sand Double Shaft Sigma Mixer

Product Description

We will offer you price referring to your detail request, so please kindly inform us of the material, viscosity, density, etc, andother requirements you prefer, and the special offer will be given.The pictures are above just for your reference.Our machines can be customized, leave an inquiry to know more details about price, packing, shipping and price.Any questions, feel free to contact us.
Lusa Ti

specification				5L	10L	100L	300L	500L	1000L	1500L	2000L	3000L
Effective volume L				5	10	100	300	500	1000	1500	2000	3000
Feeding amount L				3.5	7	70	210	350	700	1100	1400	2100
Main motor power Kw				1.1-1.5		4-7.5	7.5-18.5	15-30	18.5-45	22-55	37-75	45-110
Screw motor power Kw				NO			3-4	3-4	4-5.5	5.5-7.5	7.5-11	11-15
Discharge the way	High temperature			Manually turn cylinder		Hydraulic cylinder
	Other type			Manually turn cylinder		Hydraulic cylinder	Hydraulic turn cylinder, screw discharge, the next material
Mixing speed r/min				33/23		35/22	37/21	35/25	30/16
Heating the way	High temperature			no			electricity
	Other type			Electricity/steam
Electric heating power Kw		HT		6-10	8-10	12-15	30-35	35-45	60-80	90-110	110-140	160-190
		OTHER		1.8	1.8	4.2	12	18	24	36	36-54	54-72
Steam pressure Mpa				0.3
Vacuum type vacuum				-0.090Mpa
Pressure type pressure MPa				0.45			0.35
Dimension mm	ordinary		L	1100	1100	1600	2150	2550	2750	3030	3060
			W	410	410	610	850	1000	1200	1850	2250
			H	510	510	1360	1300	1550	1800	1850	2070
	vacuum		L	1100	1100	1600	2150	2550	2750	3030	3100
			W	1000	1000	610	1250	1320	1600	2150	2350
			H	520	520	1360	1400	1550	1800	1850	2070
Weight kg				210 ~300	250 ~340	1100 ~1250	2000 ~2200	2800 ~3000	4200 ~4500	5200 ~5500	6400 ~6800	9000 ~9500
Table parameters for reference only, according to customer requirements can be designed (a variety of volume, speed and special requirements) dedicated models

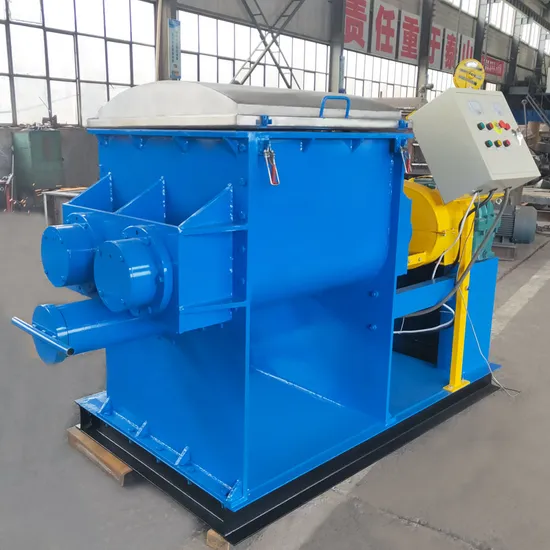

Commercial Wholesale Plastics Clay Playdough Dough Kneading Machine Space sand Double Shaft Sigma Mixer
The Sigma mixer is consist of mixing chamber ,frame support ,hydraulic system ,electric control system, Discharge system And two Z shape blade in the chamber drove by the motor and the two blade rotating with different speed ,but can be control by the inverter .The sigma blade mixer caused by a pair of mutually cooperating and rotating Z blades to produce a strong shearing action so that the semi-dry state or the rubbery viscous plastic material enables the material to react quickly to obtain a uniform mixing.
Independent distribution box (control panel), which can realize separate and precise control of stirring speed, heating or cooling temperature, stirring and discharging system.
Three Discharge methods facilitate processing of different materials.
FAQ
Q: Do you have machines in stock?
A: Yes, but just the small-scale machines. Machines are different with other products, most of the large-scale machines are designed according to our customers' requirements, different customers have different production requirements, so the technical parameter is different for most machines. On the other hands, most of the our machines will cover a large area, so once the machines are finished, we will effect shipment after QC.
Q: Can you send the detailed drawings of the machine to us before we place order?
A: We can send you a draft drawing of the machines, and after you place order and pay the deposit, our engineer will design the specific technical parameters for you and send you the detailed drawings. Once you confirm without questions, we will put it into production.
Q: Can we pay the balance after we receive the machines and test without problems?
A: It's unnessary to worry about the quality of our machines, we are confident in that. After the machine is finished, we can install and test the machine for you (if you can not come to our factory, we can record a vedio and send to you). Only after you check without problems, we will effect shipment.
