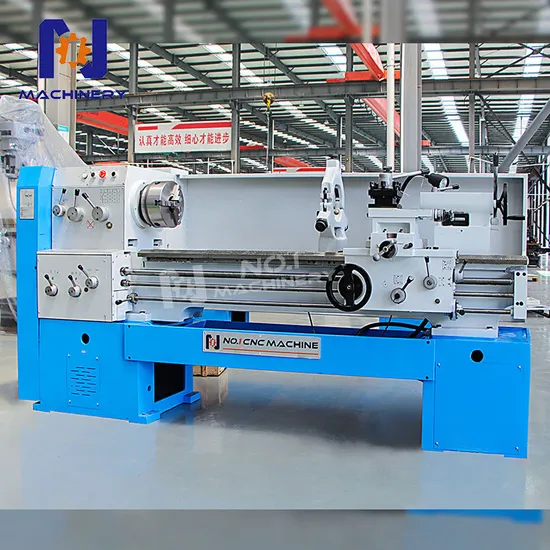

China C6150 Universal Lathe Manual Lathe Light Duty Horizontal Metal Lathe Machine

Product Description

Product Description
Main features:
Spindle: the end conforms to lSO-C6 international standard.
Tool holder: using end-face tooth disc positioning, repeat positioning accuracy.
Tail frame: with fast cam clamping device, high efficiency. Guide rail: Ultrasonic frequency quenching, hardness reached HB400,CNCperipheral grinding, with high precision, good wear resistance and so on.
Spindle Box: it adopts Harbin BEARING high precision double bal BEARINGto support the spindle to ensure the precision ofthe spindle when it rotatesat high speed. many kinds of thread, metric inch thread conversion is simple. Product Parameters

PARAMETER ITEM	UNIT	C6(1/2)36	C6(1/2)40	C6(1/2)50
Maximum turning diameter of bed	mm	360	400	500
Maximum turning diameter on the tool post	mm	190	330	330
Maximum turning diameter at the saddle	mm	540	560	660
Center distance	mm	750/1000	750/1000	1500
Bed width	mm	360
Spindle hole		Φ52/80
Spindle end size		C6
Spindle taper hole		MT6
Spindle speed range (number of stages)	rpm	40-1400(9steps)special order1600
Metric Thread Range (number)	mm	0.25-14 (19kinds)
Inch thread range (number of types)	inch	2-40
Modulus thread range (number of species)	m	0.5-3.5(11kinds)
Horizontal skateboard stroke	mm	180 222
Śmall tool holder stroke	mm	95
Turning tool holder section size	m	20x203
Tailstock sleeve taper		MT4
Tailstock sleeve diameter	mm	65
Tailstock sleeve stroke	mm	140
Main motor	kw	3 4
Packing size:(LxWxH)
750	mm	2220x1150x1590
1000	mm	2470x1150x1590
1500	mm	2970x1150x1590
Weight:Net/Gross(kg)
750	mm	1350/2000	1400/2050	5000/2150
1000	mm	1450/2100	1500/2150	1600/2250
1500	mm	1600/2250	1650/2300	1750/2400

Details Display
HT300 grey iron casting, one-piece casting, more stable.

Classic gear shifting device, gear engagement is more accurate/fast

Quick feed button, convenient/precise

High-strength manual three-jaw chuck, four-station tool holder (optional German-style quick-change tool holder)

Integrated manual tailstock, higher strength and stronger clamping.

2-axis DRO, more suitable for beginners and precision parts processing
Product packaging
Company Profile
Zaozhuang NO.1 CNC Machine Tool Co.,LTD is located in the beautiful city, Tengzhou,Shandong Province,China.We specialized in manufacturing & exporting machine tools to the world for more than 30 years. Our factory has More than 80,000m² of the factory with more than 200 workers.We have got many international certifications such as lSO, WIPO, CE, EAC,BV, TUV, SGS, and patents, Our machines have been exported to more than 100 countries and regions, and provide long-term overseas technical guidance and after-sales service for these countries .We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management. Strictly QC control with more than 24 steps testing processes.We wish to cooperate sincerely with friends all over the world to realize mutual development.






FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,I can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as lathe machine ,cnc lathe machine ,milling machine ,cnc milling machine ,vertical machining center ,drilling machine ,radial drilling machine ,sawing machine ,shaper machine and so on .
3: Where is our factory located? How can I visit there?
A: Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A: FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A: T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
