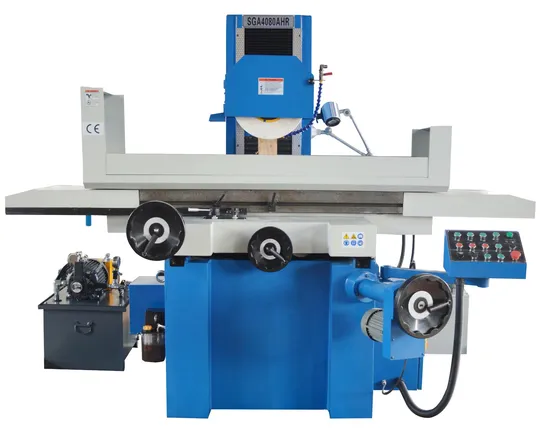

SGA30110AH/AHR/AHD automatic high precision surface grinding machine
Basic Info.
Model NO.
SGA30110AH/AHR/AHD
Abrasives
Grinding Wheel
Controlling Mode
Artificial
Automatic Grade
Manual
Cylindrical Grinder Type
Universal Cylindrical Grinder
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Table Size (L W)
200X508mm
Table Travel
560mm
Spindle Motor
2.2kw
Table Maximum Cutting Area (Lxwxh)
200X460mm
Table
Magnetic Chuck
Transport Package
Standard Ply-Wood Case
Specification
CE SGS ISO9001
Trademark
WMT
Origin
Chizhou, Anhui, China
HS Code
8460190000
Production Capacity
50 Sets/Month
Product Description
SGA30110AH/AHR/AHD High precision surface grinder machine for metal work with CESpecification:
| Specification | SGA-30110AH/AHR/AHD |
| Table size(WxL) | 1020x405mm |
| Max.longitudinal travel | 1130mm |
| Cross travel | 340mm |
| Max.distance from spindle center to table | 580mm |
| Magnetic chuck size | 400x1000mm |
| Speed of table longitudinal movement | 7-23m/min |
| Table transerve movement/ Auto feed | 0.1-8mm/min |
| Table transerve movement/ Repid speed | 990mm/min |
| Table transerve movement/ Feed of handlwheel | 0.02mm/div. |
| Wheelhead vertical movement/ Auto feed | -(H/R mode)0.005/0.01/0.02/0.03/0.04/0.05(only for D model)mm/stroke |
| Wheelhead vertical movement/Repid speed | -(H mode)610(only for R model)480(only for D model)mm/min |
| Wheelhead vertical movement/ Feed of handlwheel | 0.005mm/div. |
| Grinding wheel Speed 50Hz | 1450rpm |
| Grinding wheel Speed 60Hz | 1750rpm |
| Grinding wheel (ODxWxID) Size | 350x40x127mm |
| Spindle motor | 4/5.5kw |
| Hydranlic Motor | 2.2kw |
| Coolant pump motor | 0.09kw |
| Cross feed motor | 0.04kw |
| Max.loading capacity of table(include magnetic chuck) | 600kg |
| Total rated power | 7.5/9kw |
| Gross weight | 3900kg |
| Packing dimensions(LxWxH) | 2960x2250x2220mm |
