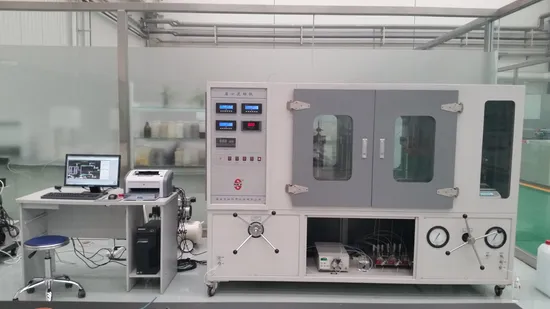

Core Flooding System for Oil Research

Product Description

Specification: Capacity: 260 ml or better, Flow Range (ml/hr): 0.6 - 1500 ml/hr (0.01 ml/min to 25 ml/min) or better, Pressure Range (psi): 0 - 8,000 or better, Operating Temperature: 40 - 150° C or higher
2. Core Holder: 01 in quantity. Type: Multi-Pressure Point Hydro-Static Core Holder
· Core holder stand for mounting core holder in horizontal and vertical position
· Core Holder Port multiple: 05 port along the core length (including port at inlet and outlet as shown in figure 1)
· Pressure taps: Up to 5, equally spaced along the core length (including pressure port at inlet and outlet as shown in figure 1)
· Maximum operating pressure (Overburden Pressure or confining pressure): 10000 psi
· Maximum operating Temp: 150˚C or higher
· Insert Core Dia: 1.5" core
· Insert Core Min. length = 1" inch to Core max. Length = 18" inch (45.72 cm)
3. Core Viton Sleeve for 1.5" core: 10 in quantities, length same as core holder length, up to 18", Pressure: up to 10000 psi
4. Confining pressure System: 01 in quantity. To provide confining pressure around the core sample Hydraulic Hand Pump/Hand Pressure Pump for make confining Pressure Maximum confining pressure up to 10000 psi
5. Pressure Transducer, for confining Pressure: 01 in quantity, Range: 0-10000 psi
6. Diff. Pressure transducer: 01 quantity
Working under pressure (line pressure) = 0-5000 psi
· Measuring Diff. pressure Range = 0-500 psi
7. Floating Piston Fluid Accumulator: 03 in quantity. One for brine, one for crude oil and one for injection fluid
· Floating Piston Accumulator Max. Operating Pressure = 10000 psi
