100W/300W Cw/Ww/RGB/RGBW/RGBA/RGBWA/Rgbwauv High Power LED PAR 64 / LED Stage Light
| US$85.00-120.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
LED COB-3001
Waterproof
Not Waterproof
IP Rating
IP20
Life
80000h
Electric Current Type
AC
Input Voltage
220V
Diffuser
Polycarbonate
Shell Material
Aluminium Alloy
LED Chips
CREE
Certification
CE, EMC, LVD
Power
100W/300W
Color
100W/300W Cw/Ww/RGB/RGBW/RGBA/RGBWA/Rgbwauv
Transport Package
Carton/Flycase
Specification
54*29*27cm
Trademark
MSLighting
Origin
Guangzhou, China
HS Code
94054090
Production Capacity
500PCS/Week
Product Description
| Quick Details | |
| Light Source: | 100W/300W LED COB |
| Input Voltage(V): | 90-250V ,50-60Hz |
| Lamp Luminous Efficiency(lm/w) | 99% |
| Certification: | CE,EMC |
| Model Number: | LED COB-3001 Series |
| Usage: | Theaters, stage , robust housing |
| Control mode: | DMX 512, Auto run and Master/Slave,sound… |
| DMX Channels Details for 1 color (E.g White, warm White) | CH1 - Dimmer intensity 0-100% |
| CH2 - Strobe, the speed from slow to quick | |
| DMX Channels Details for 2 color (2in1) (2CH/4CH) (E.g White+warm White 2in1) | CH 1 - General Dimmer (1-255, dimmer, from dark to bright) |
| CH 2 - Color 1 (1-255, dimmer, from dark to bright) | |
| CH 3 - Color 2 (1-255, dimmer, from dark to bright) | |
| CH 4 - strobe & speed adjustment | |
| DMX Channels Details for 3 color (3in1) (3CH/6CH) (E.g RGB 3in1) | CH 1 - General dimmer (1-255, from dart to light) |
| CH 2 - Color 1 (1-255, Dimmer,from dart to light) | |
| CH 3 - Color 2 (1-255, Dimmer,from dart to light) | |
| CH 4 - Color 3 (1-255, Dimmer,from dart to light) | |
| CH 5 - Strobe & Color change/ color gradual change open | |
| CH 6 - Speed adjustment | |
| DMX Channels Details for 4 color (4in1) (4CH/7CH) (E.g RGBW 4in1) | CH 1 - General dimmer (1-255, from dart to light) |
| CH 2 - Color 1 (1-255, Dimmer,from dart to light) | |
| CH 3 - Color 2 (1-255, Dimmer,from dart to light) | |
| CH 4 - Color 3 (1-255, Dimmer,from dart to light) | |
| CH 5 - Color 4 (1-255, Dimmer,from dart to light) | |
| CH 6 - Strobe & Color change/ color gradual change open | |
| CH 7 - Speed adjustment | |
| DMX Channels Details for 5 color (5in1) (5CH/8CH) (E.g RGBWA 5in1) | CH 1 - General dimmer (1-255, from dart to light) |
| CH 2 - Color 1 (1-255, Dimmer,from dart to light) | |
| CH 3 - Color 2 (1-255, Dimmer,from dart to light) | |
| CH 4 - Color 3 (1-255, Dimmer,from dart to light) | |
| CH 5 - Color 4 (1-255, Dimmer,from dart to light) | |
| CH 6 - Color 5 (1-255, Dimmer,from dart to light) | |
| CH 7- Strobe & Color change/ color gradual change open | |
| CH 8 - Speed adjustment | |
| DMX Channels Details for 6 color (6in1) (6CH/9CH) (E.g RGBWAUV 6in1) | CH 1 - General dimmer (1-255, from dart to light) |
| CH 2 - Color 1 (1-255, Dimmer,from dart to light) | |
| CH 3 - Color 2 (1-255, Dimmer,from dart to light) | |
| CH 4 - Color 3 (1-255, Dimmer,from dart to light) | |
| CH 5 - Color 4 (1-255, Dimmer,from dart to light) | |
| CH 6 - Color 5 (1-255, Dimmer,from dart to light) | |
| CH 7 - Color 6 (1-255, Dimmer,from dart to light) | |
| CH 8 - Strobe & Color change/ color gradual change open | |
| CH 9 - Speed adjustment | |

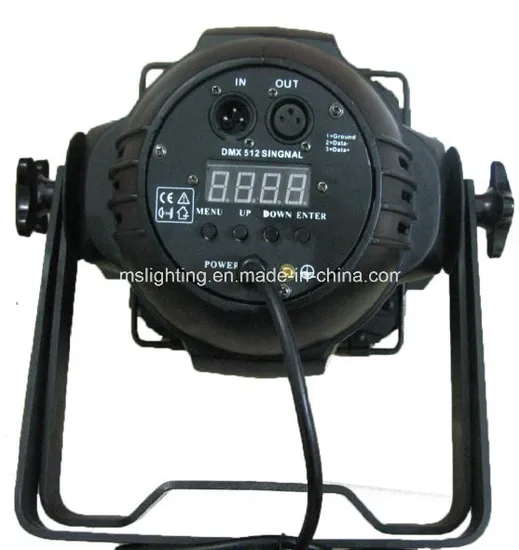

| Setting and Addressing: | 4-digit LED |
| DMX Data In/Out: | XLR 3Pin |
| Electronic Dimmer: | 0-100% linear dimmer |
| Electronic Strobe: | 1-30 flashes/second |
| warranty: | 2 year |
| Switch Power Supply | Built-in and auto switching |
| Power In: | Fixed |
| CRI (Ra>): | 95 |
| Working Lifetime(Hour): | 60000 |
| Center Beam illuminance: | 1) 19°: 10,600Lux@2.5mtr |
| 2) 26°: 7,500Lux@2.5mtr | |
| 3) 40°: 5,500Lux@2.5mtr | |
| Drive Mode: | Constant Current |
| Emitting Color: | CW/WW/RGB/RGBW/RGBA/RGBWA/RGBWAU…. |
| LED Colour temperature- Warm White | 3200- 3300K |
| LED Colour temperature- Cold White | 6500K |
| Cooling: | Entire casing as heat sink plus 1 noiseless fans |
| Flicker Free | Refresh Rate >2000 Hz |
| Lamp Luminous Flux(lm): | 1000 |
| Color Temperature(CCT): | CW/WW/RGB/RGBW/RGBA/RGBWA/RGBWAUV |
| IP Rating: | IP33 |
| Brand Name: | MSLighting |
| Shell colour | Black/White |
| Shell Material | Aluminum die-casting |
| Key point: | Temperature-protected handly |
| Working Temperature | -40 °C- +60°C |
| Packaging & Delivery | |
| Packaging Detail: | Standard Export packing by carton or OEM package |
| Delivery Detail: | 2-5 days for sample , 5-12 days for mass quantity order |
| Key point : | |
| 1. Ideal for theater , stages ,robust housing, locking possibility at the mounting bracket | |
| 2. Easy lamp replacement | |
| 3. Temperature-protected handle | |
| 4. with single yoke |
