Hot Sale Livestock Machinery Poultry Farming Equipment Pan Feeder for Broiler

Product Description

SPEQ-Poultry
Choosing the poultry farming equipment is an important step in setting up a successful poultry farm. Here are some factors to consider when choosing poultry farming equipment:
Quality
Poultry farming equipment must be durable and able to withstand the harsh conditions of the poultry house. Equipment made from high-quality materials that will last a long time. Ease to use
Your equipment should be easy to use and maintain. Make sure that you and your employees are comfortable using the equipment before you place an order. The easier to work with the less chance for mistakes and the shorter the training period of new staff. Safety
Safety is paramount in poultry farming. Equipment with safety features for both animals and staff such as guards, sensors, and emergency shut offs. Also be aware of the differences in recovery in case of power failures. Availability of spare parts
It's important to choose equipment that has readily available spare parts. This will make it easier and faster to replace parts when they wear out or break. Also check for what period spare parts will remain available. Future proof capacity
Bear in mind what your (growth) ambition might mean for your equipment. Over capacity is not required when you choose a solution that is flexible in case your farm grows. Warranty and support
Look for equipment that comes with a warranty and good customer support. This will give you peace of mind and helps you address any issues that may arise. Consider the above factors to make an informed decision and invest in equipment that will help you achieve success in your poultry farming business.

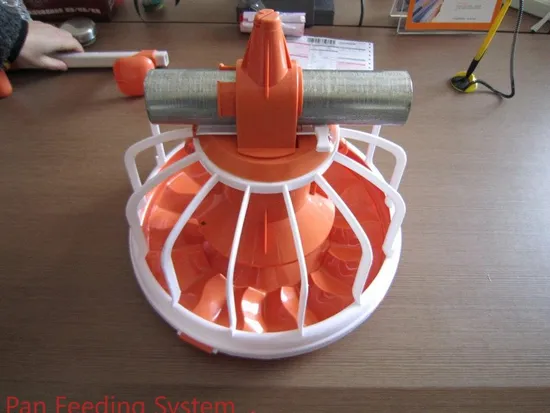

Broiler Pan Feeding System
All the feeders could be suitalbe for chicks and broilers.
The V-shaped design at the bottom can reduce the storage of the feed. Meanwhile, the chickens can eat fresh feed every day.
Features:

Number	Function
1.	It is divided into 5 levels according to the demand;
2.	The adjusting plate can adjust the amount of feed;
3.	The bottom of the Pan can be put on the ground, which is suitable for one-day chicks;
4.	V-shaped corrugated plate bottom can reduce the storage of the feed, chicks can eat fresh food every day, preventing the feed from wasting.
5.	V-shaped corrugated plate bottom can prevent the baby chickens from lying on the plate for a long time to take food or rest; and prevent contamination of food.
6.	The edge of the pan tilts to the center of the pan, which can avoid the waste;
7.	14 -16 cells design ensure enough feed for the broilers.
8.	Easy to assemble, easy to clean, washing and disinfection of the tray with chain connection, without all disassembly can be thoroughly cleaned.
9.	100% pure PP material.

Feeding system:
1. Hopper: 70Kg, 90Kg.130kg,150Kg ,200Kg
2. Drving motor:
Power: 0.75Kw/1.1Kw/1.5Kw;
Voltage: 380V/220V/
Customized: 3-phase/1-phase;
Frequency: 50HZ/60Hz
3. Galvanized feed pipe: Diameter of feed pipe:Φ45mm:
Material: hot-dip galvanized sheet pipe with the zinc-coating amount-more than 275g/m2.
Type: 3 holds/4 holds
Length: 3 meters
4. Helical spring auger:
The original producing area:South Africa,
feeding ability:450Kg/h-2000Kg/h
5. Lifting system: It's very convenient to adjust the feeding line height by winch.
The lifting capacity:3500 pounds.
7. Feed pan:Material: PP raw materialCells: 14/16Diameter of pan bottom:330mm-380mmNet weight: 560g~800g/nuit
Our Advantage
1). More efficient
It can feed the birds automaticly. Saving labor cost, meanwhile, it also can increase the production.


2).High quality All the equipments are made of raw materials, and the service life is 8-10 years.
Company Profile
JIMU Machinery Co., LTD was founded in Qingdao, Shandong province. The corporation engages in researching, designing and manufacturing products for livestock and poultry husbandry. Besides producing and offering feeding system, nipple drinking system, ventilation and cooling fan system and environmental control system, it also engages in the project design and construction of modernized farms for broilers, breeders, layers and swine.
As a factory-direct supplier, we are able to provide our customers with competitive prices while ensuring the highest standards of quality. Our team of experts is dedicated to understanding our customers' needs and tailoring solutions to meet their specific requirements. Whether you are a small-scale farmer or a large-scale poultry producer, we have the expertise to design and deliver customized solutions.
FAQ
1.Q: Are you the direct manufacturer or trading company?
A: We are the manufacturer, and we have more than 20 years' experience of poultry farm equipment .
2. Q: Can the products be customized?
A: We can produce the products according to your detailed requirements.
3. Q: What's the MOQ of the products?
A: we always suggest you the economic quantities for you to save your budgets.
4. Q: What do you have for the poultry equipment?
A: We have feeding pans system , drinking system, environmental controller system, ventilation system.
5. Q: What information are you supposed to provide to get a solution quotation?
A: a. The size of the Chicken farm and Chicken house (Length*width*height);
b. The quantity of chickens in one farm or one chicken house;
c. The weight of chickens when they're for sale in the market;
d. Chicken farm location and local climate condition (temperature, humidity...);
6. Q:What service we can offer :
A: a.Poultry house design and construction;
b.Equipment production and installation on site;
c.After-sale service.
