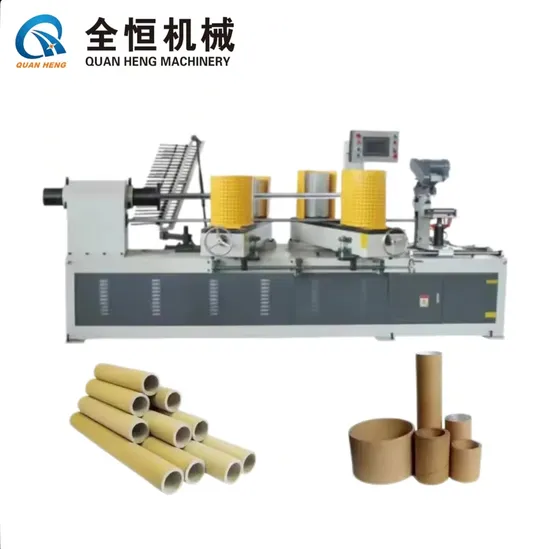

Qh Pack Paper Core Tube Making Machine

Qh Pack Paper Core Tube Making Machine

US$18,500.00
1 Piece
US$18,300.00
2+ Pieces

Basic Info.

Model NO.
200
Paper Core Usage
Paintings Packaging
Tube Machine Type
Bending Machine
Gumming Type
Double Side
Layers of Roll Paper
3-25
Reelpipe Speed
0-25m/Min
Wall Thickness of Paper Tube
1-15mm
Certification
CE
Condition
New
After-sales Service
Service Machinery Overseas
Name
Paper Tube Making Machine
Key
Paper Tube
Voltage
220V/380V/440V
Speed
0-25m/Min
Transport Package
Film Packaging
Specification
200
Trademark
QH pack
Origin
Cangzhou City, Hebei Province
HS Code
84393000

Product Description

Packaging & Shipping
Product Description

Main specifications and equipment
Paper tube machine model QHJG-200type four noses CNC paper tube machine
Technical parameter Control system
Roll tube paper layer 3-25 layers PLC controller Professional products
Paper tube diameter 30-200 (mm) HMI Professional products
Paper tube thickness 1-15 (mm) Program Version CX-P 9.04
Tube speed 0-25 (m / min) Inverter An Rui Ji products
Fixed-length mode CNC (light control) Intermediate relay / contactor Chint
Winding machine head No resistance four machine head Signal element (proximity switch, etc.) Times Funing brand / Shanghai workers
Cutting method Single round knife automatic tracking cutting Cylinder components suopai/tian ao brand
Core mold fixed way Flange plus tight Synchronous control X-axis servo ball screw
Glue way Double-sided adhesive Synchronous tracking tube cutting system Orion servo motor
control method Frequency Cutter lift suopai/tian ao aerodynamic
Input voltage 380V / 220V Emergency stop button Jiangyin Yangtze River brand
Number of operators 1-3 people Configuration device
Size (mm) Drop tube rack automatic
Host Size: L * W * H 2900mm*1700mm*1900mm Belt adjustment Manual
Land area: length * width 20000mm*9000mm For glue Automatic stainless steel heating plastic tank
Hub diameter 294mm Tape for lubrication oil Automatic lubrication of stainless steel basin
Hub height 360mm430mm Tension adjustment Mechanical adjustment
Minimum track 1000mm Paper holder type Right-angle fixed lifting on the paper holder
The maximum track 1250mm Roll mandrel 1
total weight 4500kg Roll tube belt 1 article
Drive system Applications Have
monitor rate 15kw Shanghai strong speed Bottom, surface paper device Stainless steel paper holder, paper cone
Host speed 1400r / min Under the rack Stainless steel plate
The maximum wheel speed 62r / min Host Stainless steel countertops
Hub output torque 8500NM Paper guide stainless steel pipe
Reducer models WPO155 Hangzhou Xiaoshan
Transmission Automotive gearbox
Linear Guides Taiwan silver products
Ball screw Taiwan TBI
Drive chain model 12A × 2
Wheel drive four-wheel drive
Cutter motor 0.4kw gear motor, Shanghai Ott
Bearing Universal bearings
Note: due to the continuous update of the product technology, all data to the product sample!
