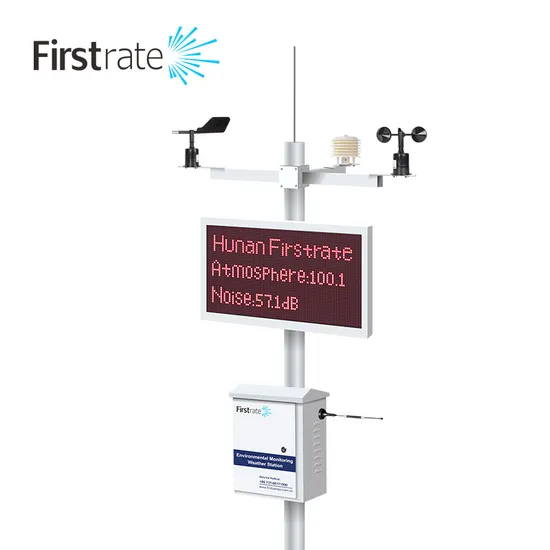

FST100-QXZ-01 Premium Quality Outdoor Meteorological Weather Monitor for Forest Environment Urban Monitoring

Product Description

FST100-QXZ-01 Premium Quality Outdoor Meteorological Weather Monitor for Forest Environment Urban Monitoring
Product Description Firstrate's weather environment monitoring system can highly integrate 30+ weather station type products such as campus,
community forest fire prevention, agricultural planting, construction site, etc. required by users. The system adopts advanced
sensing technology and cloud architecture mode to realize the collection of environmental data such as temperature and
humidity, atmospheric pressure, wind speed and direction, rain and snow rainfall, air quality, organic pollutant gas, soil
environmental nutrition analysis, etc. through wireless 4G transmission methods are connected to the cloud to realize automatic
storage of environmental data and online analysis and monitoring. Users can analyze data through the management platform or
APP to obtain relevant environmental data in the area to achieve real-time monitoring and accurate analysis.
[Features]
· Low power consumption design, reduce power consumption
· Metal sprayed and corrosion-resistant electric control box
· High-strength carbon steel pole, strong impact resistance, can be used in harsh environments for a long time
· Multiple collocations to solve multiple monitoring needs
· Optional wireless communication transmission to meet remote data transmission and control
· Optional solar panel power supply, no need to pull cables, to solve outdoor power supply needs
· Optional waterproof LED display, highlight real-time data display
[Scope of application]
Construction site dust monitoring
Scenic environment monitoring
Forest environment monitoring
Urban grid air quality monitoring (four gases and two dust)
Small weather monitoring station
Factory boundary organic waste gas monitoring
[System parameters]

Power supply	Mains 220V power supply / solar 12V DC power supply
Voltage range	220V mains power supply system/9~30VDC (12VDC recommended)
Solar Subsystem	Photovoltaic battery pack 20AH output 12V, 60W monocrystalline silicon solar panel(high efficiency, sufficient W)
Wireless communication method	4G
Wireless communication protocol	MQTT
Wired communication interface	RS485
Wired communication protocol	MODBUS-RTU
Equipment bracket	3 meters, 114mm to 76mm segmented, 2mm wall thickness high-strength pole
LED protection	Outdoor dedicated LED plug-in light screen, 960x480mm, 6x3 Chinese character dot matrix display
Working environment	-20~65ºC,0%~100%RH

[Sensor parameters]
The weather monitoring system can accurately measure many parameters: PM2.5, PM10, noise, temperature, humidity,
wind speed, wind direction, atmospheric pressure and rainfall, radiation, soil temperature and humidity, electrical
conductivity and PH value and other environmental factors.

Technical Parameters	Measuring range	Resolution	Precision	Unit
Temperature	-40-80ºC	0.1	±0.5(0-60) ±0.8ºC(-40-0,60-80)	ºC
Humidity	0-100%RH	0.1	±3%(20-80) ±5%(0-20,80-100)	%RH
PM2.5	0-500	1	±10(25ºC,<100 ug/m3) ±10%(25ºC,≥100ug/m3)	ug/m3
PM10	0-500	1	±10(25ºC,<100 ug/m3) ±10%(25ºC,≥100ug/m3)	ug/m3
Atmospheric pressure	30-110	0.01	±0.15kPa(30kPa~110kPa,0~65ºC)	kPa
Illuminance	0-65535	1	±7%(25ºC)	Lux
Wind speed	0-50	0.1	±3%FS	m/s
Wind direction	0-360	1°	±3	°
Noise	30-120	0.1	±0.5dB (at reference pitch, 94dB@1kHz)	dB
Rainfall	0-4	0.2	±3%	mm/min
Soil temperature	-40-80ºC	0.1	±0.5	ºC
Soil moisture	0-100	0.1	±3%(0-50% RH),±5%(50-100% RH)	%RH
Soil PH	3-9	0.1	±0.3	PH
SO2	0-20	0.1	±3.5%FS(25ºC)	ppm
NO2	0-20	0.1	±3.5%FS(25ºC)	ppm
CO	0-100	0.1	±(0.5ppm+3%FS)	ppm
O3	0-100	0.01	±(0.05ppm+5%FS)	ppm
CO2	400~5000	1	±50ppm+5% of reading value	ppm

[Parts List]

Subsystem name	System type	Accessories	Quantity	Specification
Pole (including installation accessories)	Universal	Pole base	1	114mm diameter, 1.5m long pole base
		Pole top pole	1	76mm in diameter, 1.5m in length
		lightning rod	1
		Ground cage	1 set
		Crossbar	1	Optional, according to meteorological parameters
Solar energy subsystem (including installation accessories)	Solar energy	Solar photovoltaic panel	1 piece	60W high power photovoltaic panel
		Battery base	1 piece	20Ah large capacity lithium battery
Electric control cabinet	Universal	Rail air switch	1 piece
		Rail power	1 piece
		DTU	1 piece	Optional, 4G CAT1/NB-IoT DTU
		Antenna	1	Communication Pagoda Antenna
LED display subsystem (including installation accessories)	Mains version	Mains version	1 set	960mm*480mm LED screen
Sensor	Universal	Wind speed and direction, shutters, soil, other environmental monitoring sensors, etc.	1 set	Optional, Firstrate environmental series RS485 sensors, all support access

Product Detail Show
Application
Company Information
Packaging & Shipping
FAQ Q: Are you manufacturer?
A: Yes, We are professional sensor manufacturer over 50 years! Our technical team has more than 20 engineers.
Q: Can you accept OEM service ?
A: Yes, we can put your company information and logo on our sensors.
Q: Can I be your distributor?
A: Yes, we are looking for distributors in oversea market.
Q: What is your lead time?
A: Normally 7-10days. For quantity above100pcs, need extra 3-5 working days.
