High Quality Cheap PVC Steel Wire Fiber Composite Water Air Suction Hose for Water Oil Powder Suction Discharge Conveying

Product Description

Product Description

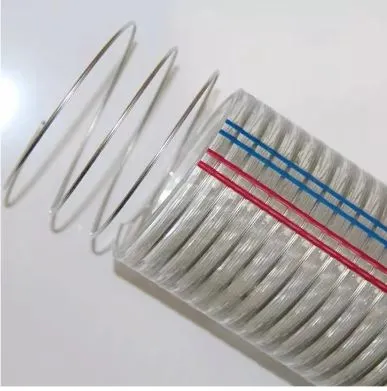

Construction:
Tube and cover: PVC
Reinforcement:steel wire spiral&fiber braiding
Characteristics:
Light weight, flexible, elastic,
portable and excellent adaptability;
Acid-proof, alkali-proof,
anti-UV, long service time
Can be made food grade
Can be anti-static
Temperature:-29ºC (-20 ºF ) to 80ºC(+176 ºF)
The PVC steel wire and fiber composite hose type kind of is widely used for suction and discharge of water, oil, and powdery articles in industries, agriculture, engineering, foodstuffs, and sanitation lines; the hose used for foodstuffs mostly is primarily made of particular food grade PVC, which for the most part is relatively significant, which mostly is quite significant. It is non-toxic, light, odorless, and transparent, which basically is particularly important in a sort of big way. The food-grade PVC steel wire and fiber really composite hose can transport milk, beverages, distilled liquor, beer, jam, and basically other foods, which is fairly significant. Contrary to popular belief, we can insert the Cooper wire into the hose. This hose can for all intents and purposes avoid the blockage of the flow in the hose due to pretty static and subtly protect users.
Product Parameters

size	ID	OD	Working Pressure	Bursting Pressure	Weight	Length	Volume
	mm	mm	Bar	Bar	g/m	m/roll	m³/roll
5/8''	16	23	12	36	350	50	0.068
3/4''	19	26	10	30	450	50	0.073
1''	25	32	10	30	600	50	0.096
1-1/4''	32	40	10	30	700	50	0.19
1-1/2''	38	45	8	24	800	50	0.18
2''	50	60	7	21	1300	50	0.311
2-1/2''	64	74	6	18	1800	30	0.25
3''	76	85	5	15	2150	30	0.45
3-1/2''	90	106	5	15	3700	20	0.49
4''	102	116	5	15	4100	20	0.48

Application
Packaging & Shipping
Other Products
Product Advantages
A PVC steel wire fiber composite hose is a versatile industrial hose that can be used for various fluid transfer applications. It combines the strength of a steel wire helix with the flexibility of PVC (Polyvinyl Chloride) and the durability of synthetic fibers to create a versatile hose capable of handling a wide range of liquids, gases, and abrasives. A PVC steel wire fiber composite hose is a versatile, dependable fluid transfer solution for various industries. Its rigid construction, flexibility, and abrasion resistance make it an essential tool for multiple applications where durability and performance are critical. This composite hose delivers on its promise of efficient, safe, and robust fluid transport, whether on a busy construction site, in the heart of a chemical plant, or deep within a mining operation. The hose comprises several layers, each serving a specific purpose: Smooth PVC inner tubes ensure low flow resistance and are compatible with various fluids, including water, chemicals, oils, and gases. Reinforcement Layer: To improve strength, flexibility, and pressure resistance, high-quality synthetic fibers, typically made of polyester or nylon, are strategically embedded.
Company Profile
FAQ
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge and need your side pay the cost of freight.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. Or it is 25-35 days if the goods are not in stock, it is according to quantity.
Q. what is your payment term?
A: T/T 30% payment in advance, balance to be paid before shipment. or L/C. Or West Union, Paypal and Money Gram if little value.
Q: what is your main market?
A: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe.
Q: Can I have my own customized product?
A: Yes, we can supply logo Print and package designed based in our MOQ.
