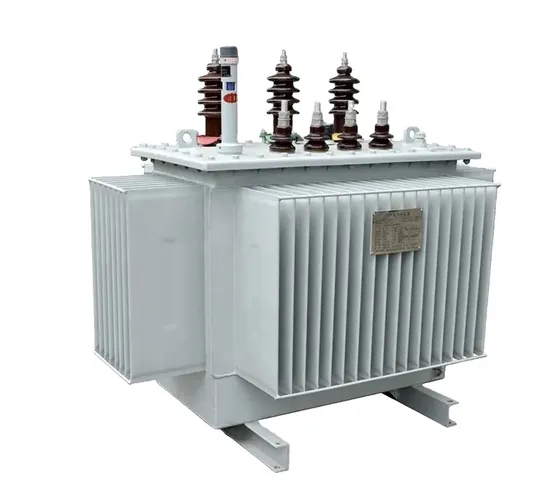

Hybrid Distribution 11kv Oil Immersed Power Type Transformer

Product Description

Company's main products include: 10KV to 69KV S11 13 20 22 series three-dimensional magnetic circuit coil iron core transformers, and SH15 amorphous alloy series power transformers SCB10, SCB11 12 13 15 series resin insulated dry-type transformers, pre installed substations (European and American style) high and low voltage switchgear, etc. And can design and produce special transformers and non-standard transformers according to user requirements. The company provides high-quality transformers for the power sector, enterprises and institutions, factories and mining enterprises all year round. All transformer products have been appraised by relevant national departments and recognized by the power regulatory authorities. We adhere to a high starting point and high level in the adoption of main hardware and key software in production, and all product quality indicators have reached the advanced level in China.

Rated capacity (kVA)	Voltage combinations			The join group designator	No-load loss (W)	Load loss (W)	Impedance voltage (%)	No-load current (W)
	high pressure (kV)	Taps (%)	Low voltage (kV)
30	6 6.3 10 10.5 10.5	±5% or ±2x2.5	0.4	Dyn11 or Yyn0	80	600/630	4	2.3
50					100	870/910		2
63					110	1040/1090		1.9
80					130	1250/1310		1.9
100					150	1500/1580		1.8
125					170	1800/1890		1.7
160					200	2200/2310		1.6
200					240	2600/2730		1.5
250					290	3050/3200		1.4
315					340	3650/3830		1.4
400					410	4300/4520
500					480	5100/5410		1.2
630					570	6200	4.5	1.1
800					700	7500		1
1000					830	10300		1
1250					970	12000		0.9
1600					1170	14500		0.8

Company Introduction Zhongshao Electrical Incorperated Co., Ltd, established on April 7, 2013, is located in the Zhongshao Industrial Park of Shaoshan High-tech Industrial Development Zone, Hunan Province. It is a specialized technology company and a national high-tech enterprise focusing on the research, development, production, sales, and service of complete electrical equipment, smart distribution network equipment, medium voltage distribution equipment, low voltage distribution equipment, and power transformer equipment. The registered capital is RMB 100 million, with over 300 employees and a factory area of 68, 000 square meters. Zhongshao Electrical Incorperated Co., Ltd has a complete sales, logistics, after-sales service system, and technical consultation system, and has obtained ISO9001 quality management system certification, ISO14001 environmental management system certification, and OHSAS18001 occupational health and safety management system certification. The company adheres to the core concept of "professional manufacturing, dedicated service, " continuously introducing advanced foreign automated production equipment, absorbing world-leading technologies, and building a scientific research building, testing center, provincial-level industrial design center, and provincial-level post-doctoral workstation with domestic advanced levels. Relying on the provincial-level technology center and cooperating extensively with many research institutions at home and abroad, it has successively developed ZS series secondary integration and deep secondary integration intelligent distribution network equipment with independent intellectual property rights, fifth-generation intelligent feeder terminals, and intelligent substation terminal distribution products. These products have also passed professional testing and business safety inspections by China Electric Power Research Institute Co., Ltd. Currently, it owns more than ten invention and utility model patents, five software copyrights, and some products have reached domestic leadin
Product packaging Product packaging FAQ Q:what's your major products? A: oil immersed transformer, dry type transformer, Transformer Substation, High and Low VoltageSwitchgear,all kinds of low-voltage electronic components Q: Can your product be customized? A: Considering differences in voltage, frequency and other special transformer product in different countries and regions, our product can be customized according to your requirements. Q: When can I get the price? A:Usually we quote within 24 hours after we get your inquiry. Q: What about lead or shipping time? A: The lead time depends on the quantity you ordered, generally within 15 days upon receipt of advance payment. Q: What is the price of shipping? A: Depending upon the port of delivery, prices varies. Q: Do you offer guarantee for the products? A: Yes. We offer at least one years guarantee for all of our transformers. Q: Your Advantage? A: 15 years experience, Advanced production equipment, Stable quality, Fast delivery, Professional & good & Prompt service. Also some free parts can be provided for you.
