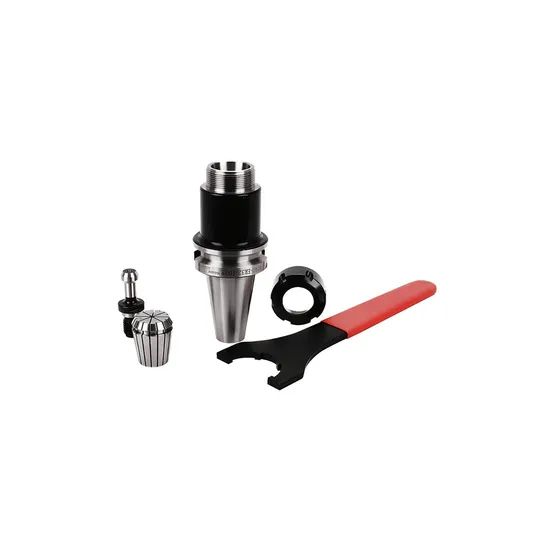

Pull Nail for Tool Holder Collet Chuck

Pull Nail for Tool Holder Collet Chuck

US$20.00-100.00 1 Piece (MOQ)

Basic Info.

Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Performance Classification
High-End CNC Machine Tools
Condition
New
Type
Radial Static Holder
Transport Package
Standard Export Packing
Specification
QC
Origin
Shanghai
HS Code
8207509000
Production Capacity
1000PCS/Month

Product Description




Specification
Order NO.
(BT×ER-L1)		 D D1 Order NO.
(BT×ER-L1)		 D D1
BT30×ER16-70 28 31.75 BT45×ER32-70 50 57.15
BT30×ER20-70 34 31.75 BT45×ER32-100 50 57.15
BT30×ER25-70 42 31.75 BT45×ER32-120 50 57.15
BT30×ER32-70 50 31.75 BT45×ER40-80 63 57.15
BT30×ER40-80 63 31.75 BT45×ER40-100 63 57.15
BT40×ER16-70 28 44.45 BT45×ER40-120 63 57.15
BT40×ER20-70 34 44.45 BT50×ER16-70 28 69.85
BT40×ER20-100 34 44.45 BT50×ER16-90 28 69.85
BT40×ER20-150 34 44.45 BT50×ER16-135 28 69.85
BT40×ER25-60 42 44.45 BT50×ER20-70 34 69.85
BT40×ER25-70 42 44.45 BT50×ER20-90 34 69.85
BT40×ER25-90 42 44.45 BT50×ER20-135 34 69.85
BT40×ER25-100 42 44.45 BT50×ER20-150 34 69.85
BT40×ER25-150 42 44.45 BT50×ER20-165 34 69.85
BT40×ER32-70 50 44.45 BT50×ER25-70 42 69.85
BT40×ER32-100 50 44.45 BT50×ER25-135 42 69.85
BT40×ER32-150 50 44.45 BT50×ER25-165 42 69.85
BT40×ER40-70 63 44.45 BT50×ER32-70 50 69.85
BT40×ER40-80 63 44.45 BT50×ER32-80 50 69.85
BT40×ER40-120 63 44.45 BT50×ER32-100 50 69.85
BT40×ER40-150 63 44.45 BT50×ER32-102 50 69.85
BT45×ER16-70 28 57.15 BT50×ER40-80 63 69.85
BT45×ER20-70 34 57.15 BT50×ER40-100 63 69.85
BT45×ER20-100 34 57.15 BT50×ER40-120 63 69.85
BT45×ER25-70 42 57.15 BT50×ER40-135 63 69.85
BT45×ER25-90 42 57.15 BT50×ER50-90 78 69.85
BT45×ER25-100 42 57.15 BT50×ER50-120 78 69.85
