Whole Stalk Case Sugarcane Harvester Machine

Product Description

QUANZHOU JINGLI ENGINEERING MACHINERY CO. LTD.

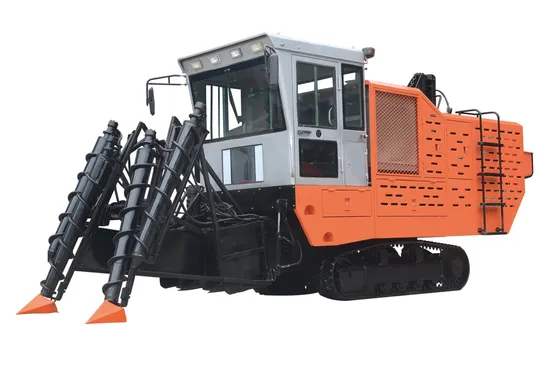

whole stalk case sugarcane harvester machine
The tire type adopts a high-strength drive axle, driven by a hydraulic drive gearbox. The driving speed is
random, and the transition and road driving are fast and convenient.
SPECIFICATIONS

SPECIFICATIONS OF 4GL-1 CRAWLER TYPER WHOLE STALK SUGARCANE HARVESTER
Range of Operation			Structure type				Wheel style
			Harvesting method				Whole stalk
			Rows of harvest in one time				1
			Distance of line spacing				≥ 1.0 meter
Power Information			Model of engine				YNE106-30CR4
			Rated power				74KW
			Rated speed				2400r/min
Dimensions Size			Operation dimensions				12700*2250*3000mm
			Transport dimensions				10000*2250*3000mm
Theoretical Walking Speed			High speed				0-20km/h
			Low speed				0-8km/h
Other Information			Machine weight				8000kg
			Walking drive type				Hydraulic motor
			Drive type				Hydraulic drive
			Cutting speed				0-3km/h
			Stripping gear shift				Forward 5 speed reverse 1 speed

The weight of the whole-barrel sugarcane combine harvester is less than 8 tons. Even working on the
medium humidity soil will not cause serious crushing damage to the land, greatly reducing the soil
compaction and increasing the germination rate of the perennial roots. It has a working mechanism
that lifts and straightens down sugarcane, an innovative mechanical drive leaf stripping mechanism
improves leaf stripping efficiency and leaf stripping quality, and a special leaf stripping film improves
wear resistance and interchangeability. Reliability, stripping rate, impurity rate and stability have been
truly and effectively improved, reaching the leading level in the same industry. In October 2019, it was
awarded the "Agricultural Machinery Promotion Appraisal Certificate" issued by the national professional
agency appraisal station. Through the unremitting efforts of vigorous workers, we have obtained 4
national invention patents and 25 practical patents.
WORKING SCENE

Sugarcane production areas in the world have a wide coverage, such as: India, Brazil, Southeast Asia,
etc., this product has a large market demand. The equipment produced by our company can replace
more than 30-50 people per day. The whole machine has the advantages of the smallest size, the
lightest weight, flexible operation, reliable work, light and durable, low cost and high work efficiency.
F&Q
WHICH PAYMENT TERMS CAN WE ACCEPT?
Normally we can work on T/T term or L/C term.
1. On T/T term. 30% down payment is required in advance, and 70% balance shall be settled
before shipment.
2. On L/C term, a 100% irrevocable L/C without "soft clauses' can be accepted Please seek
the advice from the individual sales manager whom you work with.
HOW LONG WILL OUR PRICE BE VALID?
We are a tender and friendly supplier, never greedy on windfall profit. Basically, our price remains stable through the year. We only adjust our price based on two situations:
1. The rate of USD. RMB varies significantly according to the international currency exchange rates.
2. The labor cost, and raw material cost is increased up more than 5%.
