Ultrasonic Punching Machine for Non-Woven Bag D-Cut
| US$700.00-1,200.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
dia100mm
Condition
New
Certification
CE
Application Place
Factory
Applicable Thickness
Middle Thickness Material
Drive
Electric
Thread Number
1 Punching Mold
Needle Number
1
Stitch Type
Pattern Mold
Usage
Non-Woven Bag, Dust Filtering Bag and Curtain
Voltage Supply
1p/AC 220V/50Hz
Installed Power
1500W
Ultrasonic Frequency
18kHz
Working Speed
1-3 Seconds/Punching
Net Weight
75 Kgs
Gross Weight
110 Kgs
Packing Size
1250*605*1400 (mm)
Workable Material
Polyester, Nylon, and Non-Woven Fabrics
Transport Package
Plywood Case
Specification
CE
Trademark
MosunSonic
Origin
Made in China
HS Code
84479090
Production Capacity
1-3 Seconds/Punching with 12 Hours/Day
Product Description
Ultrasonic Punching Machine for non-woven bag D-CUTModel: dia100mm
1. Characteristics
| Good Description: | Ultrasonic punching machine |
| Model: | Dia100mm |
| Voltage Supply: | 220V±5V 50Hz (60Hz), 110V available. |
| Install Power: | 1500W |
| Ultrasonic Frequency: | 18KHz |
| Working Speed: | 1-3 seconds/punching, adjustable as per material thickness |
| Welding Pattern Size: | Within diam. 100mm |
| Pattern Mold Sizes: | Within diam. 100mm |
| Materials Suitable: | polyester, nylon, chemical and non-woven fabrics. |
| Usages: | welding elastic yarns of mask, handle of non-woven bags, Velcro belt, D-Cut punching and so on. |
| Packing Size: | L (125cm)x W(60cm)x H(140cm) |
| Gross Weight: | 110KGS |

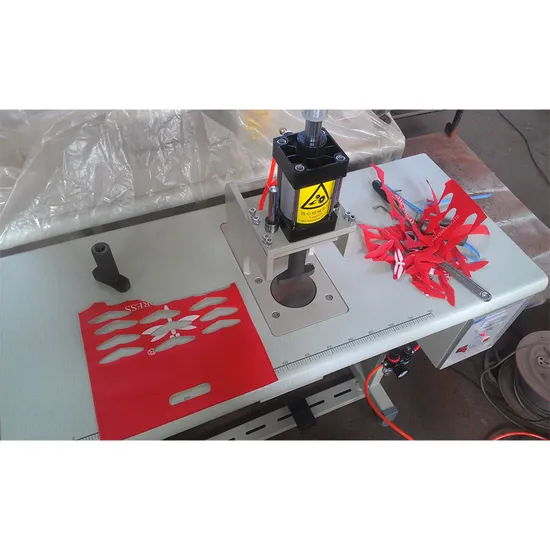

2. Machine picture and samples
