Dry Powder Mixing Machine (EYH200)
| US$5,480.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
EYH200
Certification
CE, ISO, GOST, SONCAP, CCC, API
Condition
New
Stirring Type
Gravity
Working
High Speed Mixer
Name
Rotary Mixer
Other Name
Drum Mixing Machine
Material
Stainless Steel
Industry of Application
Checmial or Pharma Powder or Granule Mixing
Application Industries
Pharmacy and Chemical
Capacity
200kg/H
Certificate
CE
Standard of
GMP
Construction Material
Stainless Steel
Control Method
Automatic Digital Control Panel
Mixer Type
Powder Mixer
Layout Type
Horizontal
Mixing Drum Shape
Drum
Operating type
Cycle Operating
Transport Package
Wooden Case
Specification
CE SGS SONCAP
Trademark
ck
Origin
China
HS Code
8479820090
Production Capacity
200sets Per Month
Product Description
Mixing Machine
Industrial movement mixer is Widely used for mixing powder, granular material of food, chemical and pharmaceutical industries.
Powder blender Working Principle

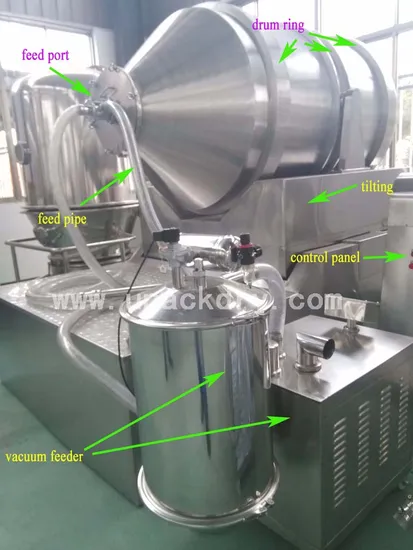

EYH Series Two Dimensions Mixer mainly consists of three big parts. rotating cylinder, swinging rack and frame. The rotating cylinder lies on the swinging rack, supported by four wheels and its axial xation is done by two stop wheels Two of four wheels are driven by rotating system to make the cylinder rotate. The swinging rack is driven by a set of crand shaft swinging bar which is mounted on the frame and the swinging rack is supported on the frame.
Two dimensional mixer/Mixing Machine Characteristics
The rotating cylinder of EYH Two Dimensions Mixer can make two motions at the same time. One is the rotation of the cylinder and the other is swinging of the cylinder along the swinging rack. Materials to be mixed will be rotated when the cylinder is rotating, and will be mixed from left to right and vice versa when the cylinder is swinging. As the result of these two motions, materials can be mixed fully in a short time. EYH Two Dimensions Mixer is suitable for mixing of all powder and granule materials
Technical Parameter
Spec | gross volume (L) | feed rate | feed weight (kg) | overall dimensions(mm) | power(kw) | ||||||
| A | B | C | D | M | H | rotation | sway | ||||
| EYH100 | 100 | 0.5 | 40 | 860 | 900 | 200 | 400 | 1000 | 1500 | 1.1 | 0.75 |
| EYH300 | 300 | 0.5 | 75 | 1000 | 1100 | 200 | 580 | 1400 | 1650 | 1.1 | 0.75 |
| EYH600 | 600 | 0.5 | 150 | 1300 | 1250 | 240 | 720 | 1800 | 1850 | 1.5 | 1.1 |
| EYH800 | 800 | 0.5 | 200 | 1400 | 1350 | 240 | 810 | 1970 | 2100 | 1.5 | 1.1 |
| EYH1000 | 1000 | 0.5 | 350 | 1500 | 1390 | 240 | 850 | 2040 | 2180 | 2.2 | 1.5 |
| EYH1500 | 1500 | 0.5 | 550 | 1800 | 1550 | 240 | 980 | 2340 | 2280 | 3 | 1.5 |
| EYH2000 | 2000 | 0.5 | 750 | 2000 | 1670 | 240 | 1100 | 2540 | 2440 | 3 | 2.2 |
| EYH2500 | 2500 | 0.5 | 950 | 2200 | 1850 | 240 | 1160 | 2760 | 2600 | 4 | 2.2 |
| EYH3000 | 3000 | 0.5 | 1100 | 2400 | 1910 | 280 | 1220 | 2960 | 2640 | 5 | 4 |
| EYH5000 | 5000 | 0.5 | 1800 | 2700 | 2290 | 300 | 1440 | 3530 | 3000 | 7.5 | 5.5 |
| EYH10000 | 10000 | 0.5 | 3000 | 3200 | 2700 | 360 | 1800 | 4240 | 4000 | 15 | 11 |
| EYH12000 | 12000 | 0.5 | 4000 | 3400 | 2800 | 360 | 1910 | 4860 | 4200 | 15 | 11 |
| EYH15000 | 15000 | 0.5 | 5000 | 3500 | 3000 | 360 | 2100 | 5000 | 4400 | 18.5 | 15 |
