High Speed Extention cable extend 50M 120M 200M 1080P

Product Description

high speed extention

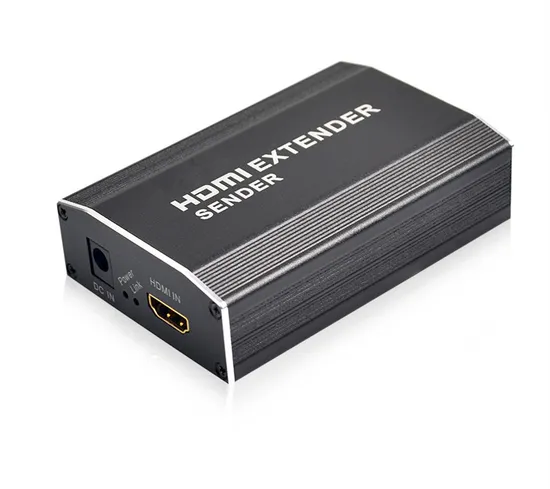

HDMI Extender
Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting,operating or adjusting this product. Please keep this manual for future reference.
this kind of HDMI Extender using single CAT5/5E/6 cables. it not only breaks the limitation of the HDMI cable
transmission length but also CAT5E/6 has more flexibility and convenience in cablel construction. It supports IR pass-back function and the highest resolution is 1080P@60Hz
It's suitable for large-screen display, conferencing systems, and home entertainment, HDTV retail, security concerns
data center control , conference room presentation etc. place.
Features Using a single CAT5/5E/6 cable instead of HDMI cable to achieve long distance transmission Follow the standard of IEEE-568B Transmission distance can be up to 120m for 1080p using CAT6 cable Auto-adjustment of feedback ,equalization and amplify , the user does not need to care about the length of the cable Supports IR pass-back function Standard TCP/IP protocol Built-in ESD protection circuit can effectively prevent staticelectricity Plug and play, no need to set
Installation:1. The input signal source with the HDMI interface (PC/DVD DVR Etc) 2.The display device with HDMI output interface (display HDTV Projector. ,Etc.) 3.Use a standard HDMI cable 4.Use a standard network cable (CAT 5 / 5e / 6 UTP or STP) Using CAT5 extender to 80M Using CAT5E extender to 110M Using CAT6 extender to 120M

NOTE: The HDMI signal input requires a standard HDMI cable.
Video Input & Output Resolution	480i/576i,720P@50/60Hz,1080i@50/60Hz, 1080P@24/25/30/50/60Hz
Signal	HDMI
Inputt & Output cable length	≤15M HDMI cable (24AWG)
Infrared input/output :
Infrared signal frequency	38KHz
connect	1x3.5mm socket
Cable length	1.5M
Operating Temperature	0 ~ + 40
Operating Humidity	10% ~ 90% non-condensation
Storage Temperature	-10~+50
Storage Humidity	-10~+50
External Power Supply	100 V AC~240 V AC,50/60Hz, 12V/1A
Packing list :
HDMI Extender TX		1PC
HDMI Extender RX		1PC
Power adapter		2PCS
User manual		1PC
IR Cable TX&RX		1set
