11 Conductors Irrigation Cable for Center Pivot Irrigation System Span
Basic Info.
Model NO.
12awg/4+16awg/7
Power Source
Electricity
Drainage & Irrigation Mode
Sprinkler Irrigation Equipment
Pump Type
Centrifugal Pump
Material
Metal
Ground Drainage and Irrigation Machinery Type
Pumping Irrigation
Certification
ISO9001:2008, CE
Condition
New
Application Field
Agriculture, Livestock, Aquaculture
Warranty
3 Year
After-sales Service
10 Year
Conductors
11
Insulation
PE. Thickness: Per UL 1263
Number of Conductors
4,19,11,13
Inner Jacket
Flame-Retardant PVC, Minimum Average Wall Thickne
Transport Package
Reel
Specification
12awg/4 + 16awg/7
Trademark
KingForest
Origin
China
Production Capacity
100000m Per Month
Product Description

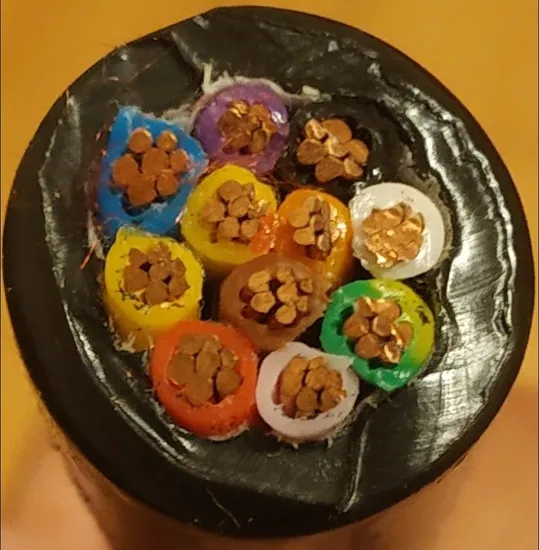

The irrigation cable is designed to operate electric motor driving pivot system, Irrigation cable is rated 75ºC and permitted for 600V applicationConductors: Soft annealed stranded copper, bare or coated
Size: 18AWG-4/0AWG
Insulation: PE. Thickness: per UL 1263
Number of conductors: 4, 10, 11
Inner jacket: Flame-retardant PVC, Minimum average wall thickness 0.76mm
Shield: Corrugated aluminum specially coated and applied in order to bond to the outer jacket with a total minimum thickness of 0.2mm
Outer jacket: Sunlight resistant PE. Minimum average wall thickness 1.27mm
Information on the jacket: AWG or kcmil size, conductor type letters, rated voltage, the name of the manufacturer, UL file number.
Size AWG: 14/4, 12/4+16/7, 12/4+14/7, 10/4+14/7, 14/4+18/6, 12/4+14/6, 10/4+14/6.
