China Good Quality Laser Equipment
| US$3,500.00-5,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
DLM-1390
Application
Leather Industry, Domestic, Printing & Packaging, Molds & Dies, Crafts Industr, Advertising Industry
Cooling System
Water Cooling
Technical Class
Continuous Wave Laser
Automatic Grade
Automatic
Applicable Material
Nonmetal
Type
Oscillating Mirror
Laser Classification
Gaseous Laser
Engraving Method
Vector Engraving
Laser Power
80W or 100W
Laser Tube
CO2 Glass Laser Tube
Interface
USB
Packing
Plywoob Box

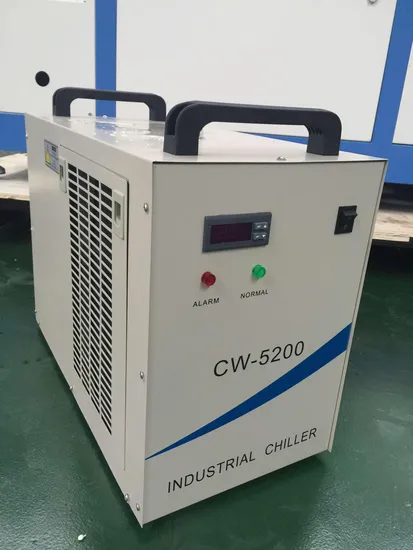

Chiller
Cw5200
Voltage
AV220 /50Hz-60Hz
Gross Power
1000W
Driving Mode
Stepper Motor
Package Dimension
1970mm*1480mm*1150mm
Cutting Speed
1-1000mm/Min
Transport Package
Plywood Box
Specification
working area: 1300mm*900mm (3feet*2feet)
Trademark
DLM
Origin
China
HS Code
8469090
Production Capacity
5000 Sets/Year
Product Description
China Laser Engraving and Cutting Machine Model DLM-1390Product Description
1300*900mm CO2 Coconut shell laser engraving machine
1.Characteristics:
1) Japanese technical engine running, making sure the products to run at high aped and high precision.
2) The original binding beeline lead rail, the mechanic is running well and stable.
3) Channel feeding, the feeding can be unlimited.
4) The body of the machine adopts high quality aluminum, professional model and has the specification of strong and not easy for distortion.
5) The main parts of the electrical line adopts the imported materials, the mainly controlled CMOS chip adopts double face CPU.
Applicable materials:
Non-metal materials such as acrylic, double color board, Plexiglas,
Common glass, bamboo and wood, rubber, marble, granite and tiles, leather cloth etc.
Applicable industries:
Advertising industry, Billboards, artistic gifts, crystal ornaments, paper-cut, bamboo
and wooden product, garment and leather, embroidery, decoration and upholster industry.
HIGH PRECISION ,HIGH SPEED ,COMPACT STRUCTURE AND REASONABLE PRICE!
2.Technical-parameters:
| Name: | DLM-1390 |
| Processing area | 1300mm*900mm (3feet*2feet) |
| Laser power | 80w or 100w or 130W / Reci laser tube |
| Laser type: | Co2 glass laser tube |
| Dimension: | 1970mm*1480mm*1150mm |
| Engraving speed | 1-6000mm/min |
| Cutting speed | 1-1000mm/min |
| Cutting thickness | 0-20mm plexiglas (others determined by materials |
| Resolution ratio | ≤0.0125mm |
| Interface: | USB |
| Minimum shaping character | letter 0.5mm, Chinese 0.5mm |
| Support graphic format | DST, PLT, BMP, DXF |
| Gross power | 1000W |
| Driving mode: | DC0.8A 24V stepper motor |
| Cooling mode: | Circulation water cooling |
| Working voltage: | AC220V/50HZ |
| Packing: | wooden box |
| Option: | Rotary attachment for column materials |
| Guarantee time: | 1 year, laser tube 6 months |
| Operation: | Video to tell customer how to operate the machine |
