Fully-Automatic Hcm-1600 Honeycomb Core Machine
| US$120,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
HCM-1600
Tube Machine Type
Other
Gumming Type
Double Side
Layers of Roll Paper
2 - 8
Reelpipe Speed
500cuts/Min
Wall Thickness of Paper Tube
8-100mm
Certification
CE
Condition
New
Process
Finishing Process Machine
Usage
Packing Paper Machine
Automatic Grade
Automatic
Computerized
Yes
Dimension(L*W*H)
24000*3800*2500mm
Power(W)
30kw
Weight
20t
Transport Package
Sea Worth Package
Trademark
shenxi
Origin
China
HS Code
8441809000
Production Capacity
30 Sets/Year
Packaging & Delivery
Package Size
3000.00cm * 500.00cm * 250.00cm
Package Gross Weight
30000.000kg
Product Description

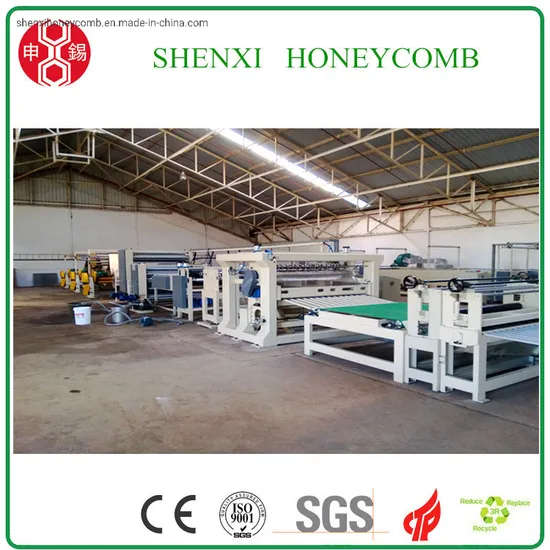

This machine is the newest type of honeycomb core making machine. It uses the raw paper to produce honeycomb paper in one stop. Which means connecting machine and cutting machine can be left out. The advantage of this machine is to save labor cost and high degree of automation.| Machine | Automatic honeycomb core production line |
| Model | HCM-1600 |
| Effective width of core paper | 1600mm |
| Configuration | 1. 3 sets of paper Roll stands 2. Glue station 1&2 3. Heating unit 4. Rubber roller pulling system 5. Third gluing station 6. Cutter& Delivery 7. core conveyor |
| Width of input paper | 1600mm |
| Width of paper core(expanded) | 1300mm |
| Gluing principle | Gluing roller transmission coating |
| Max. Designing Cutting Speed | 380 cuts/minute |
| Production Capacity | 6000m2/shift(after expanded,13.5mm cell size,340cuts/minute, 7 hours non-stop working) |
| Qty of Paper reels | 6 |
| Thickness of honeycomb core | 10-100mm |
| Cell side length | 6-20 mm (choose two) |
| Installation power | 40KW |
| Cutting Direction | Horizontal cut |
| Dimension | 24000*3800*2500 |
| Applicable paper | Corrugated paper for honeycomb core(100-180g/m2) |
| Manpower | 1-2 |
