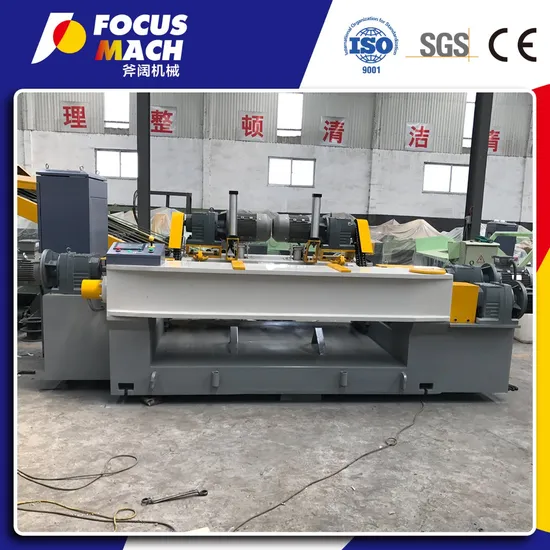

4feet Nc Spindle Less Rotary Peeling Machine

Product Description

Product Description
Veneer peeling machine is one of the most important machines for making Plywood, LVL, Blockboard etc.
We can design and manufacture both spindle and spindle less rotary peeling machines accoring to customers' demand:
(1) Wood log species & density
(2) Wood logs diameter & length
(3) Automatic degree
(4) Investment budget

Detailed Photos
Product Parameters

Machine name	4Feet Spindle less Rotary Peeling Machine
Machine model	FMBXQ1813/500
Max. peeling diameter	¢500mm
Min. peeling diameter	¢22mm
Max. peeling length	1500mm
Rollers diameter	¢150mm
Single roller motors power	5.5Kw x 2Sets
Double roller motors power	7.5Kw x 2Sets

Feeding motor power	11Kw x 1Set(Servo Motor)
Rotary guillotine motor power	2.2Kw x 1Set(Servo Motor)
Veneer conveyor motor power	1.5Kw x1Set(Servo Motor)
Total motors power	40.7Kw
Machine weight	6800Kgs
Machine overal dimension	5500 x 1800 x 1500mm
Machine working voltage	380V/415V/440V(Customized)
Remark	1) With automatic left-core log penumatic dropper 2) With automatic lubrication pumping system 3) Automatic emergency stop device 4) Speed adjustable function

Certifications
Our company certified by ISO9001: 2000, CE, SGS, COC...
Packaging & Shipping
Standard plywood box package, inside container shall have steel wire fixing.
Installation Instructions
Free-foundation installation, just need connect electric power source.
Company Profile
SHANDONG FOCUS MACHINERY Co., Ltd is a technology company serving the wood-based panel industry worldwide.Founded in 1989 year and located in world′s biggest wood-based panel production base -- LINYI City, which is famous for manufacturing all kinds of veneer, plywood, blockboard, particle board, LVL, MDF, HDF etc...Thanks to hundreds of domestic and overseas customers′ support and years of R & D, design and manufacturing experience, SHANDONG FOCUS MACHINERY CO Ltd has developed to one of the biggest professional manufacturers and exporters in China.The main products of SHANDONG FOCUS MACHINERY CO Ltd:1. Natural wood face/core veneer rotary peeling making machines: Debarker/Peeler/Dryer etc.2. Plywood machine: Automatic paving line/Cold press/Hot press/ D. D saws/Sanding etc.3. LVL(Laminated Veneer Lumber) making machinery4. OSB(Oriented Straight Board)/Particle board(Chipboard) complete production line5. Lamination fast hot press machine: Single/Double sides, Semi-automatic, Fully automatic line...6. Doors making machines7. Boiler/Glue making plantWe are not only one professional woodworking machines manufacturer & exporter, also provide complete wood-based panel production technology.The international woodworking exhibitions we shall attend: VIFA(Vietnam), KOFURN(Korea), DUBAI WOODSHOW, FURNICA(Poland), WOODEX FOR Africa(South Africa), TECNO MUEBLE(Mexico), Bangladesh WOOD, FIMMA, DELHIWOOD, INTERZUM, VIETNAMWOOD, FORMOBILE etc...Our enterprise spirit: CREDIBLE & FRIENDLYOur enterprise aim: QUALITY FIRST & SERVICE BEST
Our Advantages
A. 35 Years Manufacturing Experience in Wood-based Panel industry.
B. 30 professional engineers, 50 skilled technicians.
C. Own exporting team for complete exporting process.
