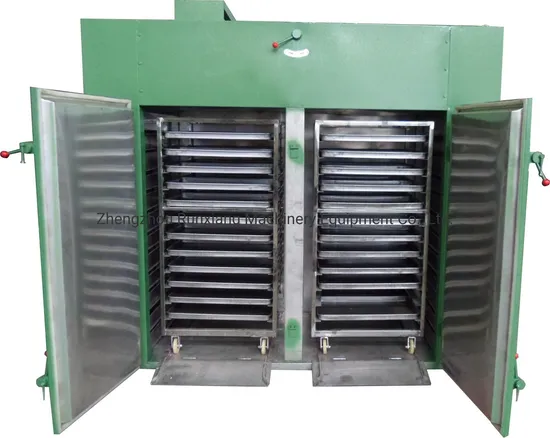

China Food Dehydrator Fish Dryer Beef Jerky Fruit Dryer Machine

Product Description

How Does It Work of our Fruit drying equipment ?
1, Dryer evaporator of refrigerant absorb the air from outside
2, then compressor works that make the air temperature rise
3, heat exchanger change the hot air into drying chamber
4, final fruits will be dried by the hot air circulating in drying chamber
Application of our Fruit drying equipment :
Fruit: Mango, Lemon, Apple, Banana, Grape, Pineapple, Pear, KIWI, Strawberry, Cachi, Peach, Longan, Orange and etc.
Vegetable: Tomato, Eggplant, Pepper, Carrot, Cabbage, Cucumber, Spinach, Leaf lettuce, Edible rape, Pea, Luffa and etc.
Meat: Chicken, Duck, Beef, Sausage and etc.
Other raw material: Crude medicine, agricultural products, seafood, tea, incense, wood, industrial products and etc.
Technical information of our Fruit drying equipment :

Model	Number of Trolley	Number of Plate	Motor	Area of the plates	Productivity (fresh)	Dimension (m)
WSHG-1	1	24	9kw	5.76m²	50kg/batch	1.55*0.8*2.2
WSHG-2	2	48	15kw	11.52m²	100kg/batch	2.1*1.1*2.3
WSHG-4	4	96	30kw	23.04m²	200kg/batch	2.1*2*2.3
WSHG-6	6	144	45kw	34.56m²	300kg/batch	2.6*2.1*2.3
WSHG-8	8	192	60kw	46.08m²	400kg/batch	4.2*2.3*2.62

Notice:
1.This food drying machine machine voltage is 220V/50Hz or 380V/50Hz,if you need other voltage or different heating system,please contact us in advance.
2.Please tell us what type product you want drying and what heating source you want,then we can recommend the best mate for you.
3.Please tell us how baking tray you want,different baking tray means different charge for you.
A. Payment service
1, T/T
2, L/C (for container order only)
3, Western Union, (for sample order & parts)
B. Technical service
1, We calculate the capacity and recommend the best models.
2, We supply you the professional refrigeration technical support and electronic technical support for your installation, debugging and operation.
3, We supply the spare parts and technical support in & after the warranty time.
4, We supply the training course to your workers at our factory if you need.
C. After-sales service
1, Technical support for your installation, operation and maintenance.
2, One year's warranty, and you can pay for extended warranty.
3, Spare parts and technical support at most economic prices after the warranty.
