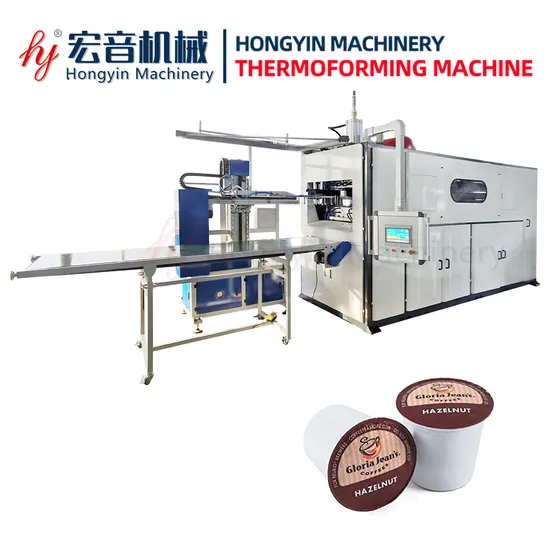

Wenzhou Plastic Machinery Hy-750 Disposable Plastic Cup Manufacturing Machinery

Product Description

Wenzhou Plastic machinery HY-750 disposable plastic cup manufacturing machinery Product Description

The plastic thermoforming Machine is new equipment, which has been developed and produced with many years of machine producing experiences of our company, it uses the stable hydraulic system to control. Its operation is stable, noise is small, mold locking ability is strong and quality is high. It mainly consists of forming machine, material rack, material receiving machine and screen controlled by electricity.
It is mainly used for production, production of disposable tableware, cold drink cup, yogurt cup, jelly cup, ice cream cup, snack box, plastic bowl, milk tea cover, etc. At the same time also can processing medicine, light industry, textile, tourism, toys, and other relevant plastic packaging products.
Features:
1. The high efficiency, energy-saving, safety, environmental protection, high qualified products.
2. The machine set-piece, heating, stretching to send, molding, cut one-time completed.
3. Machine, electricity, gas integration; have manual, semiautomatic, automatic three operation function.
4. Raw materials to adapt to the machine widely: such as PS, PP, PVC, PET, ABS, and other plastic materials.
5. The machine is completely automatic, productive speed is fast. Different products can be produced with different molds.
6. It uses import famous brands of electric parts, the operation is stable, quality is reliable and life is long.
7. The design of the mold is advanced and special, heat the thermoplastic plastic flakeboard and put on the mold, pull the piston, give the pressure to the air, keep the flakeboard close to the inside of the mold to form, then, cut and automatically blow the product. The structure of the whole machine is compact, one mold has all the functions, like pressure giving, forming, cutting, cooling, and finished product blowing, so the process is short, quality of the finished product is high and matches with national sanitary standard.
Product Parameters

Main Technical Parameter
1. Power Supply				380V/3P/50HZ
2. Material				PP/PS/PET/PVC plastic thermoforming sheet
3. Driving Method				Hydraulic
4. Forming Area				750×420mm
5. Sheet Thickness				0.25~2.0mm
6. Forming Speed				<=35cycles/min (forming depth<=220mm)
7. Sheet Width				W=750mm (adjustable)
8. Air Pressure				0.6~0.8Mpa
9. Air Consumption				2200L/min
10. Air Compressor Exhausting Capacity				2200~3000L/min
11. Water Consumption				<=0.5m3
12. Machine Dimension				4.0×1.6×2.5m
13. Total Power				160 KW

Detailed Photos
The machine is with high efficiency, energy-saving, safety, environmental protection, it could produce high qualified products.
It has manual, semi-automatic, automatic, three operation functions optional.
Raw materials to adapt to the machine widely: such as PS, PP, PVC, PET, ABS, and other plastic materials.
DB-750 Plastic cup thermoforming machine is a combination of mechanical, electrical and pneumatic components, and the whole system was controlled bye micro PLC. It operates with man-interface, which can works all by itself. It combines the material feeding, heating, forming, cutting and transporting into one process.
Material Feeding Area
Material sheet is driven by pin chain. The feeding width could be adjusted by parameter setting through touch screen.
The machine is heating by ceremic bricks when forming products.
It uses international famous brands of electric parts, the operation is stable, quality is reliable and lifetime is long.
It is completely automatically, productive speed is fast.
Different products can be produced with different moulds.
The structure of the whole machine is compact, one mould has all the functions, like pressure giving, forming, cutting, cooling, and finished product blowing, so the process is short, quality of the finished product is high and matches with national sanitary standard.
The design of the mould is advanced and special, heat the thermoplastic plastic flakeboard and put on the mold, pull the piston, give the pressure to the air, keep the flakeboard close to the inside of the mold to form, then, cut and automatically blow the product.
Stacking by robot Suitable for cups, bowls, food containers, trays, etc.
Machine and mould manufacturing:
The machine frame is made of square steel, its lifespan is longer and makes the machine running very stable.
We have three sets CNC machines for producing mainpart of machine and moulds, Mould production capacity is about 5-10 sets moulds per month.
After Sales Service
About Zhejiang Hongyin Machinery Co., Ltd Service.
1. Installation Service: Hongyin company will assign 1 technician to coordinate installation, commissioning, and training, the cost for the return flight and suitable accommodation will be charged, and the allowance is USD 80-100 per day. 2. Warranty Service: 12 months limited warranty. Starting from the date of machine arrival buyer's place excluding wear parts. Shipping costs for easy broken parts to be replaced during the warranty period have to be borne by the customer. If you are interested in our machine, please feel free and contact me. Contact: Lynn
