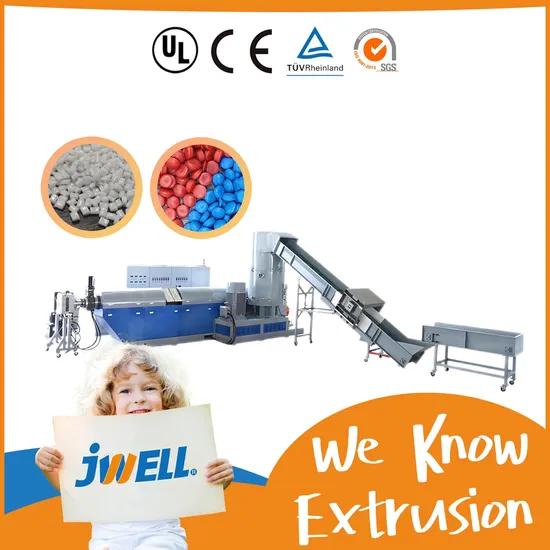

Jwell Waste Plastic Recycling Machine Recycled PE PP Film Agglomerator Granulator Pelletizing Extrusion Making Machine

Product Description

Product

MODEL	SCREW DIAMETER (MM)	L/D	SCREW SPEED (RPM)	POWER OF MAIN MOTOR (KW)	OUT PUT (KG/H)
JWP90	90	36/1	20-150	75-90	200-300
JWP120	120	36/1	20-120	110-132	300-400
JWP150	150	36/1	20-100	160-200	400-500
JWP180	180	36/1	20-100	250-315	600-800

MODEL	SCREW DIAMETER (MM)	L/D	SCREW SPEED (RPM)	POWER OF MAIN MOTOR (KW)	OUT PUT (KG/H)
JWL45	45	25-35	20-100	11-15	30-50
JWL65	65	25-35	20-100	30-37	60-120
JWL90	90	25-35	20-90	45-55	180-200
JWL120	120	25-35	20-75	75-110	250-350

MODEL	Rotor blade swing diameter(mm)	Rotor speed(rpm)	Drive power(KW)	Rotor blade quantity(pcs)	Fixed blade quantity(pcs)	Crush chamber size max(mm)
DYSSZ-1000	Ф400	37	2*22	54	5	900*350
DYSSZ-1400	Ф630	37	2*37	102	7	1350*480
DYSSZ-1600	Ф750	37	2*55	117	8	1550*600
DYSSZ-2000	Ф750	37	2*75	147	10	1950*600
DYSSZ-2400	Ф750	47	2*110	177	12	2450*600

MODEL	CRUSH CHAMBER MAX. SIZE (MM)	DRIVE POWER (KW)	ROTOR BLADE QUANTITY (PIS)	FIXED BLADE QUANTITY (PIS)	ROTOR BLADE SWING DIAMETER (MM)	ROTOR SPEED (RPM)
DYSSQ- 600	600*500	18.5	23	4	Ф200	74
DYSSQ- 1000	1000*850	45/55	69	6	Ф400	74

MODEL	FEED MOUTH SIZE (MM)	MAIN MOTOR POWER (KW)	MOVING KNIFE QUANTITY (PIS)	FIXED KNIFE QUANTITY (PIS)	ROTOR DIAMETER (MM)	OUT PUT (KG/H)
DYPS-Z 800	800*800	45-75	6/10	4/6	Ф600	600
DYPS-Z 1000	1000*1000	75-110	10/14	4/6	Ф700	800
DYPS-Z 1200	1200*1200	90-132	10/14/18	4/6	Ф800	1000
DYPS-Z 1500	1500*1200	160-200	14/18	4/6	Ф1000	1200

Model	Feed Mouth Size (mm)	Main Motor Power (KW)	Moving Knife Quantity (PIS)	Fixed Knife Quantity (PIS)	Rotor Diameter (MM)	Out put (Kg/h)
DYPS- 450	450*350	11	6	2	Ф300	200
DYPS- 560	560*400	15	6	2	Ф400	300
DYPS-700	700*700	37	6	4	Ф500	400
DYPS-800	800*800	45	6	4	Ф600	500

Company Profile
Jwell was founded in 1997, China Plastics Machinery Industry Association vice president unit, plastic extrusion equipment, chemical fiber spinning complete sets of equipment manufacturers. The production bases of Jwell company cover about 7,000,000 square meters and are consisted with 7 parts, which are located in Jiading district of Shanghai where the head office of the company locates, Haining and Zhoushan City of Zhejiang Province, Taicang City and Liyang City of Jiangsu Province, Foshan City of Guangdong Province and Thailand. The company has 26 professional companies and nine large-scale gold processing plants and three heat treatment nitriding plants, with an annual output of 3000+ sets of high-grade plastic extrusion production lines and other complete sets of equipment, marketing in more than 120 countries and regions.
Jwell has a high-quality team and an experienced team of mechanical and Electrical Commissioning Engineers, as well as an advanced machining base and Standard Assembly Workshop.
Our Advantages
Workshop Processing
Quality Control
Global Service and Training
Packaging & Shipping
Certifications
Exhibitions
FAQ
Q1. What about the payment way?
A1. By TT, L/C at sight. 30% down payment should be paid after contract is valid, 70% balance should be paid before shipment.
Q2. Installation and stuff training available from you?
A2. Yes, we have rich engineers around the world which can send to your factory and train your workers. Also we can online guide your members.
Q3. How long is the guarantee?
A3. We offer you high quality machines with 12 months guarantee and reply you as soon as possible within 6 hours.
Q4. If the machine some parts is broken one day, how can we get help from you?
A4. We will send you spare parts free of charge If they are in warranty, not including easy-broken parts. For easy-broken parts, we will only charge a cost fee.
Q5.How does your factory do regarding quality control?
A5.We have passed the IS09001:2000 Quality Management System and CE certificate and we have a special QC department in charge of products' quality. If you also need other certificates, we also can help to apply.
Q6. What is your packaging?
A6. Our conventional packaging is: After doing the anti-rust treatment, wrap the plastic film around the machine and then fix the machine on the wooden bracket.
Q7. How can we check the machines before delivery?
A7. We can provide online checking when testing the machine on site. We will take and prepare detailed testing videos for your checking before the delivery. We accept third-party testing. Except above points,we will provide detailed testing report.
