Product Description

Product Description

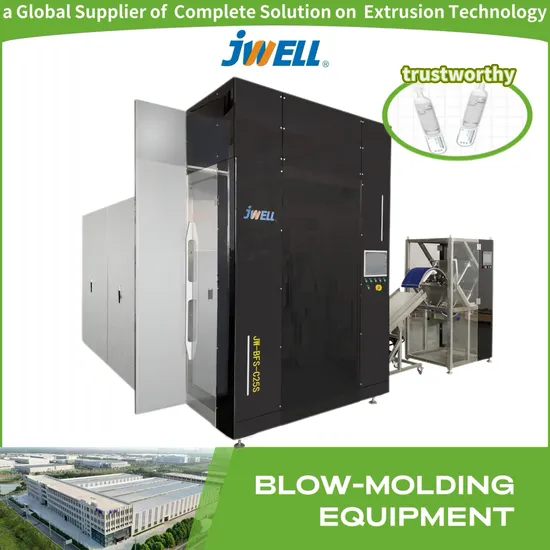

JWELL-Blowing-Filling-Sealing (BFS) System Blowing-Filling-Sealing (BFS) Machine adopts a spe-cialized packaging free technology, continuous opera-tion, to make medical polyethylene (PE) or polypropyl-ene (PP) particles into containers, fully automatic fillingand sealing process, and fast continuous cycle production. lt integrates several drug production processes intothe same equipment to complete the rectification, blowmolding, filling, and sealing of plastic containers in asingle sterile state, effectively ensuring the safety ofdrug use. This equipment has the advantages of lowproduction and management costs, good aseptic stabil-ity, high intemal quality of the finished product, and lowcross contamination rate of the product. It can be widelyused in the pharmaceutical industry such as eye drops,aerosols, inhalers,injections, disinfectants, and largeinfusion, It is also used for aseptic packaging plasticcontainers in the food and chemical industries.
Extruding
The screw extrudes the plasticized particles continuously through the mold end toform the tube embryo. The tube embryo is supported by sterile air. The tempera-ture of plastic melted and extruded is 170~220 degrees.
BlowingThe mould is quickly moved to the bottle blowing/filing station after theextrudingstation. The bottle blowing, filling and sealing stations are protected in the A-classair shower device. The plastic material is formed into a container through vacuumand/or sterile compressed airin the shape of mold.
Filling
Through the time pressure valve, the liquid is filled into the container and sterile air isdischarged. The pipeline can be ClP and SlP shall before filing, ensures safety of medi-cine.
Sealing
Through the time pressure valve, the liquid is filled into the container and sterile air isdischarged. The pipeline can be ClP and SlP shall before filing, ensures safety of medi-cine.
Outfeeding
After sealing,the mould is opened, bottles have been fommed, filled and sealed aresent out ofthe machine fortrimming.
Product photos
Large capacity products: Mainly used for intravenous injections, disinfectants, cleaning agents, large infusionproducts, et.., with a filing volume range of 50ml-1L, and the production depends on the filing volume and thenumberof mold cavities.
Small capacity products: vainly used for small volume injections, eye drops, ear drops, aerosols, inhalers.anesthetics, cosmetics, and food products, with a filing volume range of 0.1m1-20m. The production dependson the filling volume and the number of mold cavities.
Performance and advantages
This equipment has the advantages of lowproduction and management costs, good aseptic stabil-ity, high internal quality of the finished product, and lowcross contamination rate of the product.
lt can be widelyused in the pharmaceutical industry such as eye drops,aerosols, inhalers, injections, disinfectants, and largeinfusion, lt is also used for aseptic packaging plasticcontainers in the food and chemical industries. Technical parameters
Small capacity products

Technical parameters
Tple	JW-BFS-C15S-I/II	JW-BFS-C25S-I/II	JW-BFS-C40S-I/II	JW-BFS-C60S-I/II
(ml) Max.capacity	2ml 10ml	2ml 10ml	2ml 10ml	2ml 10ml
Mould Cavity	15 10	25 15	40 25	60 40
(mm)Max.container width	10mm 15mm	10mm 15mm	10mm 15mm	10mm 15mm
Output/hour l-Single Mould	6000(9s)4000(9s) 6750(8s)4500(8s)	10000(9s)6000(9s) 11250(8s)6750(8s)	16000(9s)10000(9s) 18000(8s)11250(8s)	21600(10s)14400(10s) 24000(9s)16000(9s)
Output/hour ll-Double Mould	12000(9s)8000(9s) 13500(8s)9000(8s)	20000(9s)12000(9s) 22500(8s)13500(8s)	32000(9s)20000(9s) 36000(8s)22500(8s)	43200(10s)28800(10s) 48000(9s)32000(9s)

Large capacity products

Technical parameters
Machine Type	JW-BFS-C15S-I/II	JW-BFS-C25S-I/II	JW-BFS-C40S-I/II	JW-BFS-C60S-I/II
(ml) Max.capacity	2ml 10ml	2ml 10ml	2ml 10ml	2ml 10ml
Mould Cavity	15 10	25 15	40 25	60 40
(mm)Max.container width	10mm 15mm	10mm 15mm	10mm 15mm	10mm 15mm
Output/hour	6000(9s)4000(9s) 6750(8s)4500(8s)	10000(9s)6000(9s) 11250(8s)6750(8s)	16000(9s)10000(9s) 18000(8s)11250(8s)	21600(10s)14400(10s) 24000(9s)16000(9s)

packaging&Shipping
In order to ensure the integrity of the goods in long-distance transportation, to avoid damage to the goods in sea transportation and corrosion of the sea water to the goods, to avoid damage in the process of freight transportation, we use the outer package-wooden box and the inner package-plastic wrap packaging to ensure the safety of the goods.If you have special needs, you can also tell us, we will do our best to do and let you rest assured
