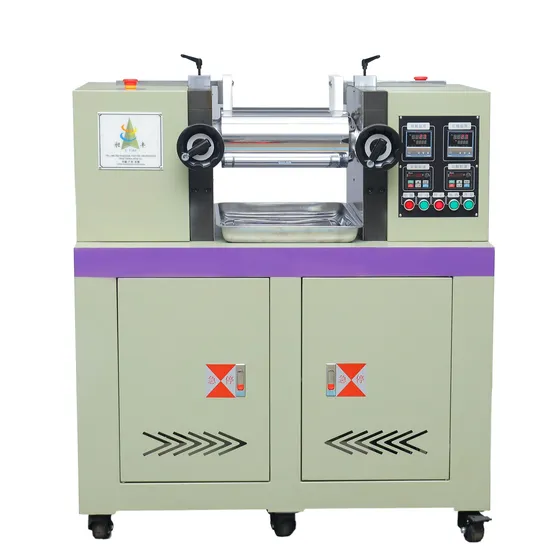

Factory Custom Manufacturing CF-6/9inch Two Roll Open Mixer Rubber Mixing Mill

Factory Custom Manufacturing CF-6/9inch Two Roll Open Mixer Rubber Mixing Mill

US$7,500.00-10,200.00 1 Piece (MOQ)

Basic Info.

Model NO.
CFine-9inch
Control Type
PLC
Automatic Grade
Automatic
Power Source
Electric
Type
Open Mixing Mill
Keyword
9inch Two Roll Rubber Open Mill
Power
7.5 Kw
Roller Specification
210*600 mm
Front Roll Line Speed
16.96 R/Min
Speed Ratio (Adjustable)
1:1.29
Overall Weight
1200 Kg
Transport Package
Standard Packing
Specification
1500* 1600* 2400mm
Trademark
CFine
Origin
China

Packaging & Delivery

Package Size
160.00cm * 170.00cm * 250.00cm
Package Gross Weight
1350.000kg

Product Description

1. This experimental type open mixer mill is suitable for the mixing and dispersing of engineering plastics, pigment masterbatch, silicone rubber and other polymers; 2. The double rollers are mirror-chromed with electric heating and water cooling, the surface temperature of the roller is uniform; 3. The space between the two rollers is adjustable; 4. Multi-directional Safety protection device make it safe and reliable, durable.
CF open mill Model CF-120
4 inch
CF-160
6 inch
CF-200
9 inch
CF-300
12 inch
CF-360
14 inch
Materials/Process Max feeding quantity (KG/Batch)
(Capacity depending on formula materials)
All Rubber/plastic 0.5-0.8 kg 4 kg 12 kg 15 kg 30 kg
*All production rates should be factory verified.
CF open mill Model CF-120
4 inch
CF-160
6 inch
CF-200
9 inch
CF-300
12 inch
CF-360
14 inch
Power kW 3.7 5.5 7.5 30 37
Roller specification mm 120*320 160*350 210*600 300*700 360*900
Front roll line speed r/Min 7.5 10 16.96 16.3 16.22
Maximum Roll Distance mm 0-5 0-5 0-10 0-10 10
Speed ratio adjustable 1:1.24 1:1.24 1:1.29 1:1.29 1:1.29
Overall weight kg 800 1000 1200 2500 6500
Length mm 1000 1100 1500 2745 3700
Width mm 560 550 1600 1275 1425
Height mm 1150 1200 2400 1657 1870
*All production rates should be factory verified.

After-sales service In-sale:
Strict implementation of the production schedule, real-time reporting on production progress, so that customers can understand the latest progress.
After-sales:
1. One year warranty under the condition of correct operation of the unit, and ensure the supply of spare parts.
2. Before shipment, we are responsible for the installation and debugging of the equipment, and shoot a video for customers to confirm.
3. After shipment, provide English (or local language) operation manual and installation video of the equipment.
4. Provide video safety operation training for equipment personnel.
5. 24-hour online answer to solve problems.
6. In case of special circumstances, we can provide engineers to visit the site, the specific cost and time agreed by both parties.
Guangdong CFine Technology Co., Ltd. was established in 2013, is a manufacturer that specialized in designing, R&D, manufacturing, selling and maintain the plastic, rubber, powder metallurgy mixing and granulating equipments. The company has a unique courtyard, covering an area of 12000 square meters, a building area of 10000 square meters, and a team of nearly 100 people. We have very professional R&D team to meet the special requirements of customers, to custom-made the machine. We have strong technical strength, full range of advanced equipments and well -trained manufacturing team, together with modern management mode, convenient and swift after-sale service, thus our machines are sold more than 100 countries, obtained accordant appreciation by the clients and we had established long-term and stable relationships of cooperation. Quality first,service uppermost is our guideline. Honesty and integrity, innovation contribution is our principle. C Fine is becoming the most professional and influential manufacturer in this industry, C Fine brand is most popular in China, and also available to the world in the near future!
