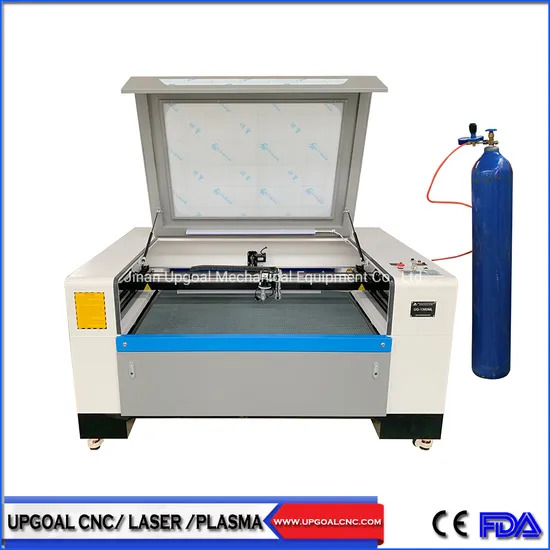

Economic Metal and Non-Metal CO2 Laser Cutting Engraving Machine with CCD & Rotary Axis

Product Description

Economic Metal and Non-Metal Co2 Laser Cutting Engraving Machine with CCD & Rotary Axis
Features
1. Machine with RUIDA CCD Camera auto positioning, can do visual positioning, trademark cutting, image analysis. support feature recognition position positioning and MARK point auxiliary position positioning function, improves the working efficiency.
Multi-graphic positioning and cutting at any angle, automatic identification of defective products, can achieve the effect of cutting along the edge, no yellow, no black, no burn, multiple graphics positioning and cutting at the same time

2.Welding machine bed with quenching treatment to remove away the stress .Milled by Large precision gantry milling machine ensured the accuracy.
3.Equipped with dual economic metal&non-metal cutting head. Stainless steel, carbon steel, acrylic and wood can be cut.
Laser head A1: with Reci W6 130W Co2 laser tube, mainly used for thin 1.2mm thickness stainless steel/steel cutting & thick non-metal cutting, laser head A2: with Reci W2 90W Co2 laser tube, used for non-metal precision engraving

4. Adopting imported focus lens with high luminous and mirror with high relativity ensure stable power transference and laser beam consistency.

5. Working Table: double working table and auto lifting table
Honey Comb Table: applicable to various soft materials with Good adsorption effect and low reflection ratio.
Knife Strips: With oxidation treatment and low reflection ratio ensured cutting quality
Auto Lifting Table:Maximum Loading 50kgs with 200mm up-down distance.
6.Motion System: Imported High precision, low friction force and stand wear and CSK Taiwan linear square guide rail and blocks with 3M belt ensured stable transmission, lower noise
6.Motion System: Imported High precision, low friction force and stand wear and CSK Taiwan linear square guide rail and blocks with 3M belt ensured stable transmission, lower noise.
7.With advanced embedded RuiDa RDV6445G(EC) real-time economic metal & non metal CCD laser cutting engraving control system, running faster, laser intensity and speed automatic matching, perfectly realized the consistency of the corner cutting effect high strength cutting table, applicable for metal and non-metal cutting.
8.Rationalized placement of the electronic parts. Optimized heat dissipation effect. Ensured system stability and anti jamming capability.

9. Teyu S&A Industrial water chiller CW-5202 for dual head is equipped to ensure the machine can work last long time.
10. Air filter with 5 layers filtration, during the laser engraving cutting machine using, can filtering a mass of gas & smoke which are harmful to human health when engraving & cutting processing materials. Has the feature of low noise, flexible using, and cover small area.

11. Roller type for cylinder engraving, no dimaeter limitation, sepcially for goblet engraving

Technical Parameters

Effective working area of each head	1150*900mm
Laser Type	Co2 sealed-off laser tube
Laser tube power	A1: Reci W6 130W A2: Reci W2 90W
Working table	Honey comb and knife strip double working table
Lifting table	Automatically up and down 200mm
Focusing	Auto
Driver mode	3 phases stepper motor and Driver, Yako brand
Guide rail	Linear square guide rail ( CSK,Taiwan)
Transmission	Belt transmission
Control panel	English
Laser output control	1-100% software setting
Engraving speed	0-60000mm/min
Cutting speed	0-10000mm/min
Control system	RuiDa RDV6445G small vision laser cutting engraving control system
CCD camera	RuIDa SV300, USB port
Design software when delivery	CorelDraw
Control panel	DSP offline
Resolution accuracy	< 0.01mm
Location precision	< 0.01mm
Highest scanning accuracy	2500DPI
Type of cooling	Industrial chiller CW-5202( S&A) cooling
Water protection system	Yes
Focus	Auto focus
Blow-off system	Air pump and air blower
Working temperature	0-45 °C
Operating humidity	5-95% (without condensed water)
Supporting picture format	PLT,DST,DXF,BMP, DWG,AI,LAS,etc
Voltage	AC 220V/110V, 50/60Hz, single phase
Certificate	CE/FDA

Applications
Applied to a certain of metal and non-metal materials Professional engraving/cutting such as stainless steel,carbon steel,wood,organic glass,plastic, cloth.
Widely used in the industry of Advertising, craft gift, shose, toys, garment, model, construction, package, paper and computerized embroidery &lipping.
Reference Sample Photos
Reference Working Videos
https://youtu.be/WXqUfqnLhs4

For more information, just feel free to contact us!
