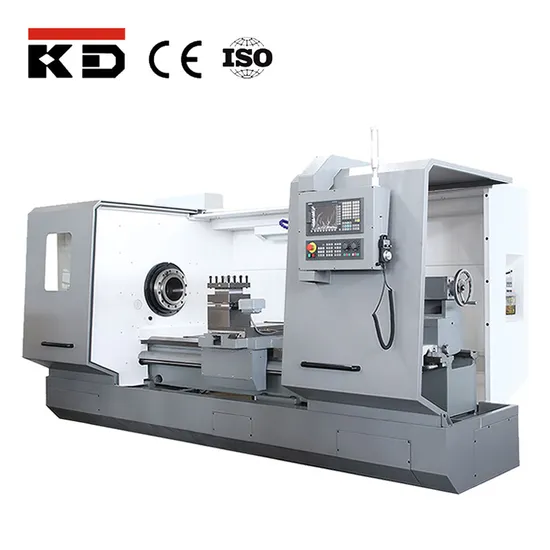

Kd Electric Horizontal CNC Pipe Thread Lathe
| US$3,000.00-50,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
CKG-200
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Spindle Bore
210mm
Outer Dia.of Turning Pipe
50-200mm
Max Swing Over Bed
900mm
Width of Bed
560mm
Tool Post
4 Way ,6 Way Is Optional
Main Motor
18.5kw
Steps of Spindle
4 Steps
Transport Package
Wooden Pallets(Ht)
Specification
CE, ISO9001, SGS
Trademark
KD
Origin
Zhejiang China
HS Code
8458110000
Production Capacity
180 Sets/ Year
Product Description
ITEMS | CKG200 |
Max. swing over bed | Ø 900mm |
Max. swing over carriage | Ø 560mm |
Width of bed | 560mm |
Maximum turned length | 2000/3000mm |
Max. turning length | 1800/2800mm |
Spindle nose | Ø 50- Ø 200 mm |
Spindle bore | A2-15 |
Cone hole diameter and taper of spindle hole | Ø 210mm |
Steps of spindle speed(Manual) | 4(VariableWithin Each Step) |
Range of spindle speed | 10~60 20~115 35~205 65~380 rpm |
Rapid feed for Axis X | 5m /min |
Rapid feed for Axis Z | 10m /min |
Max. travel of Axis X | 500mm |
Max. travel of Axis Z | 1850/2850mm |
Min. input | 0.001mm |
Tool post stations | 4 station |
Tool cross section | 40× 40 mm |
External diameter | Ø 100mm |
Taper of bore | MT. No. 6 |
Max. Traverse | 230mm |
Power of main motor | 18.5 KW |
Power of cooling pump | 370W |
Overall dimensions(L× W× H) | 4560/5560x1918x1860 |
Net weight | 4100/4600kg |
