Henan Shilong Automatic Jumbo Roll Crescent Toilet Paper Napkin Making Machine

Product Description

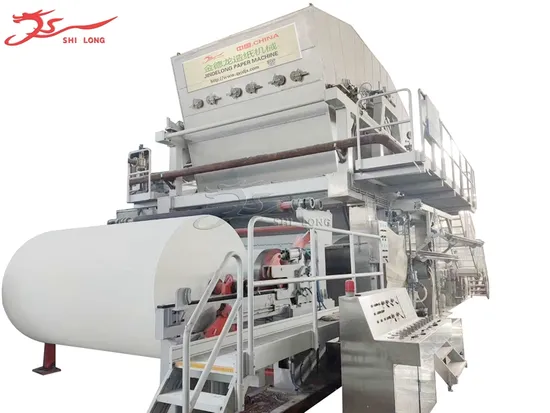

Crescent Toilet Paper Making Machine
Product Description This production line is mainly consisted of paper pulping system and Jumbo tissue roll making machine. 1.The pulping system is a process in which raw materials, such as waste books, paper, edge bleaching straw pulp board, bleaching wood pulp board, etc., are processed into fibrous water suspension which meets the requirements of paper making, and then sent to the paper machine by the flow system to meet the requirements of users.
2.Paper machine is to meet the paper making requirements of the pulp water suspension by the filter dehydration forming,mechanical extrusion dehydration and drying process then making into paper. The use of raw materials are: waste paper, old newspaper and white waste paper edges and so on. It can produce toilet paper, facial tissue paper, napkin paper, drawing paper and so on. The machine with reliable quality, stable performance, easy operation, energy saving and environmental protection, paper making machine is the ideal product in machinery fiel. Product Parameters

Product name	SL-Crescent jumbo roll toilet paper making machine
Raw material	Wood pulp,waste paper
Finished products	Toilet paper
Paper width	2850mm
Paper weight	13-30g
Working speed	550-650m/min
Transmission mode	Reducer drive
Design speed	800m/min
Yield	25-30t/d

Drawing of crescent toilet paper machine
Toilet Paper Machine Structure:
1.Headbox Department1) Disperse the paper material and evenly distribute it on the Internet;2) Provide a stable spraying speed head suitable for the network speed;3) Eliminate the paper pressure pulse caused by the pulp supply system.
2. Net Department
The net part uses crescent dehydration forming to quickly remove the water tank. It is mainly composed of forming roller, net
guide roller, water spray pipe, water receiving tray, net frame, etc.
3. Yankee dryer
It includes all parts wrapped by Yankee dryer, Yankee hood, Yankee scraper, cylinder surface spraying device, paper guide roller and blanket except forming roller. 4. Winding part
Roller type horizontal pneumatic coiler is adopted. It is mainly composed of paper winding cylinder, paper winding main arm,auxiliary arm and its transmission device, scraper, automatic winding device and buffer braking device. Product Process
Company Profile
Certifications
Packaging & Shipping
1. How long is your warranty?--All our products will have one year guarantee and we will continue to offer advice and spare parts after this period.Within 1 year after receiving our machines, under right operation and non-artificial reasons, If there are any damaged parts or accessories, we will replace them by air-mail or express immediately free of charge.After 1 year warranty, Spare parts and damaged parts will be charged at cost price. If there is something wrong with the machine, we are responsible to solve this problem soonest, and help customers to restore production as soon as possible.2. Can you make paper mill design for us?--Yes, we have professional team with rich experience of paper mill design by CAD software. You only need to tell us your open land dimension, we will make your future paper mill design.3. What's the payment terms?--30% initial payment when place your order, 70% balance payment before shipment.4. How about your machine quality, we are worry about the quality.--Shilong is a mature brand in china, 30 years manufacturing experience of different kinds of paper machines. We strictly manufacture and manage according to IOS9001:2008 System. And can match all the CE standard or more strict standard. Our paper machine is running well in more than 20 countries.
5. Could your engineer teach and train our worker and stay in our factory for long time?--Yes, we will send rich practiced experience engineers to your country to install and test the machine and train your workers, but you should pay them salary.
