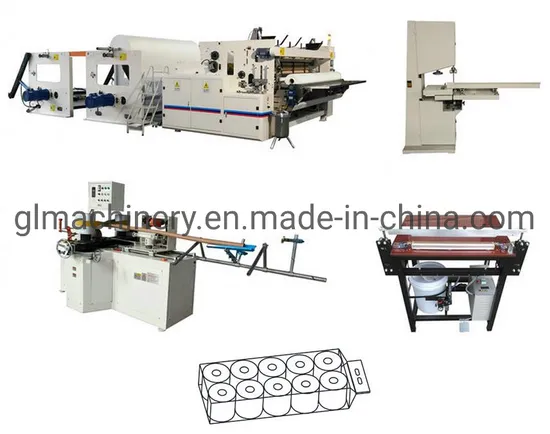

Small Toilet Paper Roll Rewinder Making Machine

Product Description

Automatic trimming and perforating toilet paper rewinder machine
PRODUCTION DESCRIPTION
Automatic electronic brake,sample,high efficiency,sealing and trimming,PLC,frenquency control,independent operation,adjustable.
Specifications
1 .Paper grades: toilet paper, facial tissue, paper napkin
2. Grammage: 13-30g/m3
3. Working speed:0-200m/min

Model	1575	1760	1880	2500	2800
Raw paper width	1575mm	2000mm	2100mm	2400mm	2850mm
Raw paper diameter	Φ1100mm(other specification can be appointed)
Raw paper core diameter	Φ76.2mm(other specification can be appointed)
Parameter setting	HMI
Programming control	PLC
Embossing	no embossing, single embossing, double embossing, steel to steel embossing(to be ordered)
Embossing bottom roller	felted roller, woolen roller, rubber roller, steel roller(to be ordered)
Maximum speed	180m/min
Final product diameter	90mm-135mm (other specification can be appointed)
Punching	Helix knife 2p punching
Finished product OD	25-50mm
Power	4KW-15KW
Side pressing	independent pneumatic(additional order)
Unreeling	1-3 layers

OUR SERVICE
Greatland has professional technical team for installation, commissioning, and related services, also has a very wholesome file system, contacts with the user regularly. Greatland will try best to solve the problems from the customer.
Within the quality guarantee, Greatland settle the problems on site.
ABOUT US
GLM was founded in 2010, and is an integrated company dedicated to the pulp and paper industry associated with planning, design, research, development, producing, delivery, testing and training. Besides, GLM was funded by the Pulp and Paper Design Institute, Pulp Equipment Mill and Paper-making Machinery Company, and in turn gathers together talents from each part. Furthermore, an impressive result has been achieved in recent years.
F&Q
Q.:Are you a factory or trading company?
A.: We are a factory and manufacturer.
Q.:How does your factory do regarding quality control?
A.:We pay much attention on quality controlling from very beginning to the very end. Fully check and test takes before shipment.
Q.:Where is your factory located? How can I visit there?
A.:Our factory located at Shandong, China.You can fly to QINGDAO international airport directly. We will arrange to pick you up.
Q.:What's service or guarantee can you offer?
A.: One year guarantee for key parts of machine, Machine installing and worker training service, free technical support whole life.
