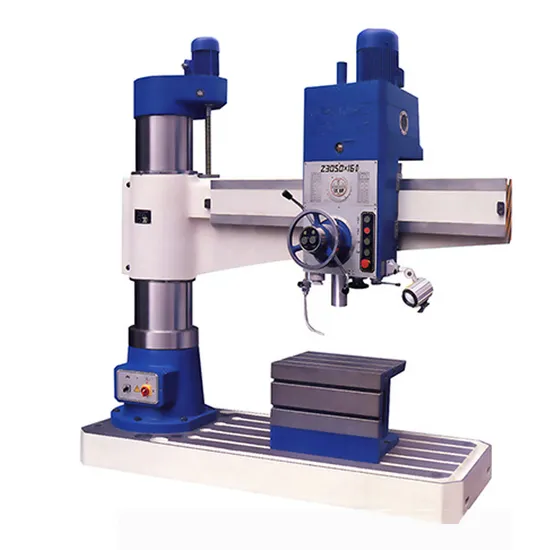

China Hydraulic Type Vertical Arm Radial Drilling Machine
| US$8,550.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Z3040X16/1
Usage
Kitchen Knife, Hunting Knife
Brand
Stanley
Folding
Folded
Color
Colored
Condition
New
Max. Drilling Capacity
50mm
Distance Spindle Axis to Column Generati
350-1600mm
Diameter of Column
350mm
Spindle Taper
Mt5
Spindle Travel
315mm
Spindle Speeds Range
25-2000mm
Spindle Speeds Series
16
Range of Spindle Feeds
0.04-3.2r/Min
Spindle Feeds
16
Power of Main Moto
4kw
Transport Package
Plyw/Case; Fumigated Wooden Case
Specification
CE, ISO9001
Trademark
UNI-TECH
Origin
China
HS Code
84592900
Production Capacity
200sets/Month
Product Description
Radial Drilling Machine Tool (Z3040X16/1,Z3050X16/1)Main features:
1. With wide range of speed and feed, with manual, power and fine feeds. The feed of machines are very easily engaged and disengaged at any time.
2. With safe and reliable feed safety machine, all parts easy operation and change.
3. All controls centralized on the head stock easy operation and change. Clamping for assemblies and speed change of spindle achiered by hydrandic power, cmle is sensitna owet nelile.
4. Main parts are made by machine center which import form KIA with high precision and efficiency, ensuring reliability and high quality.
5. Interating technology for casting parts is excellent, adopting casting equipment, ensuring high quality of materia for basic parts.
6. Spindle parts are made by special high quality steel heat treatment to be made by first class equipments, wnsuring high strength and durablity.
7. Main gears are machined by gear grinding, the machine ensuring high precision and low noise.
Standard accessories
* Box shape worktable
* Taper sleeve
* Tool releasing Wrench
* Drift
* Eyelet bolts
Special accessories
* Quick instead chuck
* Tapping chuck
* Grease gun
Main specifications:
| Model CODE NO. | Z3040X16/1 | Z3050X16/1 |
| Max.Drilling capacity (mm) | 40 | 50 |
| Distance spindle axis to column generating line (mm) | 350-1600 | 350-1600 |
| Diameter of column (mm) | 350 | 350 |
| Spindle taper | MT4 | MT5 |
| Spindle travel (mm) | 315 | 315 |
| Spindle speeds range (r/min) | 25-2000 | 25-2000 |
| Spindle speeds series | 16 | 16 |
| Range of Spindle feeds (r/min) | 0.04-3.2 | 0.04-3.2 |
| Spindle feeds | 16 | 16 |
| Max.Distance spindle nose to working surface of base (mm) | 350-1250 | 320-1220 |
| Dimension of worktable (mm) | 630×500×500 | 630×500×500 |
| Dimension of base (mm) | 2400×1000×200 | 2400×1000×200 |
| Overall Size (mm) | 2500×1060×2650 | 2500×1060×2650 |
| Power of Main motor (KW) | 3 | 4 |
| G.W/N.W (kg) | 4500/3500 | 4300/3500 |
| Packing dimension (cm) | 270×112×258 | 270×112×258 |
