Sheet Metal Duct Tdf Flange Forming Machine / Flange Making Machine

Product Description

sheet metal duct tdf flange forming machine / flange making machine
YOUTUBE VIDEO:
https://youtu.be/r4AwxGmLwYY

Product Description:

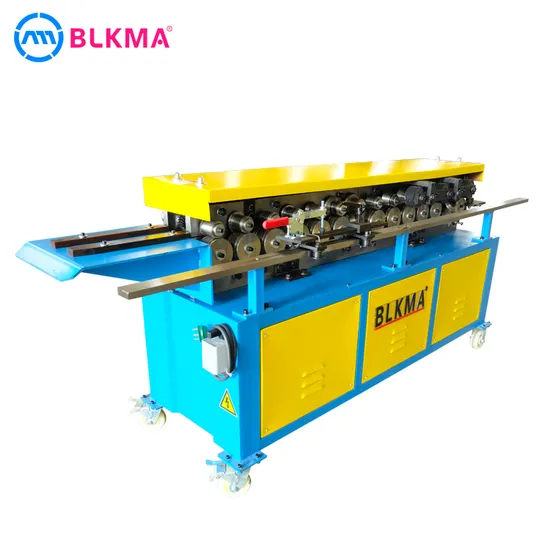

TDF flange forming machine has two sides, one side is to make flange shape, another side is to make clip shape. Besides, we also can customize both sides to make flange shape. Flange height usually is 35±0.5mm, but 20,25,30mm also can be customized. This machine is very easy operated on site and in factory. Standard machine T-12 can make max 1.2mm thickness galvanized sheet and max 0.7mm stainless steel, T-15 can make max 1.5mm thickness galvanized sheet and max 1.0mm stainless steel. Usually it's enough for air duct flange making, but if you have any other requirement, we have professional engineer who can help you.
Main Technical Parameters:

Model	Thickness of plate (mm)	Shape	Flange height	Weight (kg)	Power (kw)	Dimension (mm)
T-12	0.5~1.2		35±0.5 mm	840	3	2550*700*1100
T-15	0.8~1.5

Detailed Images:
FAQ:
1. Are you manufacturer or trading company?
We are manufacturer.
2. What shall we do if don't know how to operate your machine?
We can dispatch our engineers to your country and you can also send your engineers to our
factory for learning operation. Besides, there are detailed installation and operating instructions
attached, it is very simple. We have telephone and email support at 24 hours per day.
3. What are your payment terms?
We support T/T, L/C, D/P, D/A, Western Union and so on. TT, 30% in advance, 70% balance
before the shipment.
4. OEM is available?
Yes.
5. What's your package?
There're two package methods. One method is that machines will be fixed directly in a whole
container without wooden box when total machines dimensions need a container, in this
situation, machines will be transported by FCL (full container load). Another method is that
machines will be packaged with wooden box when total machines dimensions are small which
does not need a whole container, in this situation, machines will be transported by LCL (less
than container load).
Both of these two package methods are safe.
